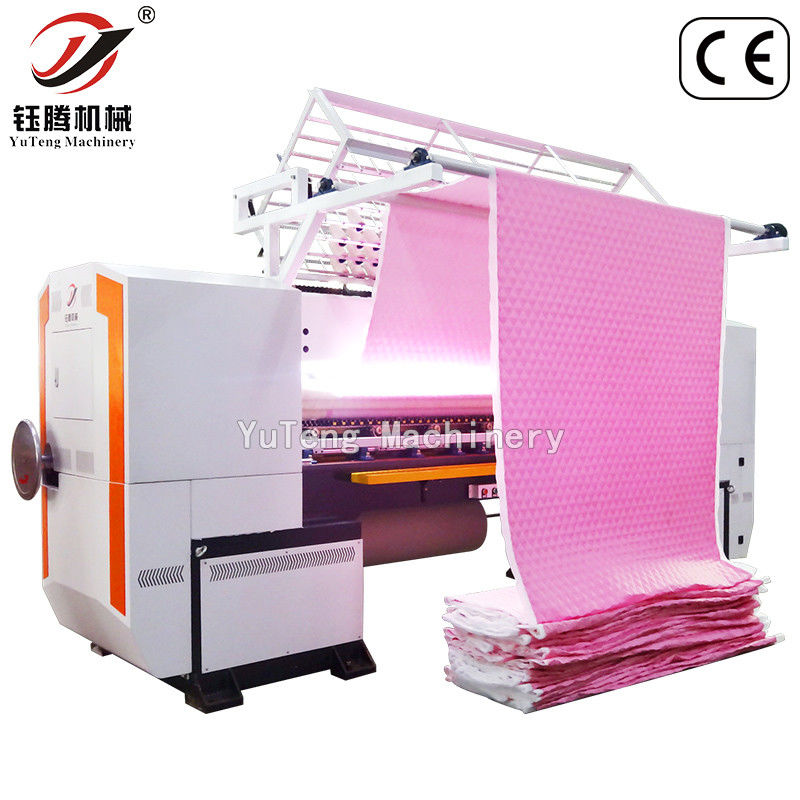

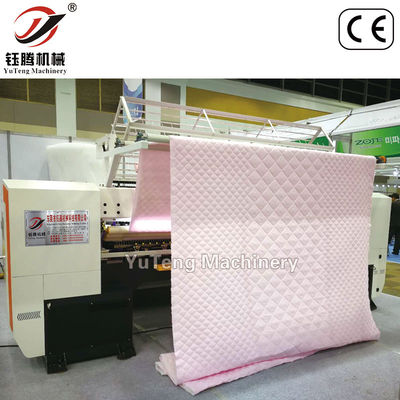

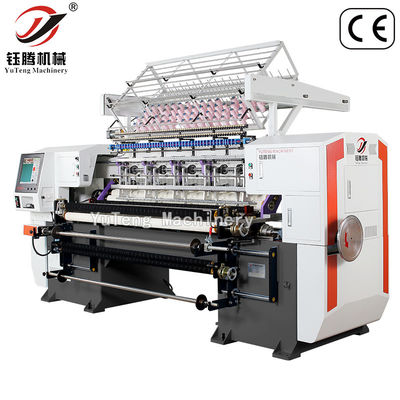

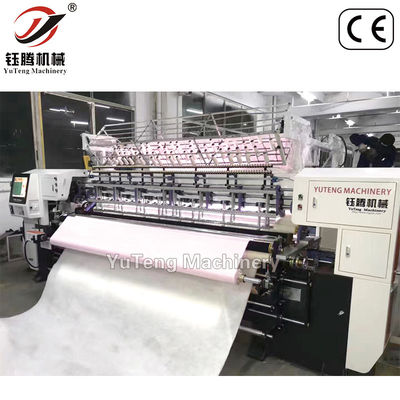

PLC Computerised Lock Stitch Quilting Machine For Bed Sheet Making
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needles | Moving Style: | Frame Moved |
| Voltage: | 380V/50HZ,220V/60HZ,3P | Dimension(L*W*H): | 3800*1200*1300(mm) |
| Warranty: | 1 Year | Bobbin Shuttle: | 7#,10# |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Viet Nam, South Korea |
| After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Port: | Shengzhen/Guangzhou |
| Highlight: | Computerised Lock Stitch Quilting Machine,Bed Sheet Lock Stitch Quilting Machine,PLC Computerised Quilting Machine |
||
Product Description
Lock Stitch Quilting Machine Computerized Multi Needle Sewing Machine Bed Sheet Making Machine
Thread Tension Adjustment: These machines often include a thread tension adjustment function that allows users to ensure the lock stitch is formed correctly, preventing puckering or loose stitches.
Speed Control: Most lock stitch quilting machines feature a speed control setting, allowing the user to adjust the stitching speed based on the project's requirements or their comfort level.
| Technical parameters | |||
| Model | YGC64-2-3 | YGC76-2-3 | YGC96-2-3 |
| Dimension(L*W*H) | 3800*1200*1800(mm) | 4300*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 1650mm | 2000mm | 2450mm |
| Needle rows | 2 | 2 | 2 |
| Space between needle rows | 76.2mm | 76.2mm | 76.2mm |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 228.6mm | 228.6mm | 228.6mm |
| Thickness of quilting | 25mm | 25mm | 25mm |
| Stitch length | 2-8mm | 2-8mm | 2-8mm |
| Speed of operation(m/hour) | 20-160 | 20-160 | 20-160 |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |
| shuttle model | 7# or 10# | 7# or10# | 7# or 10# |
| Quilting Speed(r/min) | 300-800 | 300-800 | 300-800 |
| Voltage(AC) | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P |
| Total power | 3.5KW | 3.5KW | 5.5KW |
| Gross weight | 3300KGS | 3500KGS | 4500KGS |
| * Can be customized according to customer requirements | |||
1,Computerized speed governing , max.800r/min.
2,Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3,Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4,Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
High-speed computerized multi-needle shuttle quilting machine,Is widely used for quilting high-quality garments, bedding covers, textile,shoes, cap, bags, gloves, sleeping bag, seat cover and wall decoration etc.
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
