Automatic Computerized Chain Stitch Quilting Machine For Mattress Comforters Blankets
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Width For Quilt: | 245cm | Thickness For Quilt: | 80mm |
| Speed: | 1200RPM | Port: | Shenzhen |
| High Light: | Comforters Computerized Chain Stitch Quilting Machine,Blankets Computerized Chain Stitch Quilting Machine,Automatic quilting mattress machine |
||
Product Description
Chain Stitch Multi needles Quilting Machine for Mattress Making YT-3200B
Technical Parameters
| Model | YT-3200B |
| Dimension(L*W*H) | 5300*1500*2100 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Gross weight | 5500kg |
Chain Stitch Multi needles Quilting Machine for Mattress Making YT-3200B
The main features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Purpose: High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3200B
is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

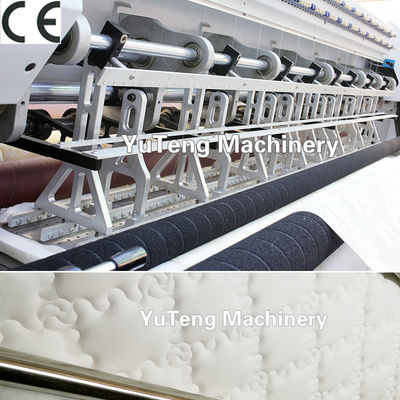

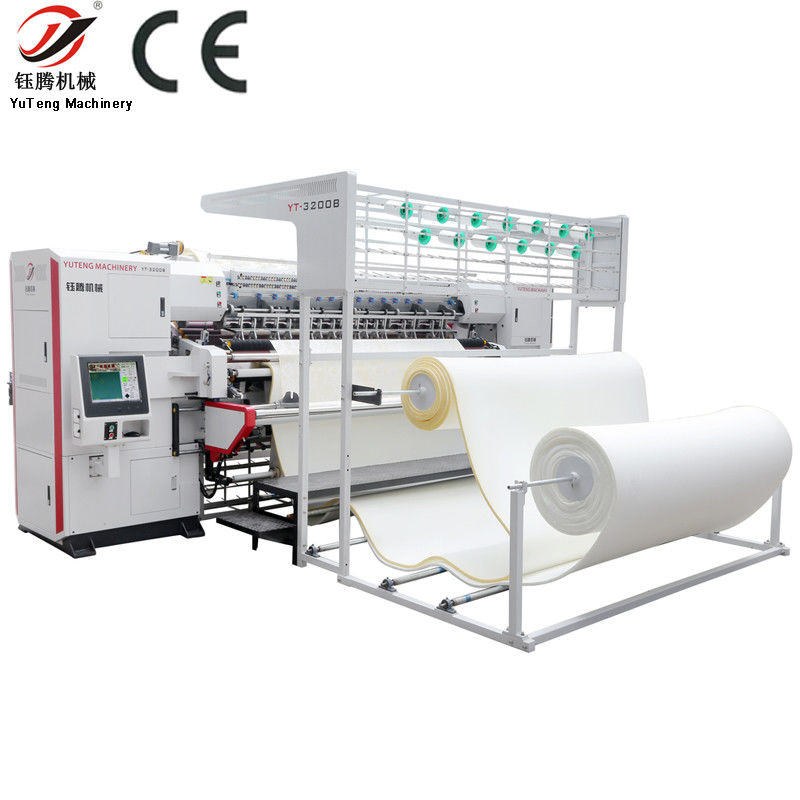

Picture of Automatic Mattress Foam Making Quilting Machine YT-3200B
This Quilting Machine can do quilt for mattress cover,comforters,winter quilt,blankets,medical pads...
