Comforter Lock Stitch Quilting Machine Computerized 3300mm Width
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
| Model Number: | YGB128-2-3 |
Payment & Shipping Terms:
| Price: | $40,000.00 - $50,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800r/min |
|---|---|---|---|
| Max Sewing Thickness: | 25mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V/220V |
| Power: | 7.5kw | Dimension(L*W*H): | 5700*1200*1800mm |
| Weight: | 5300kg | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Quilting Width: | 3300mm |
| The Number Of Needle Rows: | 2/3 | Space Between Needle Rows: | 3" |
| Space Between Needle: | 25.4mm | X-axis Movement Displacement: | 254mm |
| Stitch Length: | 2-6mm | Speed Of Operation: | 20-120m/hour |
| Model Of Needle: | 16# 19# | Port: | Shenzhen |
| Highlight: | Comforter Lock Stitch Quilting Machine,Lock Stitch Quilting Machine 3300mm,Computerized Comforter Quilting Machine |
||
Product Description

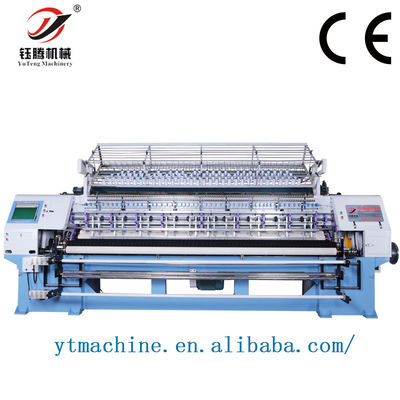

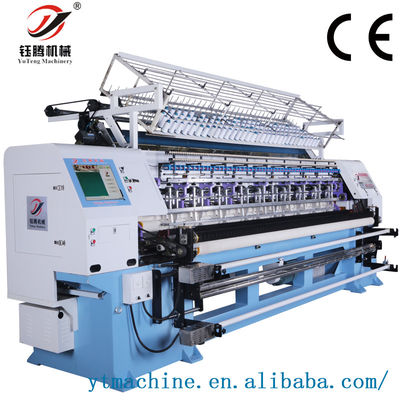

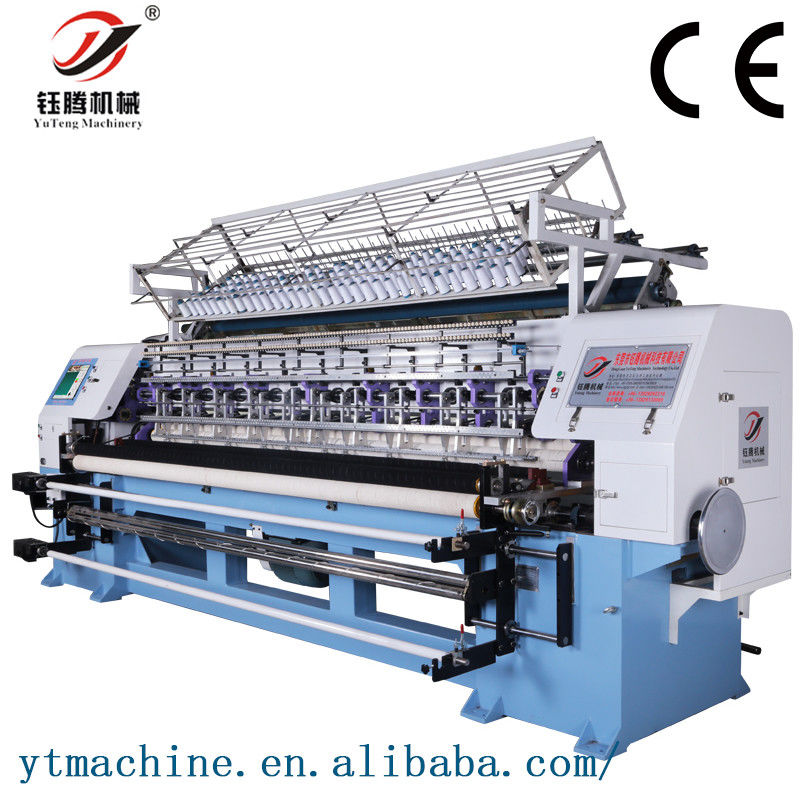

Lock Stitch Quilting Machine Comforter Multi Needle Quilting Machine Computerized Sewing Machine
Lock Stitch Quilting Machine Comforter Multi Needle Quilting Machine Computerized Sewing MachineA lock stitch quilting machine is a specialized sewing machine used in the quilting industry to create intricate and decorative stitching patterns on quilts, bedspreads, mattress covers, and other textile products. It is designed to handle multiple layers of fabric and batting, ensuring secure stitching and precise quilting designs.
| Technical parameters | |||
| Model | YGC64-2-3 | YGC76-2-3 | YGC96-2-3 |
| Dimension(L*W*H) | 3800*1200*1800(mm) | 4300*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 1650mm | 2000mm | 2450mm |
| Needle rows | 2 | 2 | 2 |
| Space between needle rows | 76.2mm | 76.2mm | 76.2mm |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 228.6mm | 228.6mm | 228.6mm |
| Thickness of quilting | 25mm | 25mm | 25mm |
| Stitch length | 2-8mm | 2-8mm | 2-8mm |
| Speed of operation(m/hour) | 20-160 | 20-160 | 20-160 |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |
| shuttle model | 7# or 10# | 7# or10# | 7# or 10# |
| Quilting Speed(r/min) | 300-800 | 300-800 | 300-800 |
| Voltage(AC) | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P | 380V/50HZ,220V/60HZ, 3P |
| Total power | 3.5KW | 3.5KW | 5.5KW |
| Gross weight | 3300KGS | 3500KGS | 4500KGS |
| * Can be customized according to customer requirements | |||
Product Main Features:
- Computerized speed governing, Max.800r/min.
- Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.

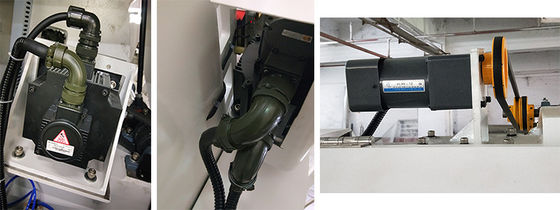

- Saddles and Rollers driven by Servo drive equipment,Spindle adopts frequency conversion control.
- Saddles using quilting machine with high rigidity design. The stand of fabric seprate from saddles, effectively reduce the operaing load of motor.
- Dual clutch device, to solve the synchronization problem of rollers in front and back.
- Using high-pricision and high rigidity imported screw mandrel.
- 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
- Automatic thread-break detection unit.
- Infrared sensor make sure more safety operation.
- The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate
Related products
NOTE:
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2.The normal packing is PE film packing , if customer ask wooden box is both ok, and the wooden box will be fumigated.
3.Sea port: shenzhen
4. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
5. Delivery Terms: FOB, CIF, CFR, etc.
