Computerized Multi Needle Quilt Making Machine High Speed For Sofa Cover
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Single Head | Moving Style: | Frame Moved |
| Voltage: | 380V/50HZ , 220V/50HZ | Power: | 5.5 |
| Dimension(L*W*H): | 4900mm*1200mm*1800mm | Weight: | 4300 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Multi Needle Quilt Making Machine,Computerized Quilt Making Machine,High Speed Quilt Making Machine |
||
Product Description
High Speed Computerized Multi Needle Quilting Machine Sofa Cover Making Machine Summer Quilt Making Machine
They are suitable for creating a variety of quilted items, ranging from small decorative quilts to large bedspreads. The lock stitch feature ensures a secure and durable stitch, making it ideal for quilting projects that require longevity and wear-resistance. These machines are particularly useful for individuals who do a lot of quilting, as they make the process more efficient and produce high-quality results.
Technical parameters :
| Model | YGB96-2-3 | YGB96-3-6 |
| Dimension(L*W*H) | 4900*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 2450mm | 2450mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3" | 3"+3" |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm |
| Thickness of quilting | 25mm | 25mm |
| Stitch length | 2-6mm | 2-6mm |
| Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
| Model of needle | 16#,19# | 16#,19# |
| Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) |
| Voltage(AC) | 380V/50HZ,220V/60HZ | 380V/50HZ,220V/60HZ |
| Total power | 5.5KW | 5.5KW |
| Gross weight | 4300kg | 4300kg |
Product main features :
1.Computerized speed governing , max.800r/min.
2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
6. Using high-precision and high rigidity Imported screw mandrel.
7. 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8. Automatic upper thread-break detection unit.
9. Infrared sensor make sure more safety operation.
10.The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :

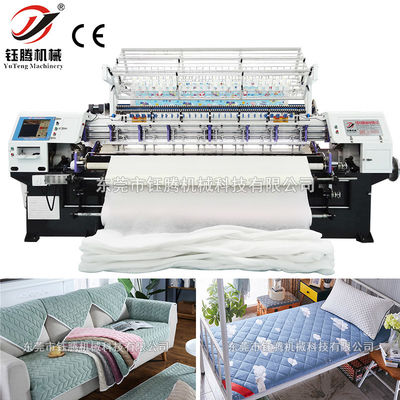

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

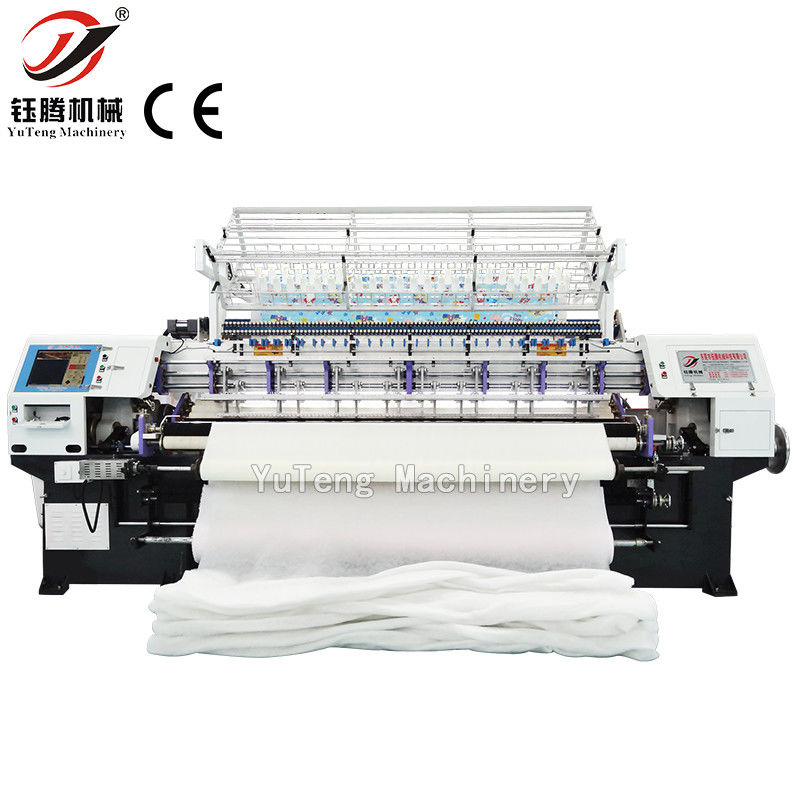

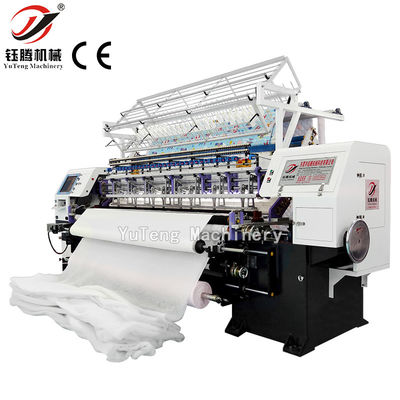

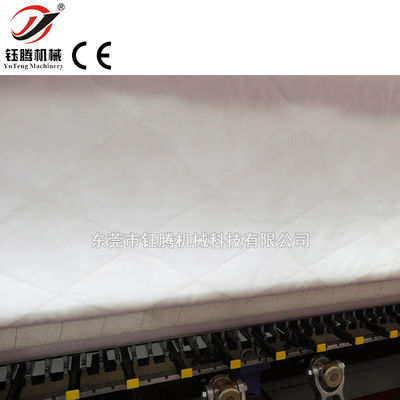

Quilting Machine Pictures :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
