Multi Needle High Speed Quilting Machine Computerized 245cm Width
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE ISO |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 1200RPM |
|---|---|---|---|
| Max Sewing Thickness: | 80mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V/220V |
| Power: | 8kw | Dimension(L*W*H): | 5.4X1.6X2.3M |
| Weight: | 5300KG | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Width For Quilt: | 245cm |
| Thickness For Quilt: | 80mm | Speed: | 1200RPM |
| Port: | Shenzhen | ||
| High Light: | Multi Needle High Speed Quilting Machine,High Speed Quilting Machine Computerized,Quilting Machine Computerized 245cm |
||
Product Description
High Speed Computerized Chain Stitch Multi Needle Quilting Machine YT-3200B
Technical Parameters
| Model | YT-3200B |
| Dimension(L*W*H) | 5300*1500*2100 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Gross weight | 5500kg |
Computerized Chain Stitch Multi Needle Quilting Machine YT-3200B
The main features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Purpose: High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3200B
is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

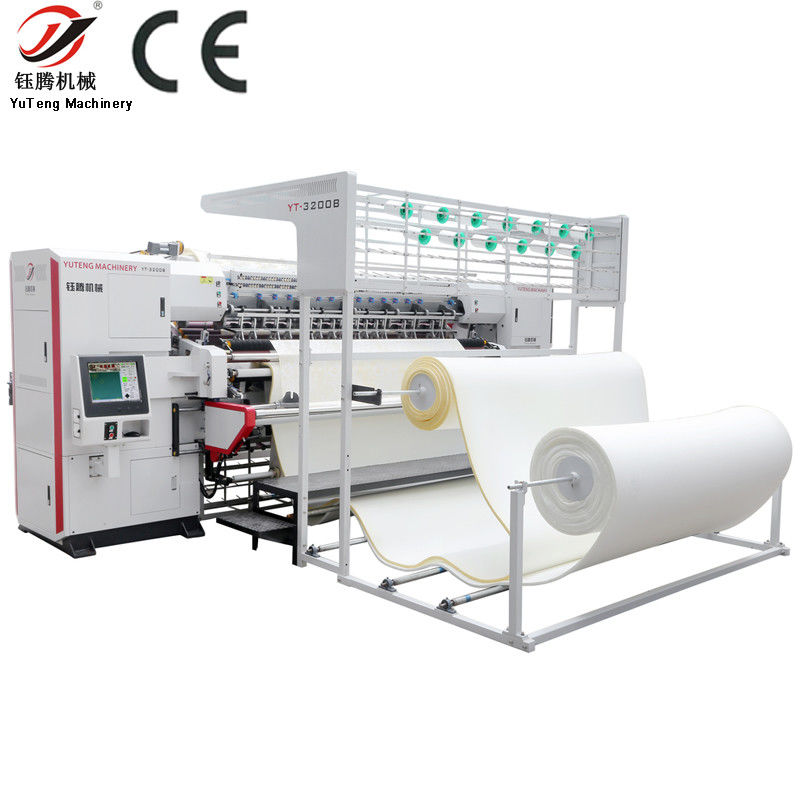

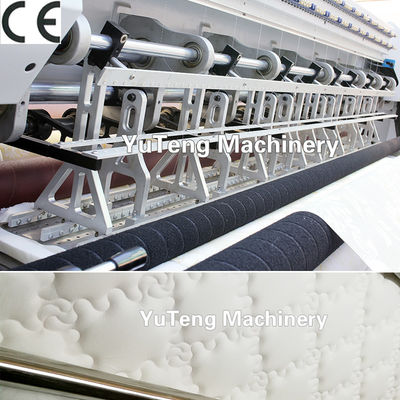

Picture of Automatic Mattress Foam Making Quilting Machine YT-3200B
This Quilting Machine can do quilt for mattress cover,comforters,winter quilt,blankets,medical pads...
Payment Terms: We require a 30% deposit in advance for the Industrial Computerized Sewing and Quilting Machine, with the remaining 70% balance to be paid before shipment. This payment structure ensures a smooth transaction process and allows us to initiate production promptly.
Delivery Terms: We offer various delivery terms such as FOB, CIF, CFR, and more. These terms are flexible and can be discussed based on your specific requirements and preferences. Our aim is to provide convenient and efficient delivery options that meet your needs.
Warranty: The Industrial Computerized Sewing and Quilting Machine is backed by a one-year warranty. This warranty covers any manufacturing defects or malfunctions that may occur during normal usage within the specified warranty period. Our commitment is to ensure the reliability and durability of our machines, and we stand behind the quality of our products.
After-Sale Services: As part of our customer-centric approach, we offer additional after-sale services upon request. If needed, we can arrange for one of our experienced engineers to visit your factory to provide installation assistance and comprehensive training on operating and maintaining the machine. This personalized support ensures that you can maximize the benefits of our machine and operate it with confidence.
