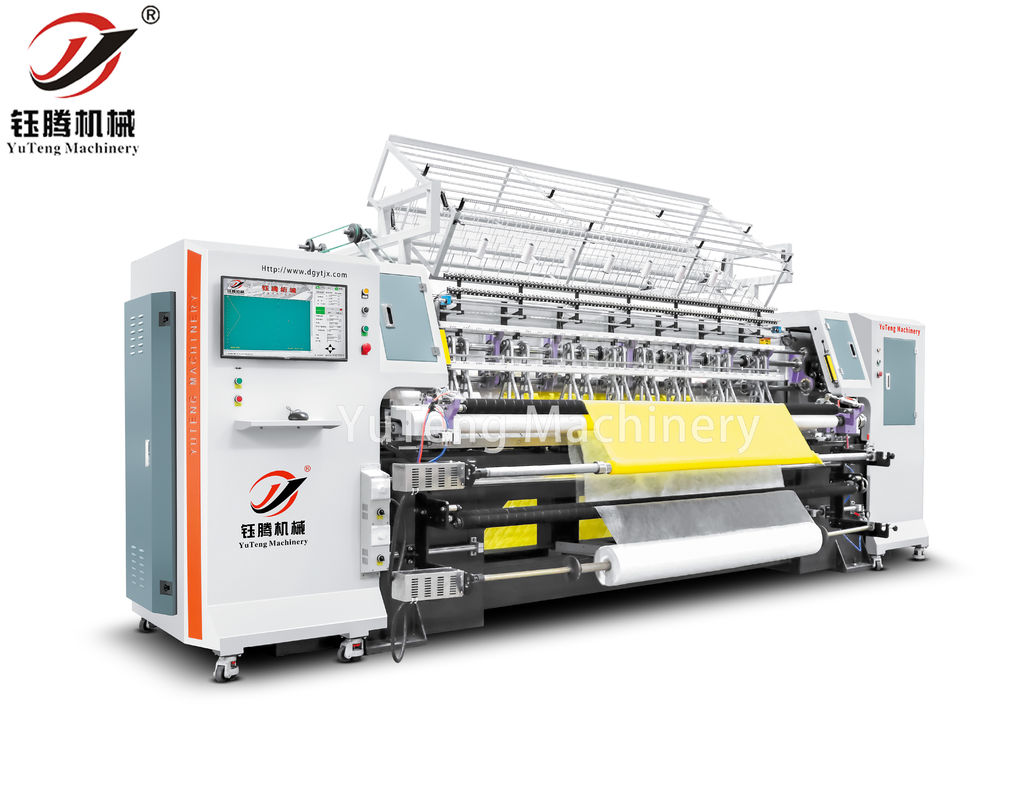

Computerized Multi Needle Speed Quilting Machine for Bedding Hometextile Production
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Model Number: | YGH Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | film&paper |
|
Detail Information |
|||
| Name: | Computer Quilting Machine | Style: | Lock Stitch |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Quilting Width: | 1650/2000/2450MM |
| Thickness Of Quilting: | Under 25MM | Production Speed（m/hour）: | 20-200 |
| Shuttle Model: | 7#/10# | Needle Model: | 14#/16#/19# |
Product Description

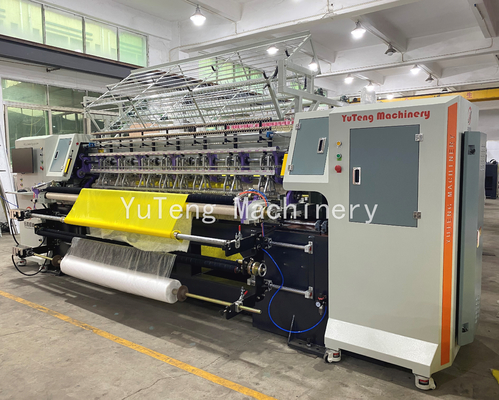

YGH Series Ultra High speed Computerized Lock Stitch Multi Needle Quilting Machine
Product Description:
It is widely for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
Features:
1.Comprehensively upgrade and strengthen each transmission structure to truly realize high-speed operation and stable production.
2.The external computer control system can effectively reduce the adverse effects of high-speed operation on the electronic control.
3. The computer can adjust the speed of 100-1400 rpm, and the stitch adjustment is 2-12mm.
4. The speed, stitch and various pattern compensation functions can be adjusted arbitrarily during the operation of the equipment.
5. The system is equipped with a "return” function to solve the work of missing quilting and stitching between processing and changing shuttles.
6. The needle row movement adopts servo drive mode, and the spindle adopts frequency conversion control.
7. Dual clutch device, to solve the synchronization problem of rollers in front and back.
8. 360 degree free quilting come with unlimited multi-span quilting independent patterns.
9. Automatic thread-break detection unit. Infrared sensor make sure more safety operation.
Technical Parameters:
| Model | 64 Series | 80 Series | 96 Series | |||
| 64-2-3(S/B) | 64-3-4/4.5/5/6(S/B) | 80-2-3(S/B) | 80-3-4/4.5/5/6(S/B) | 96-2-3(S/B) | 96-3-4/4.5/5/6(S/B) | |
| Dimension(L*W*H) | 4500*1500*1800mm | 4500*1500*1800mm | 4900*1500*1800mm | 4900*1500*1800mm | 5400*1500*1800mm | 5400*1500*1800mm |
| Quilting Width | 1650mm | 1650mm | 2000mm | 2000mm | 2450mm | 2450mm |
| The Number of Needle rows | 2 | 3 | 2 | 3 | 2 | 3 |
| Space between needle rows | 3" | 3"+1"/1.5"/2"/3" | 3" | 3"+1"/1.5"/2"/3" | 3" | 3"+1"/1.5"/2"/3" |
| Space between needle | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| X-axis Travel(Inch) | 152.4mm(6'') | 152.4mm(6'') | 152.4mm(6'') | 152.4mm(6'') | 228.6mm(9") | 228.6mm(9") |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm | 2-12mm | 2-12mm | 2-12mm |
| Production Speed(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) |
| Shuttle Model | 7#/10# | 7#/10# | 7#/10# | 7#/10# | 7#/10# | 7#/10# |
| Needle Model | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 5KW | 5KW | 6KW | 6KW | 7KW | 7KW |
| Gross weight | 5800KG | 5800KG | 6100KG | 6100KG | 6600KG | 6600KG |
*Customized model are available to meet client's various needs.
About us:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Production Line Combination:
Customized machinery + Computerized panel cutter machine
Computerized lock stitch multi-needle quilting machine + Four-side sewing and cutting machine
Support and Services:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.(Fees need to be negotiated)
* Warranty: 1 year
Related Machinery:
Computerized automatic fillet cutting and stacking machine
Four-side sewing and cutting machine & edge collecting machine
Roller machine
Bobbin winder machine
FAQ:
Q: What is the brand name of this quilting machine?
A: The brand name of this quilting machine is Yuteng.
Q: Where is this Lock Stitch Quilting Machine manufactured?
A: This Lock Stitch Quilting Machine is manufactured in China.
Q: What is your payment terms?
A:T/T 30% deposit in advance, 70% balance before shipment.
Q: What is the warrany?
A: One year.(All parts are guaranteed one year for non-human-made damage)
Welcome to contact with us,for more information of quilting machine.
