3.5kw Lock Stitch Multi Needle Quilting Machine Computerized For Sofa Seat Cover
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $23,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | ≤25mm |
| Number Of Head: | Multi-Needles | Moving Style: | Frame Moved |
| Voltage: | 380V/50HZ,220V/50HZ | Power: | 3.5kw |
| Dimension(L*W*H): | 4000mm*1200mm*1800mm | Weight: | 3500kg |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Shuttle Model:: | 7#,10# | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Port: | Shenzhen/Guangzhou |
| Highlight: | 3.5kw Lock Stitch Multi Needle Quilting Machine,Lock Stitch Multi Needle Quilting Machine Computerized,Seat Cover Quilting Machine Computerized |
||
Product Description
Computerized Lock Stitch Multi Needle Quilting Machine Computerized Quilting Machine For Sofa Seat Cover
Product main features :
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
The 3.5kw Lock Stitch Multi Needle Quilting Machine is a computerized quilting machine designed specifically for sofa seat covers. It offers advanced features and efficient performance to meet the requirements of industrial quilting.
Technical parameters :
|
Model |
YGB76-2-3 |
YGB76-3-6 |
|
Dimension(L*W*H) |
4000*1200*1800(mm) |
4000*1200*1800(mm) |
|
Quilting Width |
1930mm |
1930mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" inch |
3"+3" inch |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
203.2mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Shuttle |
7# / 10# |
7# / 10# |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(r/min) |
300-800(r/min) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3500kg |
3500kg |
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

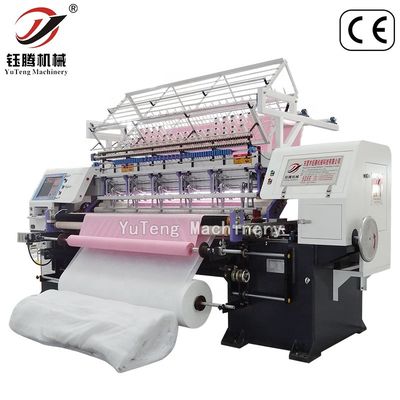

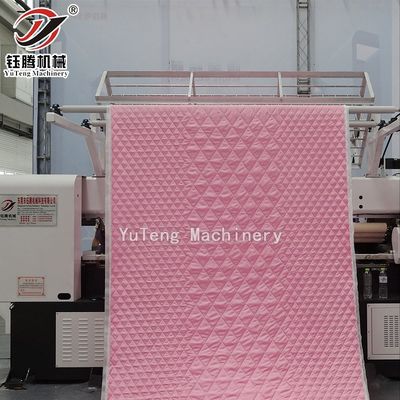

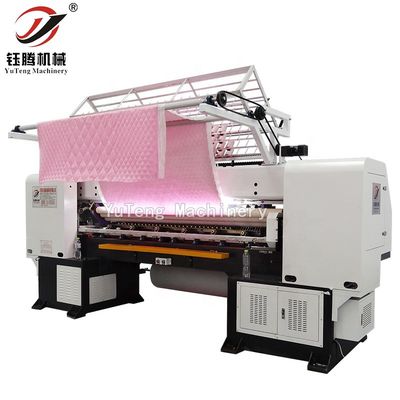

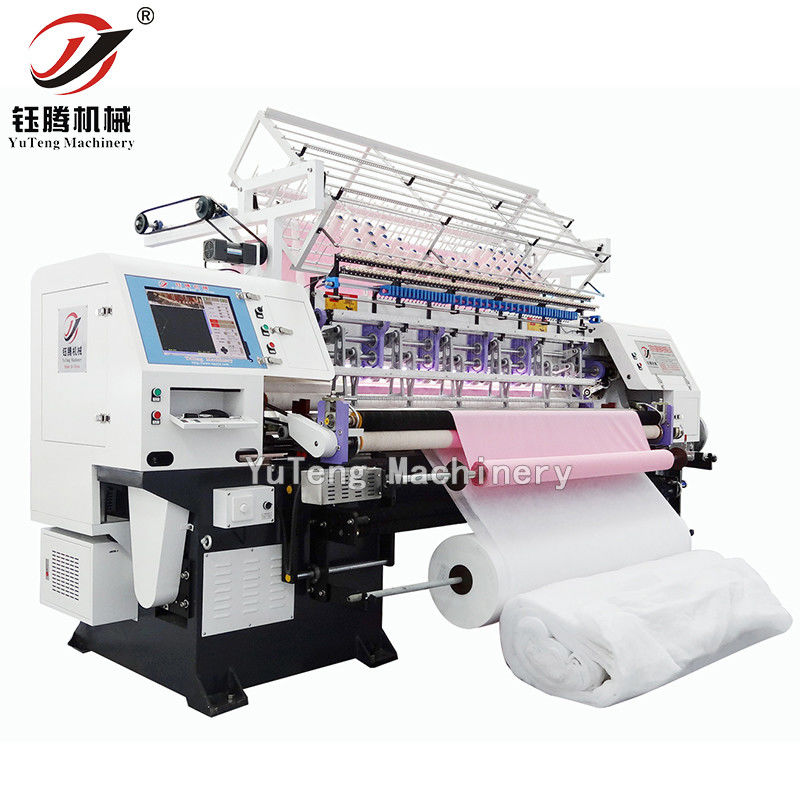

Quilting Machine Pictures :
Company pictures :
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
6.Customized Model are available to meet client's various needs.
