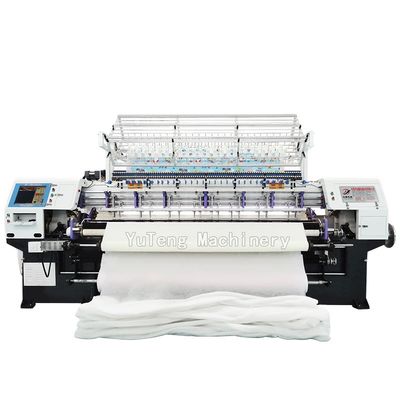

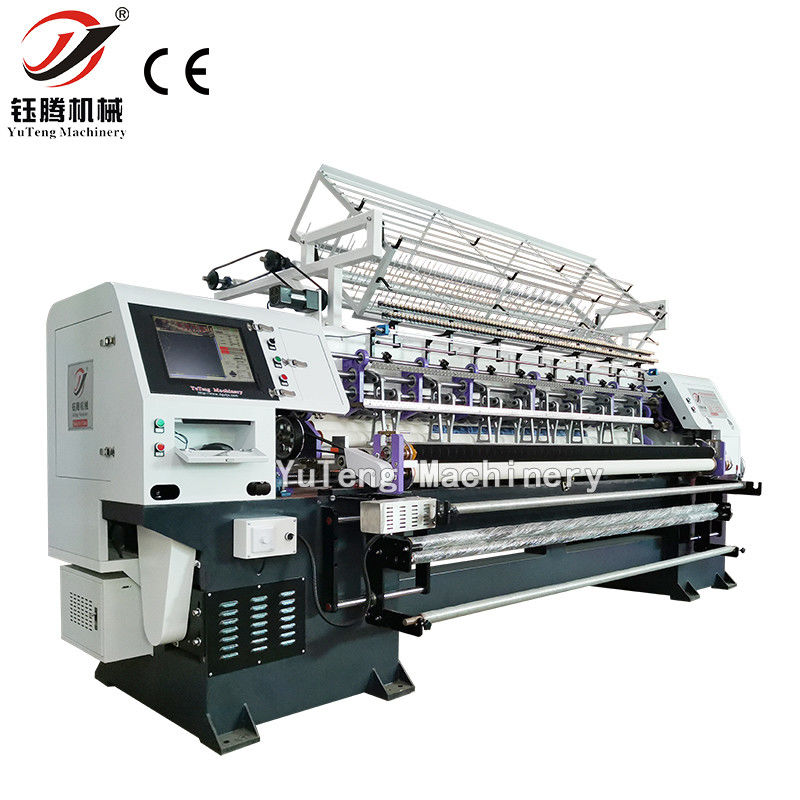

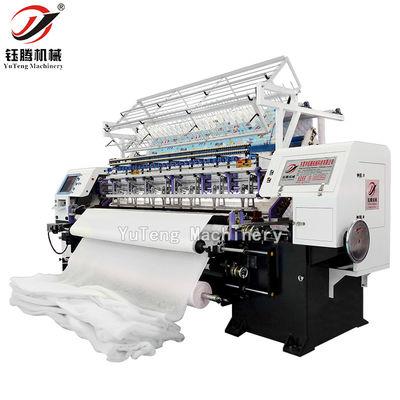

Industrial High Speed Multi-needle Quilting Machine For Blanket Textile Making
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Used For Quilting Winter Jackets,Carpets,Bags,Gloves,Pillow Covers | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Quilting Speed: | 100-1000r/min | Quilting Width: | 1650mm/2000mm/2450mm/3300mm |
| Quilting Thickness: | <=2.5cm | Needle Type: | #14, #16,#19 |
| Needle Space: | 25.4mm | ||
| Highlight: | High Speed Industrial Quilting Machine,Blanket Textile Making Quilting Machine,Multi Needle Quilting Machine |
||
Product Description
High Speed Computerized Shuttle(Lock Stitch)Multi-needle Quilting Machine
Product Description:
The machine is for quilting winter jackets,shoes,carpets,bags,gloves and pillow covers
Specification:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) | ||||||
| Dimension(L * W * H) | 4800mm*1200mm*1800mm | 4800mm*1200mm*1800mm | ||||||
| Quilting width | 2450mm | 2450mm | ||||||
| Number of needle rows | 2 | 3 | ||||||
| Space between needle rows | 3" Inch | 3"+1”/1.5”/2”/3”Inch | ||||||
| Space between needle | 25.4mm | 25.4mm | ||||||
| X-Trip | 228.6mm | 228.6mm | ||||||
| Quilting thickness | ≤25mm | ≤25mm | ||||||
| Stitch length | 2-12mm | 2-12mm | ||||||
| Production speed (m/h) | 20-160 (m/h) | 20-160 (m/h) | ||||||
| Shuttle model | 7#,10# | 7#,10# | ||||||
| Needle model | 14#,16#,19# | 14#, 16#,19# | ||||||
| Quilting speed | 100-1000 (rpm) | 100-1000 (rpm) | ||||||
| Voltage (AC) | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase | ||||||
| Power | 5.5KW | 5.5KW | ||||||
| Weight | 4800KG | 4800KG |
Special Function:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Certifications:
Packing & Shipping:
All our machines are packed in elastic film or wooden case as required before shipping.
