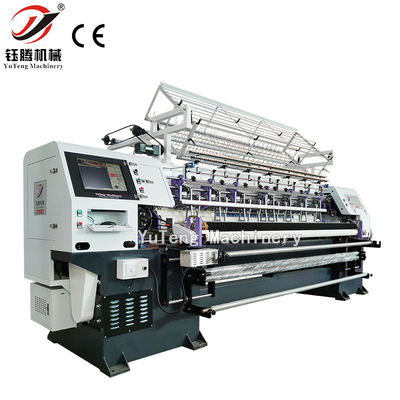

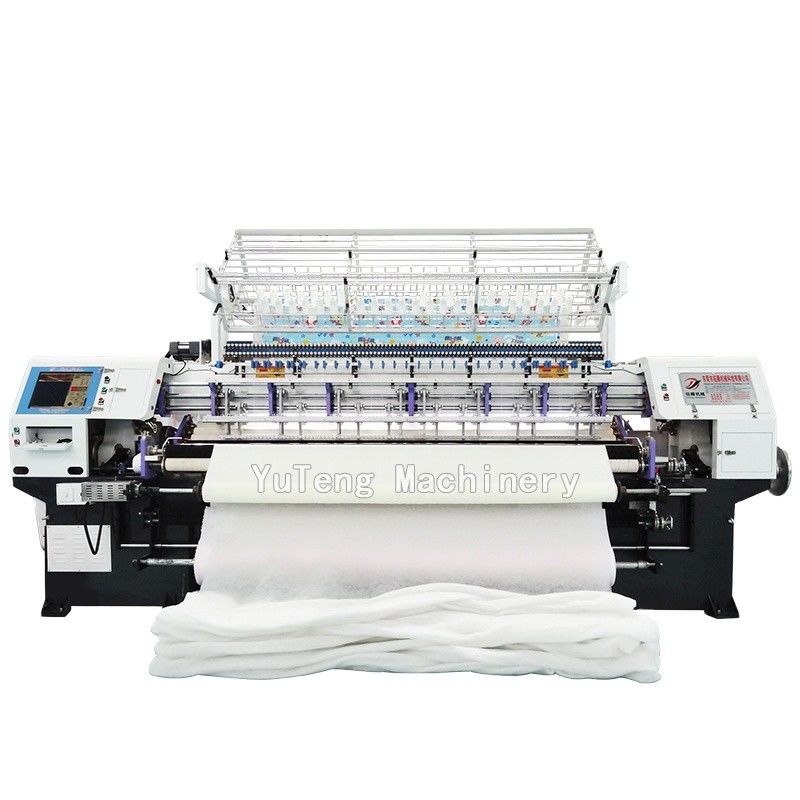

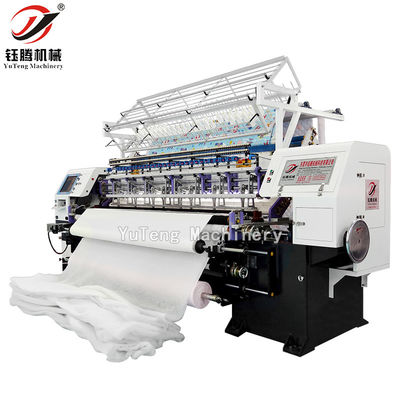

Computerized Industrial Quilting Machine High Speed For Shuttle
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Price: | $31,000.00/sets 1-1 sets |
|---|
|
Detail Information |
|||
| Applicable Industries: | Other, Textile Factory, Clother Making Factory | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Max Sewing Speed: | 300-800(r/min) | Max Sewing Thickness: | 25 |
| Number Of Head: | Double Heads | Moving Style: | Frame Moved |
| Voltage: | 380V/220V/50Hz | Power: | 3.5KW |
| Dimension(L*W*H): | 4000*1200*1800mm | Weight: | 3500 |
| Warranty: | 1 Year | Product Name: | Auto Ultrasonic Quilting Machine |
| Highlight: | Shuttle Industrial Quilting Machine,Industrial Quilting Machine High Speed,Computerized shuttle quilting machine |
||
Product Description
Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the
operating load of motor.
Dual clutch device, to solve the synchronization problem of rollers in front and back.
Using high-precision and high rigidity Imported screw mandrel.
360 degree free quilting come with unlimited Multi-span quilting independent patterns.
Automatic thread-break detection unit.
Infrared sensor make sure more safety operation.
The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate.
|
Model
|
96series
|
||
| 96-2-3 | 96-3-5/6 | ||
| Dimension(L*W*H)(mm) | 4900*1200*1800 | 4900*1200*1800 | |
| Quilting width(mm) | 2450mm | 2450mm | |
| The number of needle rows | 2 | 3 | |
| Space between needle rows | 3" | 3“+2“/3“+3“ | |
| Space between needle | 25.4mm | 25.4mm | |
| X-axis movement displacement | 254mm | 304.8mm | |
| Thickness of quilting | ≤25mm | ≤25mm | |
| Stitch length | 2-6mm | 2-6mm | |
| Speed of operation(m/hour) | 20-120 | 20-120 | |
| Model of needle | 16#,19# | 16#,19# | |
| Quilting speed(r/min) | 300-800 | 300-800 | |
| Voltage(AC) | 380V/220V/50HZ | 380V/220V/50HZ | |
| Total power | 5.5KW | 5.5KW | |
| Gross weight | 4500KG | 4500KG | |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(30.00%),Eastern Asia(10.00%),North America(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
quilting machine,shuttle quilting machine,quilting and embroidery machine,rolling machine,bobbin winder machine
4. why should you buy from us not from other suppliers?
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,Russian,Korean
