Industrial Computerized Multi Needle Quilting Machine for Mattresses 1200RPM
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter (M2) |
|---|---|
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Home Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200RPM | Max Sewing Thickness: | 80mm |
| Moving Style: | Frame Moved | Voltage: | 380V/220V,50HZ/60HZ,3-Phase |
| Power: | 8KW | Dimension(L*W*H): | 5050*1600*2300mm |
| Weight: | 5200 | Warranty: | 1 Year |
| After-sales Service Provided: | Online Support | Port: | Shenzhen/Guangzhou |
| Highlight: | Industrial Computerized Multi Needle Quilting Machine,Mattresses Computerized Multi Needle Quilting Machine,1200RPM computerised quilting machine |
||
Product Description
Quilting Machine ,Mattresses Industrial Computerized Multi Needle Quilting Machine
♦ Product main features :
1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
10,An industrial quilting machine is a heavy-duty, high-speed machine designed for large-scale, commercial quilting operations. It is engineered to produce high-quality quilts, bedspreads, comforters, and other quilted products efficiently and consistently.
♦ Technical parameters :
|
Model |
YT-3200B |
|
Dimension(L*W*H) |
5050mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2";3"+3" |
|
Space between needle |
25.4mm |
|
X-axis movement displacement |
300mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-230(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ |
|
Total power |
8KW |
|
Gross weight |
5200kg |

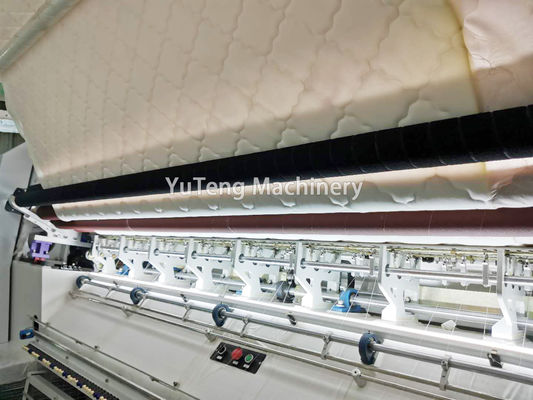

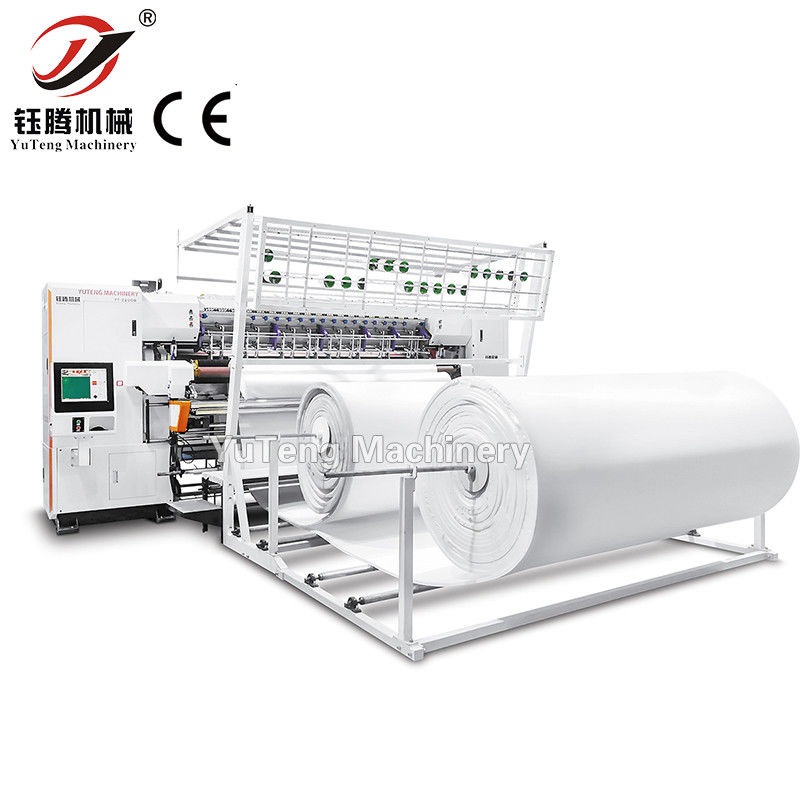

♦ Machine picture:
♦ Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
♦ Company pictures :
Our Services:
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
