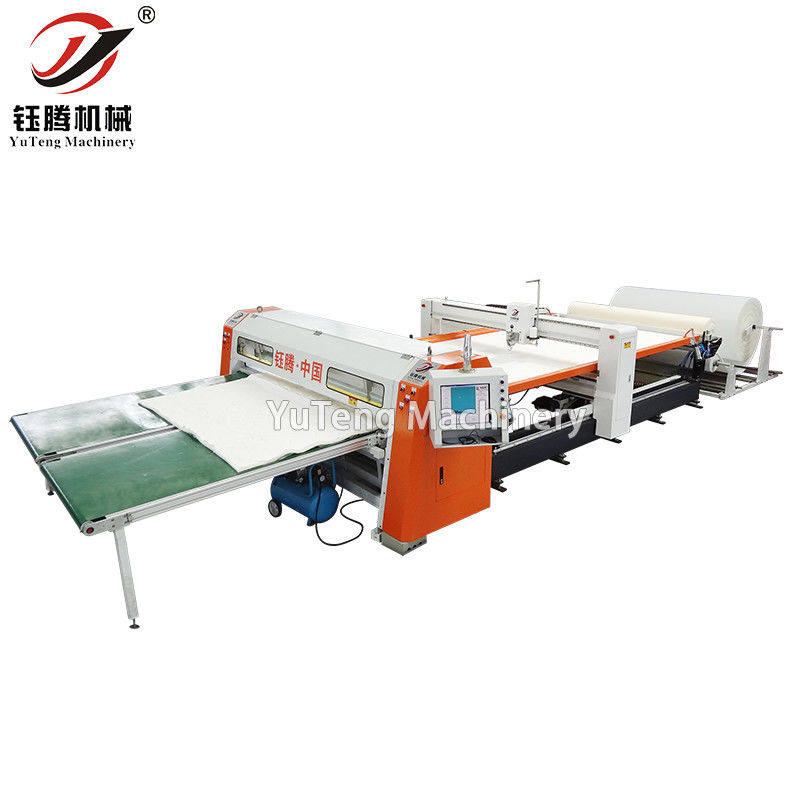

High Speed Computerized Single Needle Quilting Machine For Mattress Panel Bedspread
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter (M2) |
|---|---|
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 3000 RPM | Max Sewing Thickness: | 80mm |
| Number Of Head: | Single Head | Moving Style: | Head Moved |
| Voltage: | 380V/50HZ,220V/60HZ,3-Phase | Power: | 8KW |
| Dimension(L*W*H): | 12500*4100*1800mm | Weight: | 4000 |
| Warranty: | 1 Year | After Warranty Service: | Video Technical Support |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | computerized single needle quilting machine,Bedspread single needle quilting machine,Mattress single needle quilting machine |
||
Product Description
High Speed Computerized Single-Needle Quilting Machine For Mattress Panel & Bedspread
Machine Features:
1, New Germany imported single-needle sewing head, stable quality, reliable performance, the maximum speed up to 3000RPM.
2.Automatic thread trimming, up thread-broken detection and pattern compensation,adjustable presser foot by different thickness.
3. High rigidity mobile frame design, high-precision linear guide structure, to ensure the synchronization stability between the needle and the rotary hook, solid and durable, easy maintenance.
4. Innovative rotary hook changing structure, more scientific use and easier operation; (patent structure).
5.This high speed computerized single-needle quilting machine adopted Panasonic servo motors ,high precision , small noise vibration, accurate and stable operation.
6.Using Windows Embedded Industrial Computer Control System,Patterns can be edited and modified in this operating system,Compatible with embroid or other
quilting system format.
7.Support for 360-degree independent quilting and rotating quilting,high pattern precision.
8. Automatic material feeding , automatic clamping and automatic cutting device improve the production efficiency of single needle quilting machine and reduce labor cost.
9.Sturdy and Durable Construction: Industrial quilting machines are built with a robust and durable frame to withstand continuous and rigorous use. The machine is typically made of solid metal components, ensuring stability and longevity, even under heavy workloads.
Technical Parameter:
|
Size(L*W*H) |
12500*4100*1800mm |
|
Quilting width |
1200-2450mm |
|
Quilting thickness |
<80mm |
|
Rotation speed |
3000r/min |
|
Stitch length |
2-6mm |
|
Voltage(AC) |
380V/50HZ,220V/60HZ,3-Phase |
|
Total power |
8KW |
|
Weight |
4000KG |

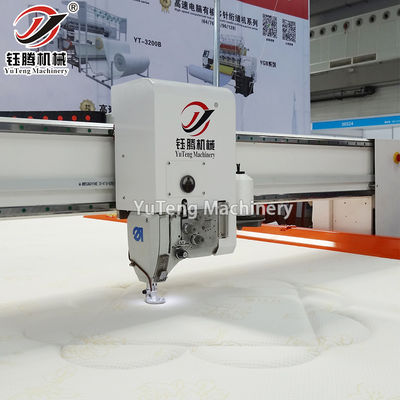

Machine Details:
Company pictures :
Our Services:
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
