High Speed Chain Stitch Multifunctional Quilting Machine for Making Mattress Panel
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YT3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 25000-40000 USD/SET |
| Packaging Details: | Elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Number Of Head: | Multi Needle | Voltage: | 380V/220V |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Core Components: | Motor, CPU |
| Sewing Speed: | 100-1000RPM | Sewing Thickness: | 80MM |
| Weight (KG): | 5000 | Working Width: | 2450MM |
Product Description

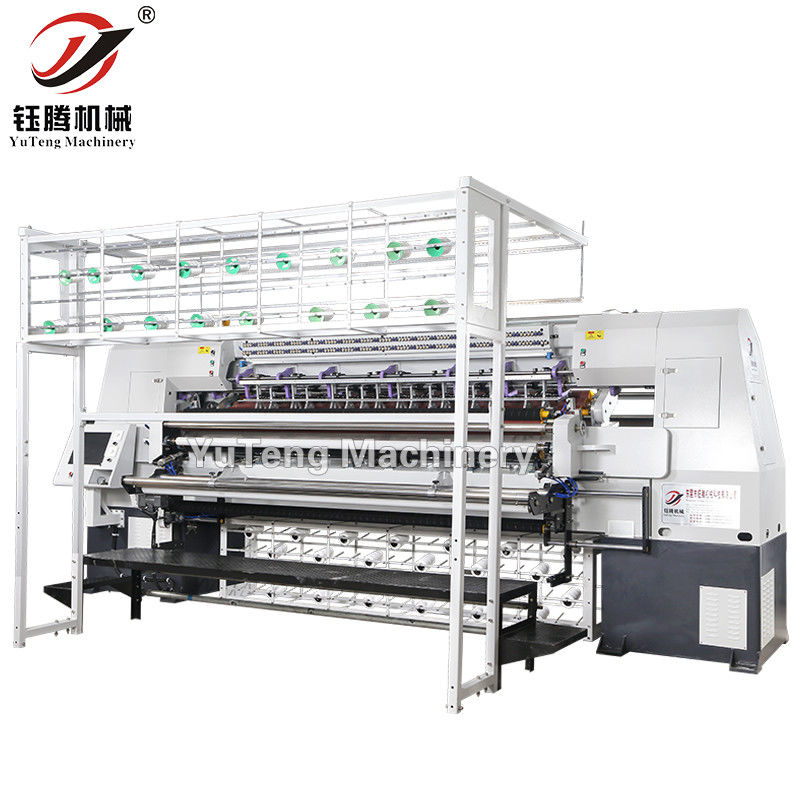

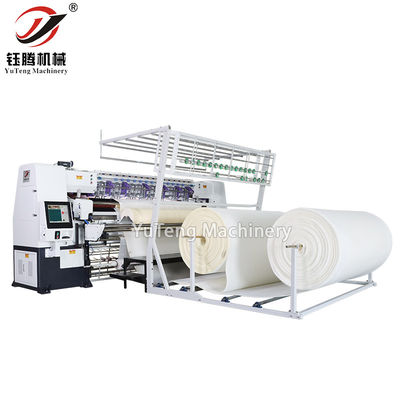

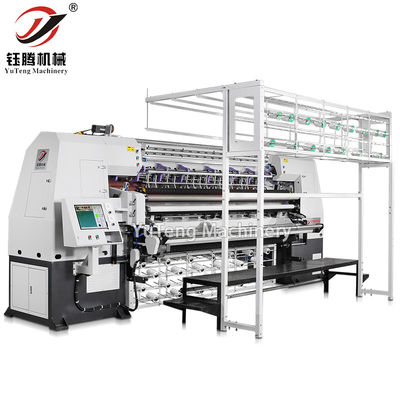

Computer Multi Needle Chain Stitch Quilting Machine
It is widely used for quilting mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more
Machine Main Features:
1.New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4.Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10.Infrared safety protection and Auto-stop sensors detection function
Our Services:
Inquiry and consulting support.
Sample testing support.
View our Factory.
Provide installation and usage guidance
Product Specification:
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1000(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
Product Detailed:
About Us:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
