1200RPM Mattress Making Machine , Comforter Computerized Chain Stitch Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Warranty: | 1 Year | Applicable Industries: | Mattresses,comforters |
| Showroom Location: | South Korea, South Africa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Width For Quilt: | 245cm | Thickness For Quilt: | 80mm |
| Speed: | 1200RPM | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | South Korea, South Africa, Ukraine | Port: | Shenzhen |
| Highlight: | 1200RPM Mattress Making Machine,Mattress Making Machine Computerized,Comforter Computerized Chain Stitch Quilting Machine |
||
Product Description
High Speed Computerized Chain Stitch Multi-needle Quilting Machine YT-3000A
Technical Parameters
| Model | YT-3000A |
| Dimension(L*W*H) | 5050*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Net weight | 5300kg |
The main features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Purpose: High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

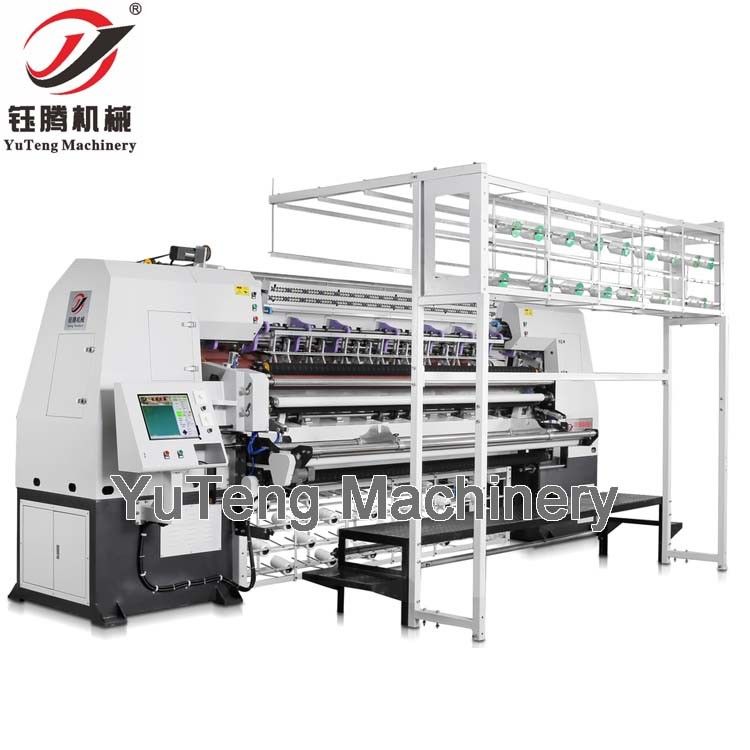

Picture of High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
This Quilting Machine can do quilt for mattress cover,comforters,winter quilt,blankets,medical pads...
have 200 pcs mattress quilt pattern saved in computer of quilting machine
have track & jump function
245 cm max.quilt width
80mmthickness
1200RPM speed
60-230 meters per hour,2000metrs per day(10 hours),60000 meters per month
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4. Warranty: One year.
5.After-Sale Services: As part of our customer-centric approach, we offer additional after-sale services upon request. If needed, we can arrange for one of our experienced engineers to visit your factory to provide installation assistance and comprehensive training on operating and maintaining the machine. This personalized support ensures that you can maximize the benefits of our machine and operate it with confidence.
6.Customized Model are available to meet client's various needs.
Welcome to contact with us,for more information of quilting machine.
