96 Inches Industrial Automatic Textile Fabric Cutting Machine With 600Kg Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Model Number: | YTCM96-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 6500-8500 USD/SET |
| Packaging Details: | film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Video Outgoing-inspection: | Provided | Core Components: | PLC, Engine |
|---|---|---|---|
| Dimension(l*w*h): | 3350*850*1800 | Application: | Used For Quilted Fabric Cutting For Mattress Panel And Textile Fabric |
| Machine Warranty: | 1 Year | Weight (KG): | 600Kg |
| Size: | 96 Inches | ||
| Highlight: | Automatic Textile Fabric Cutting Machine,Industrial Textile Fabric Cutting Machine,96 Inches Textile Fabric Cutting Machine |
||
Product Description

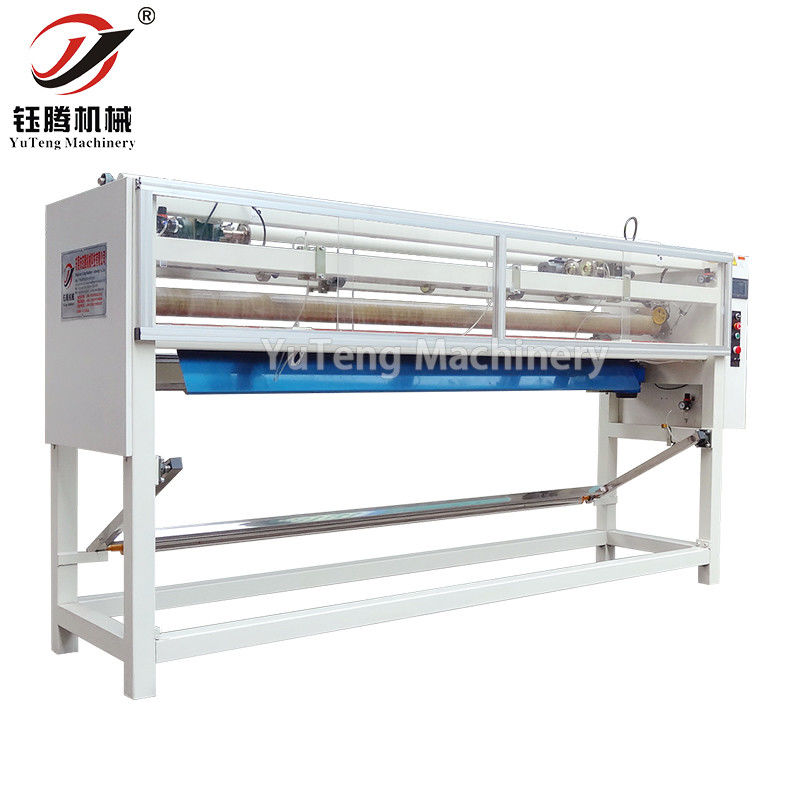

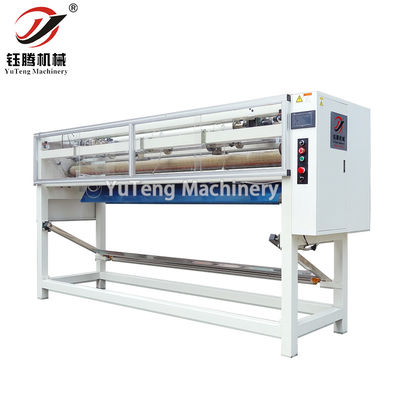

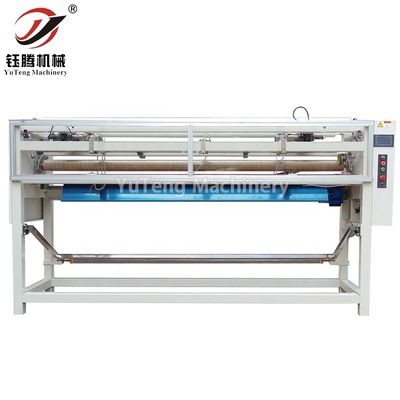

Automatic Computerized Cutting Machine
Uses:
Computerized Fabric Cutting Machine mainly used for cross-cuting,slitting and edge trimming the quilted fabric,and usually works in tandem with the quilting machine and rolling device,but it can also run alone.
Important Parameters:
| Model | YTCM96-C |
| Machine size(L*W*H) | 3350*850*1800(mm) |
| Cutting width | 2400mm(can be customized) |
| Cutting length | Min 30cm-Infinite |
| Cutting speed | Vertical cut 10m/minute,horizontal cut 5 s/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage |
380V/50HZ,220V/60HZ, 3-Phase |
Main Feature:
1.5''touch screen, large screen for ease of operation
2.Hidden slitting blades are more convenient and safer
3.Electric controls for length and width of cross cut which make operations more human
4.Feed-in top with article points for pressure roller. The pressure will be even, and feeding will be leveling off. The slitting cut will be more smooth, especially for the edge trimming of thinner material
5.Y-dimension with encoder for counting length. It can cut materials length Use the conveyor belt mechanical discharge. It will be convenient to fold material and save artificial.
Packing&Shipping:
All our machines are packed in elastic film or wooden case as required before shipping.
Certificate:
FAQ:
Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
Payment terms: TT:30% in advance, 70% was paid off before delivery.
Service:
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
