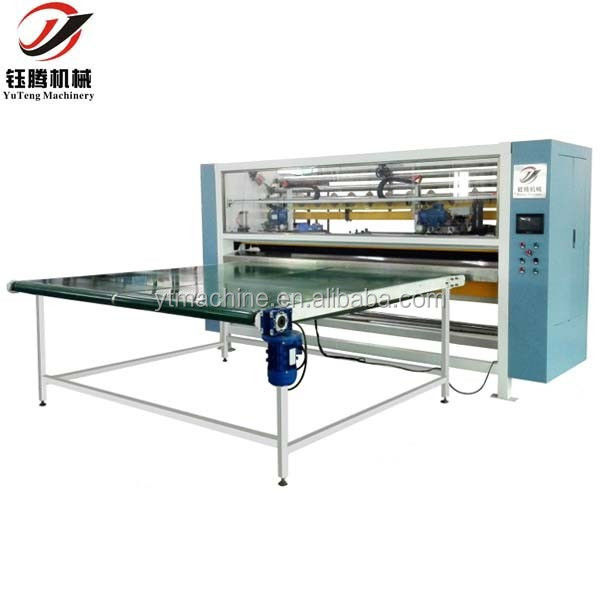

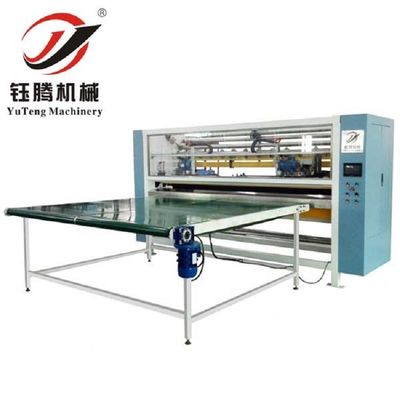

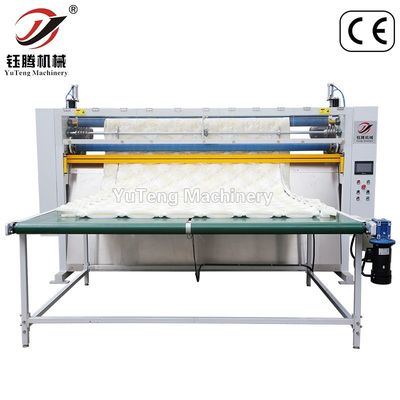

Industrial Computerised Fabric Cutting Machine Automatic For Quilt
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $7,000.00 - $13,000.00/sets |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 10m/min |
|---|---|---|---|
| Max Sewing Thickness: | 80mm | Voltage: | 380V 50HZ |
| Power: | 2.6kw | Dimension(L*W*H): | 3700mm*1100mm*2200mm |
| Weight: | 1500kg | Warranty: | 1 Year |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Port: | ShenZhen |
| Highlight: | Industrial Computerised Fabric Cutting Machine,Computerised Fabric Cutting Machine Automatic,Quilt computerized fabric cutter |
||
Product Description
Cutter Machine For Fabric Quilt
Product Application

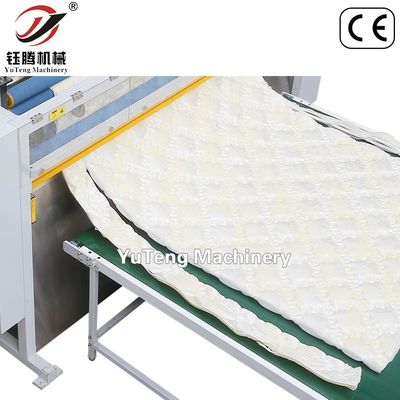

It is used to crosscut, slitting and edge trimming the quilted fabric, and usually works in tandem with the quilting machine and rolling device, but it can also run alone.
Main Features
1.7"touch screen,large screen for ease of operation, English and Chinese version changeable;
2.Hidden slitting blades are more convenient and safer;
3.Electric controls for length and width of cross cut which make operations more human;
4.Feedin top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of
thinner material;
5.Y-dimension with encoder for counting length.It can cut materials length ;
