Professional Mattress Making Non Shuttle Chain Stitch Quilting Sewing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Machine Dimension: | 5050*1600*2300mm | Working Width: | 2.45m |
|---|---|---|---|
| Thickness Of Quilting: | 8cm | Output Speed（r/min）: | 100-1200（r/min） |
| Type: | Automatic | Stitch Length: | 2-12 Mm |
| Voltage（AC）: | 380V Or 220V，3-Phase | Gross Weight: | 5500KGS |
| Highlight: | Professional Mattress Making Machine,Chain Stitch Quilting Sewing Machine |
||
Product Description

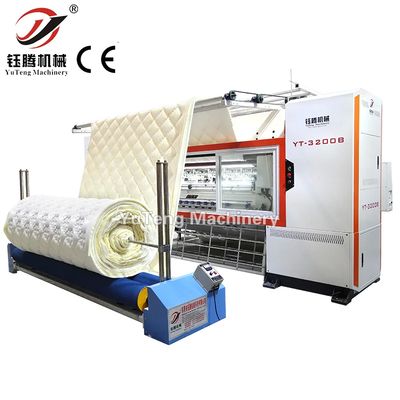

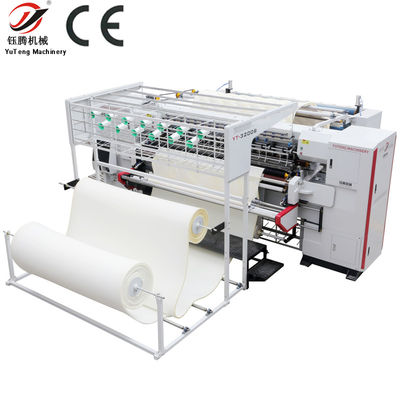

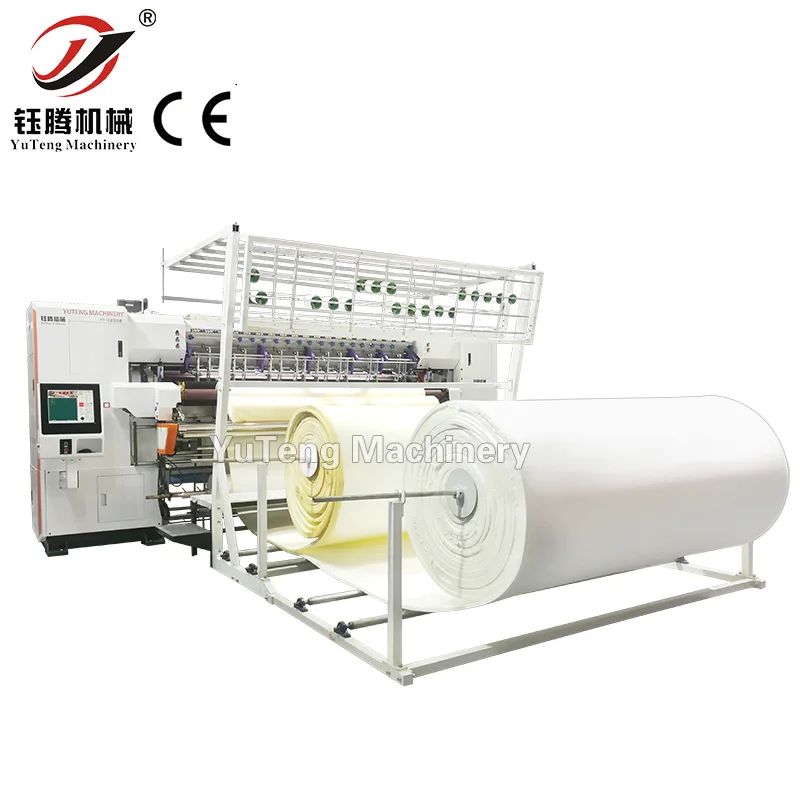

YT-3200B High-speed computerized chain stitch multi-needle quilting machine
Product Description:
The high-speed computerized chain stitch multi-needle quilting machine is ideal for producing quilts, bedspreads, mattress covers, comforters, and home textiles, offering precision stitching for various patterns and fabric types.
Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameters:
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23# |
| Quilting Speed(r/min) | 100-1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KGS |
Our Certificate:
Support and Services:
1. 24/7 Customer Service: Prompt response to inquiries and technical issues.
2. Custom Solutions: Tailored service plans to meet specific needs.
3. User Manuals: Detailed guides and operational instructions provided.
4. Online Resources: Access to tutorials, FAQs, and troubleshooting guides.
Packing and Shipping:
1. Machine is wrapped with protective film and paper board
2. Tailored options available per customer requirements.
3. Clearly labeled for easy identification during transit.
4. Professionally loaded to ensure safe transport without damage.
5. Thorough pre-shipment inspection ensures quality and packaging integrity.
FAQ:
1. Q:Is the machine easy to operate?
A:The user-friendly interface allows quick pattern setup and adjustments.
2. Q:What maintenance is required?
A:Routine cleaning and lubrication are recommended for optimal performance.
3. Q:What fabric thickness can it handle?
A:The machine handles a wide range of fabric thicknesses, adjustable as needed.
4. Q:Is there a safety feature included?
A:Yes, it has built-in safety sensors and emergency stop functions for safe operation.
