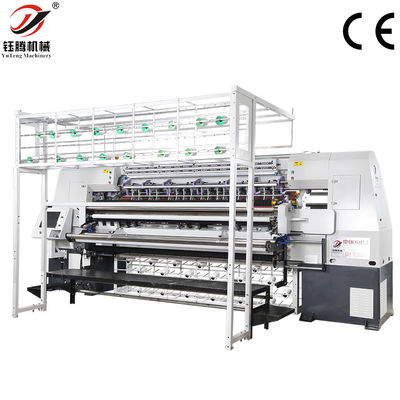

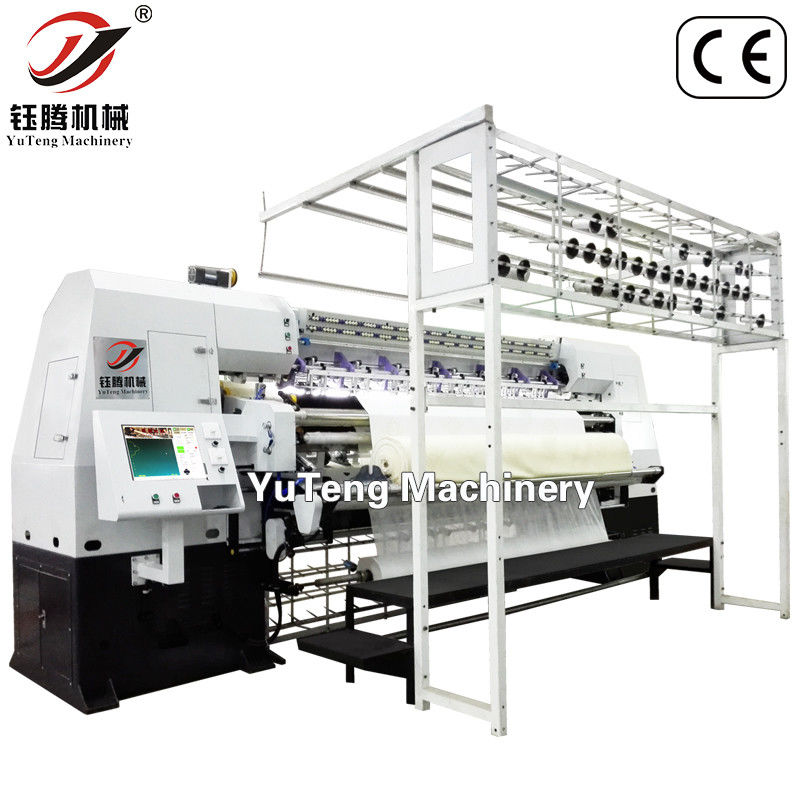

380V Computerized Multi Needle Quilting Machine For Industrial Mattress Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Film &paper board packing |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Condition: | New |
|---|---|---|---|
| Weight: | 5500KGS | Max Sewing Speed: | 1000 R/min |
| Max Sewing Thickness: | ≤80mm | Quilting Width: | 2450mm |
| Voltage: | 380V/220V | Dimension(L*W*H): | 5000*1600*2300(mm) |
| High Light: | 380V Computerized Multi Needle Quilting Machine,Computerized Industrial Multi Needle Quilting Machine |
||
Product Description
Hot Sale Industrial Mattress Panels Computerized Multi Needle Quilting Machine
High-Speed Computerized looper Multi Needle Quilting Machine
Purpose:
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration etc.
Features:
1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
Technical Parameters:
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2";3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | 80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1000(r/min) |
| Voltage(AC) | 380V/50HZ 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5500kg |
* Can be customized according to customer requirements
