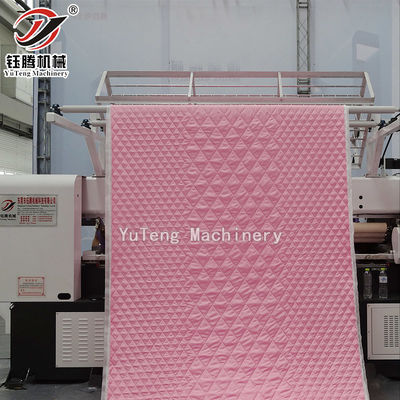

Computerized Quilting Machine Sofa Cover Fabric Quilted
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGB Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Computer Quilting Machine | Style: | Lock Stitch |
|---|---|---|---|
| Sewing Width: | 2.45m | Quilting Thickness: | <=2.5cm |
| Output: | 20-160m/hour | Shuttle Model: | 7#/10# |
| Needle Model: | 16#/19# | Stitch Length: | 2-12mm |
| Machine Warranty: | 1 Year | Voltage（AC））: | 380V/220V，3-Phase |
| Highlight: | Automatic Thread Cutter Quilting Machine,Safety System Quilting Machine,Adjustable Quilting Machine |
||
Product Description

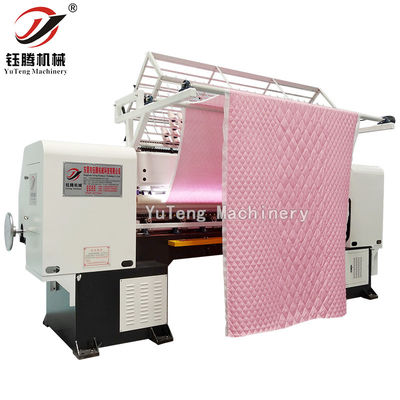

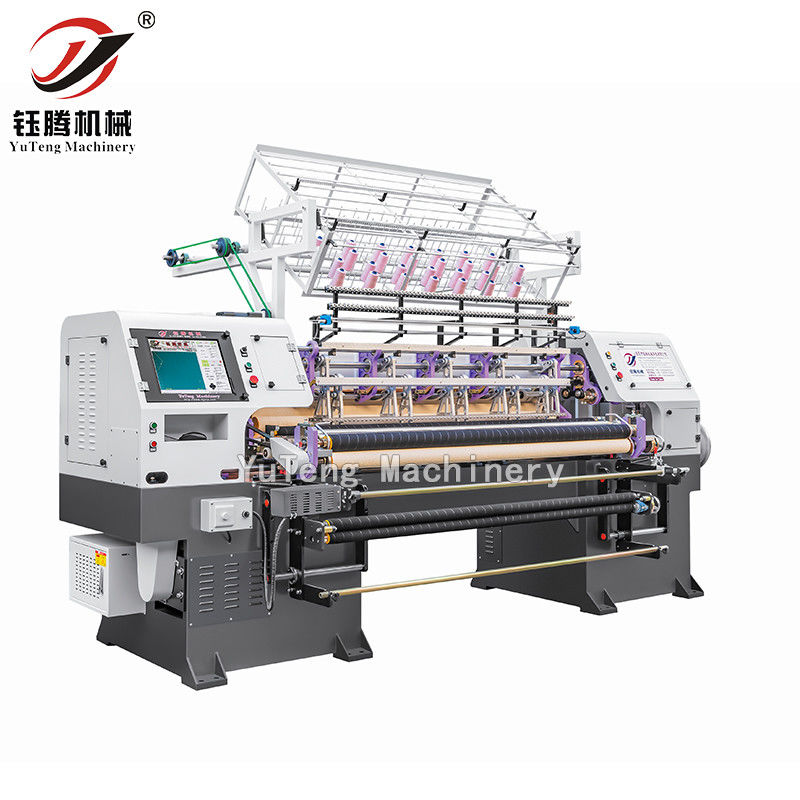

Computer Lock Stitch Multi Needle Quilting Machine
Product Purpose:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, straight lines quilts, square quilts, diamond quilts and Wall decoration etc.
Machine Main Features:
1. Adjusted speed by computer and the speed can reach 800r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
New aluminum alloy needle bar frame structure,oil free,sturdy and durable,can avoid lubrication and dirty material effectively
Available in multiple languages
Self-developed“YuTeng Quilting System”,also supports quilting embroidering mainstream DST format file
Automatic thread-break detection
The pattern produced is accurate and beautiful
Technical Parameters:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) | ||||||
| •Dimension(L * W * H) | •4800mm*1200mm*1800mm | •4800mm*1200mm*1800mm | ||||||
| •Quilting width | •2450mm | •2450mm | ||||||
| •Number of needle rows | •2 | •3 | ||||||
| •Space between needle rows | •3" Inch | •3"+1”/1.5”/2”/3”Inch | ||||||
| •Space between needle | •25.4mm | •25.4mm | ||||||
| •X-Trip | •254mm | •304.8mm | ||||||
| •Quilting thickness | •≤25mm | •≤25mm | ||||||
| •Stitch length | •2-12mm | •2-12mm | ||||||
| •Production speed (m/h) | •20-160 (m/h) | •20-160 (m/h) | ||||||
| •Shuttle model | •7#,10# | •7#,10# | ||||||
| •Needle model | •14#,16#,19# | •14#, 16#,19# | ||||||
| •Quilting speed | •100-1000 (rpm) | •100-1000 (rpm) | ||||||
| •Voltage (AC) | •380V/50HZ , 220V/60HZ, 3-Phase | •380V/50HZ , 220V/60HZ, 3-Phase | ||||||
| •Power | •5.5KW | •5.5KW | ||||||
| •Weight | •4500KG | •4500KG |
Customized model are available to meet client‘s various needs
Support and Services:
Inquiry and consulting support.
Warrany: One year.
After-sale services: Good after-sale service provided, we believe in good customer service all the time.
Packing and Shipping:
The machine is usually packed with plastic film + paper board. If you need wooden box packaging, please inform us and the fee will be charged separately.
Our Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
FAQ:
Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment
Do not hesitate to contact us - we will be happy to assist and advise you.
