Industial Ultra High Speed Computerized Multi Needle Quilting Machine For Making Garment Hometextile
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGH Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Product Name: | Computerized Shuttle Multi Needle Quilting Machine |
|---|---|---|---|
| Work Width: | 64", 82", 96" | Quilting Thickness: | <=2.5cm |
| Place Of Origin: | Guangdong, China | Warranty: | 1 Year |
| Brand Name: | YuTeng | Gross Weight: | 4200/4500/4800Kg |
| Highlight: | Automated Lubrication Quilting Machine,Automated Computerized Multi Needle Quilting Machine,Thread Cutter Quilting Machine |
||
Product Description

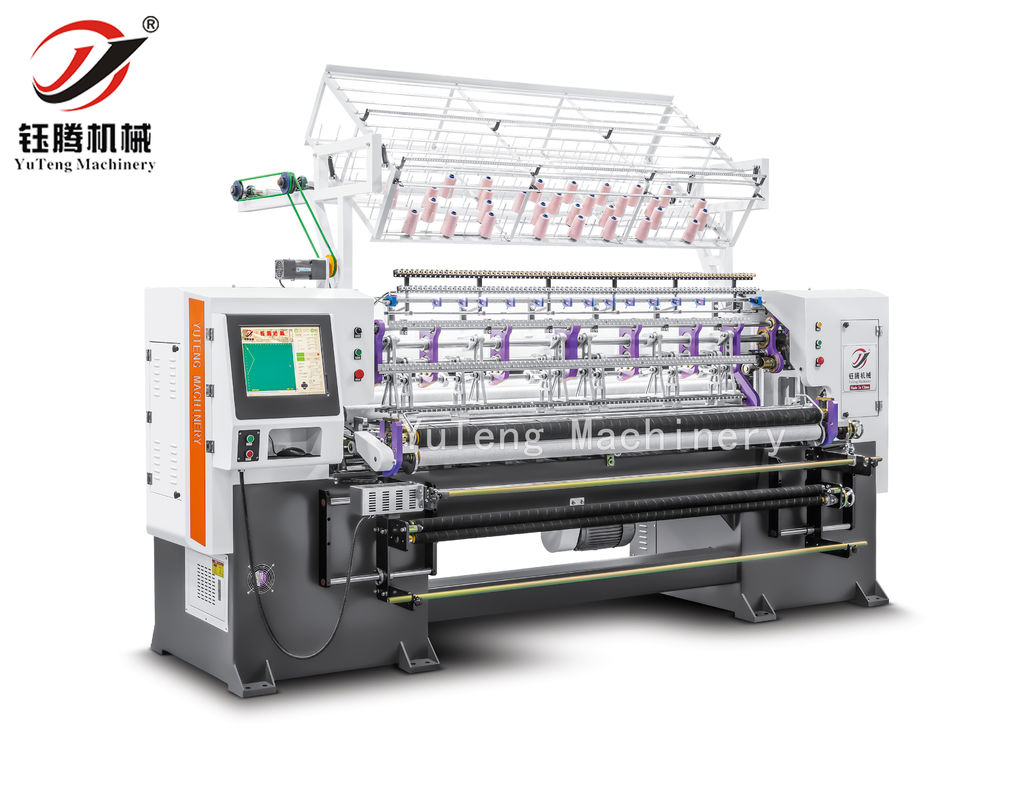

YGH Series Computerized Shuttle(lock stitch) Multi-needle Quilting Machine
Product Description:
It is widely for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
Product Features:
1.Comprehensively upgrade and strengthen each transmission structure to truly realize high-speed operation and stable production.
2.The external computer control system can effectively reduce the adverse effects of high-speed operation on the electronic control.
3. The computer can adjust the speed of 100-1400 rpm, and the stitch adjustment is 2-12mm.
4. The speed, stitch and various pattern compensation functions can be adjusted arbitrarily during the operation of the equipment.
5. The system is equipped with a "return” function to solve the work of missing quilting and stitching between processing and changing shuttles.
6. The needle row movement adopts servo drive mode, and the spindle adopts frequency conversion control.
7. Dual clutch device, to solve the synchronization problem of rollers in front and back.
8. 360 degree free quilting come with unlimited multi-span quilting independent patterns.
9. Automatic thread-break detection unit. Infrared sensor make sure more safety operation.
Technical Parameters:
| Machine model | YGH64-2-3(S/B) | YGH80-2-3(S/B) | YGH96-2-3(S/B) | ||||||||
| Dimension(L * W * H) | 3600mm*1400mm*1800mm | 3900mm*1400mm*1800mm | 4555mm*1400mm*1800mm | ||||||||
| Quilting width | 1650mm | 2000mm | 2450mm | ||||||||
| Number of needle rows | 2 | 2 | 2 | ||||||||
| Space between needle rows | 3" Inch | 3" Inch | 3" Inch | ||||||||
| Space between needle | 25mm | 25mm | 25mm | ||||||||
| X-Trip | 152.4mm | 152.4mm | 228.6mm | ||||||||
| Quilting thickness | ≤25mm | ≤25mm | ≤25mm | ||||||||
| Stitch length | 2-12mm | 2-12mm | 2-12mm | ||||||||
| Production speed (m/h) | 20-200 (m/h) | 20-200 (m/h) | 20-200 (m/h) | ||||||||
| Shuttle model | 7#,10# | 7#,10# | 7#,10# | ||||||||
| Needle model | 14#,16#,19# | 14#, 16#,19# | 14#, 16#,19# | ||||||||
| Quilting speed | 100-1400 (rpm) | 100-1400 (rpm) | 100-1400 (rpm) | ||||||||
| Voltage (AC) | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase | ||||||||
| Power | 4.5KW | 4.5KW | 6KW | ||||||||
| Weight | 4200KG | 4500KG | 4800KG |
Customized model are available to meet client‘s various needs
Packing Type And Shipping:
The quilt sewing machines are packed in elastic film or wooden case as required before shipping.
Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
Parts and accessories:
We use high-quality stainless steel shuttles, shuttle holders and quilting needles
About us:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us. Welcome to contact with us,for more information of quilting machine.
