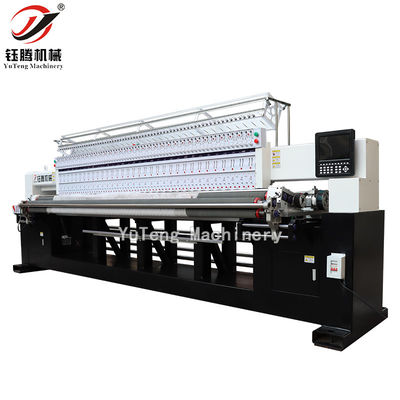

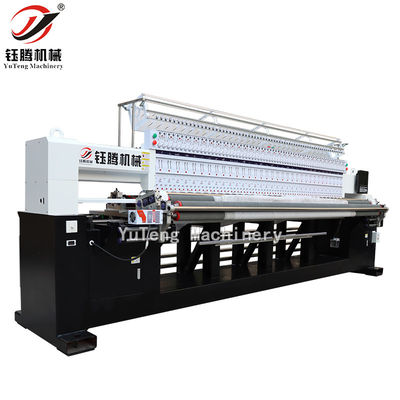

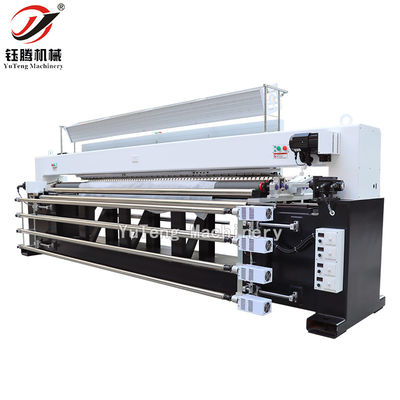

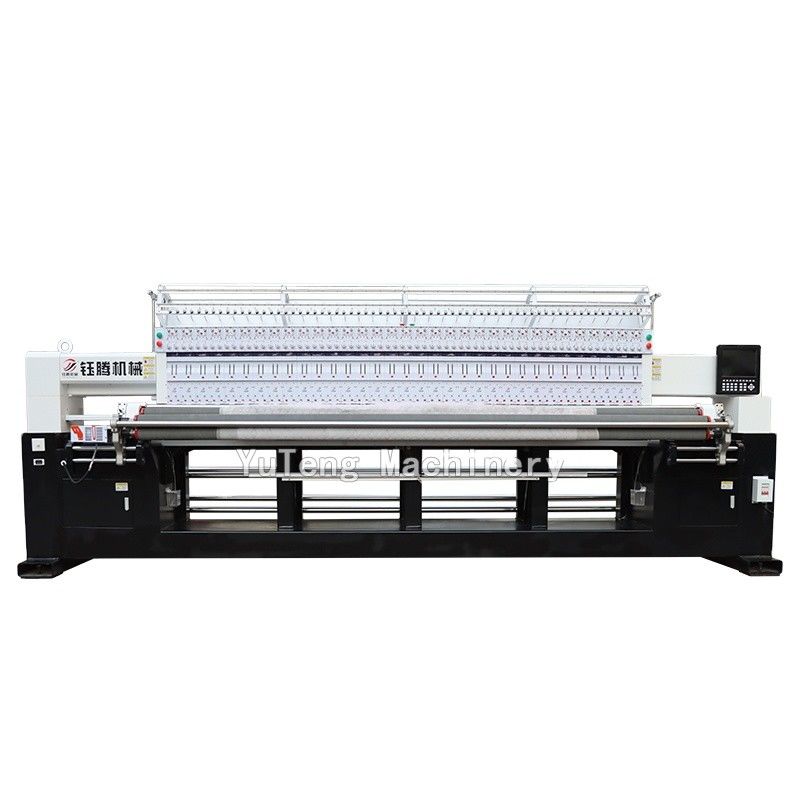

5.5KW Computerized Quilting Embroidery Machine Multi Needle 850RPM
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 20000-30000 USD/SET |
| Packaging Details: | The wooden case |
|
Detail Information |
|||
| Maximum Speed: | 1000RPM | Applicable Industries: | Other, Factory |
|---|---|---|---|
| Condition: | New | Operation: | Computerized |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Power: | 5.5KW | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Head Interval: | 50.8mm/67.5mm |
| Weight (KG): | 3850 KG | ||
| Highlight: | 5.5KW Computerized Quilting Embroidery Machine,Computerized Quilting Embroidery Machine Multi Needle,850RPM multi needle quilting machines |
||
Product Description
Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
Auto-return for patch-up embroidery function.
Can move an inch in front of the needle bar, and provide more combination of flowers form.
Saddling rack, roller and spindle are drive by servo motor.
The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling
rack.
Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
Infrared sensor makes the operation more secure.
Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
Super comfortable space for changing shuttle, easy to convey cloth.
| Model | Y-T1330H | YT-2360H | YT-1220H |
| Dimension(L×W×H)(mm) | 5300*1450*2100 | 5300*1450*2100 | 5300*1450*2100 |
| Quilting width(mm) | 3300mm | 3300mm | 3300mm |
| Needle/Head | 2 | 2 | 2 |
| Heads | 33 | 25 | 22 |
| Space between needle | 50.8mm | 67.5mm | 76.2mm |
| X-axis movement displacement | 250mm | 250mm | 250mm |
| Stitch length | 1-12.7mm | 1-12.7mm | 1-12.7mm |
| Model of needle | 9#,16# | 9#,16# | 9#,16# |
| Quilting speed(rpm) | 600-1000 | 600-1000 | 600-1000 |
| Voltage(AC) | 380V/50HZ
220V/60HZ
|
380V/50HZ
220V/60HZ
|
380V/50HZ
220V/60HZ
|
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 3500KG | 3500KG | 3500KG |
