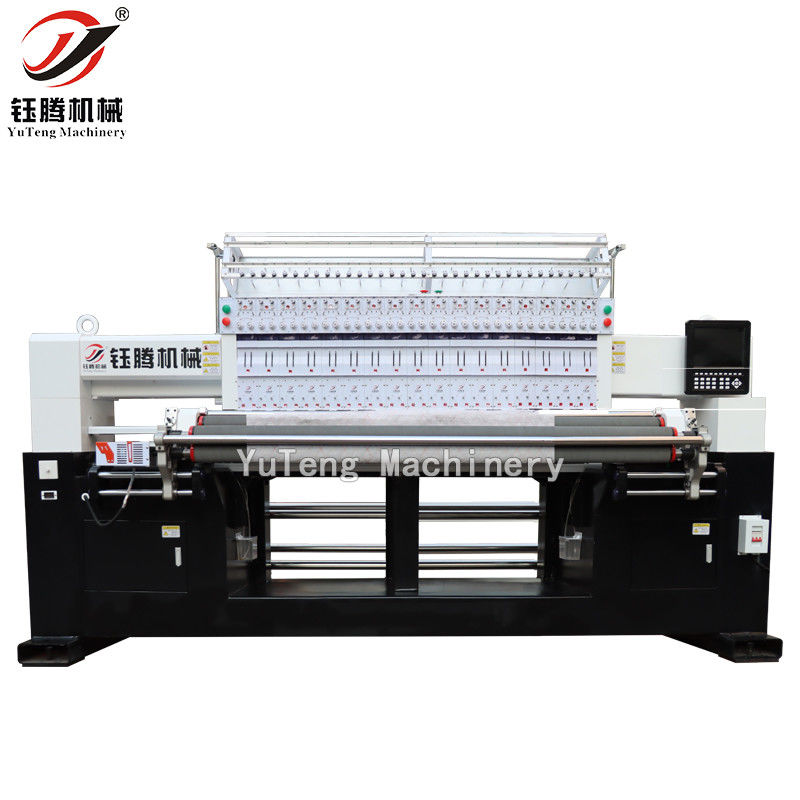

Industrial Computer Controlled Embroidery Machine Multi Needle 3300MM
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
Payment & Shipping Terms:
| Price: | $24,500.00/sets >=1 sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Maximum Speed: | 900 RPM | Applicable Industries: | Factory Use |
|---|---|---|---|
| Condition: | New | Type: | Flat Embroidery Machine |
| Operation: | Computerized | Overall Dimensions: | 4000*1450*2100(mm) |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC |
| Head Interval: | 33 | Embroidery Area: | 3300MM |
| Weight (KG): | 2500 KG | After Warranty Service: | Video Technical Support |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Industrial Computer Controlled Embroidery Machine,Computer Controlled Embroidery Machine Multi Needle,3300MM multi needle computerized embroidery machine |
||
Product Description
Computer Controlled Embroidery Machine High Speed Computerized Multi Needle Quilting And Embroidery Machine
• Quilting and embroidery is completed together.
• Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
• Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
• Auto-return for patch-up embroidery function.
• Can move an inch in front of the needle bar, and provide more combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
• Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure.
• Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
• Super comfortable space for changing shuttle, easy to convey cloth.
Luxury computerized quilting embroidery machines are engineered to deliver exceptional stitch quality and precision. They incorporate advanced mechanisms, such as automatic thread tension adjustment, precise thread trimming, and automatic needle positioning. These features ensure that each stitch is placed accurately and evenly, resulting in professional and consistent embroidery and quilting results.
Technical Parameters :
| Model | YT-1330 | YT-1250 | YT-1220 |
| Dimension(L*W*H) | 4000*1500*2100mm | 4000*1500*2100mm | 4000*1500*2100mm |
| Quilting width(mm)) | 1700mm | 1700mm | 1700mm |
| Needle/Head | 2 | 2 | 2 |
| Heads | 17 | 14 | 11 |
| Space between needle | 50.8mm | 67.5mm | 76.2mm |
| X-axis movement displacement | 250mm | 250mm | 250mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 600-1000 | 600-1000 | 600-1000 |
| Voltage(AC) |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 2300KGS | 2300KGS | 2300KGS |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
