High Speed 900RPM Computerized Quilting Embroidery Machine Multi Head
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $10,000.00 - $30,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 360 Set/Sets per Year |
|
Detail Information |
|||
| Maximum Speed: | 900RPM | Applicable Industries: | Factory Use |
|---|---|---|---|
| Condition: | New | Type: | Quilting Machine |
| Operation: | Computerized | Overall Dimensions: | 6000*1500*2100mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Power: | 5.5KW | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC | Embroidery Area: | 1700+1700mm |
| Weight (KG): | 3500 KG | After Warranty Service: | Video Technical Support |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | 900RPM Computerized Quilting Embroidery Machine,Multi Head Computerized Quilting Embroidery Machine,High Speed multi head quilting machine |
||
Product Description
Computerized Quilting Embroidery Machine High Speed Multi Head Quilting Embroidery Machine
• Quilting and embroidery is completed together.
• Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
• Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
• Auto-return for patch-up embroidery function.
• Can move an inch in front of the needle bar, and provide more combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
• Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure.
• Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
• Super comfortable space for changing shuttle, easy to convey cloth.
A luxury computerized quilting embroidery machine utilizes advanced computerized technology to offer a wide range of features and capabilities. It may feature a high-resolution touchscreen interface or a user-friendly software interface that allows for easy navigation and customization of embroidery and quilting designs. The machine may also have built-in Wi-Fi or USB connectivity for seamless design transfers.
Technical Parameters :
| Model | YTX2-34F | YTX2-26F |
| Dimension(L*W*H) | 6000*1500*2100mm | 6050*1500*2100mm |
| Quilting width(mm)) | 1700+1700mm | 1700+1700mm |
| Needle/Head | 2 | 2 |
| Heads | 34 | 26 |
| Space between needle | 50.8mm | 67.5mm |
| X-axis movement displacement | 250mm | 250mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 600-1000 | 600-1000 |
| Voltage(AC) |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
| Total power | 5.5KW | 5.5KW |
| Gross weight | 3500KGS | 3500KGS |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.

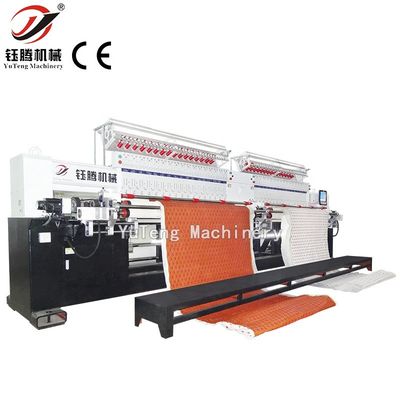

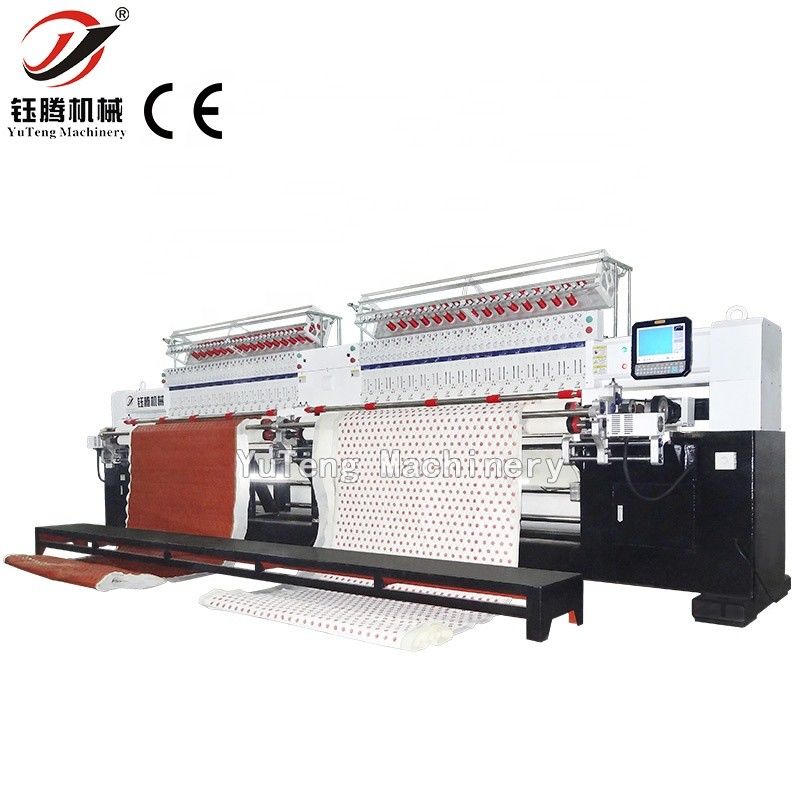

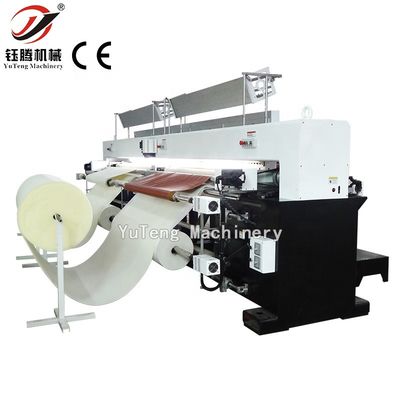

Machine display :

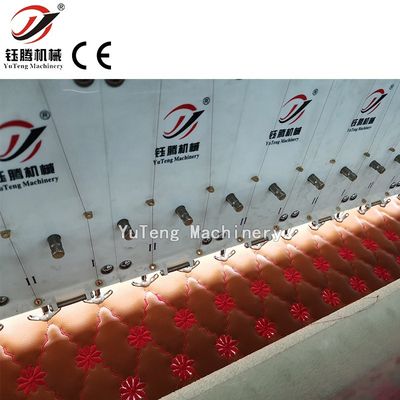

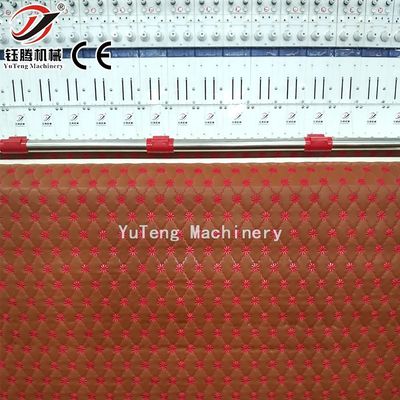

pattern display :
Our company :
