8KW Computerized Multi Needle Quilting Machine For Bedding Seats Covers
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $55,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200 R/min | Max Sewing Thickness: | 80mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 8KW |
| Dimension(L*W*H): | 5050*1600*2300(mm) | Weight: | 5300 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Bedding Computerized Multi Needle Quilting Machine,Seats Covers Computerized Multi Needle Quilting Machine,8KW bedding quilting machine |
||
Product Description
Mattress Machine,Computerized Chain Stitch Multi Needle Quilting Machine
1, New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2, 360°Multi-span and independent patterns,automatic thread trimming function.
3, Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4, computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5, Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6, Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7, Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8, High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9, Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
|
Model |
YT-3200B |
|
Dimension(L*W*H) |
5050mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2";3"+3" |
|
Space between needle |
25.4mm |
|
X-axis movement displacement |
300mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-230(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ |
|
Total power |
8KW |
|
Gross weight |
5300kg |
The 8KW Computerized Multi Needle Quilting Machine is designed for quilting bedding and seat covers with precision and efficiency. It is equipped with advanced features to meet the demands of the factory industry. The machine is manufactured by YuTeng, a reputable brand known for its high-quality quilting machines.

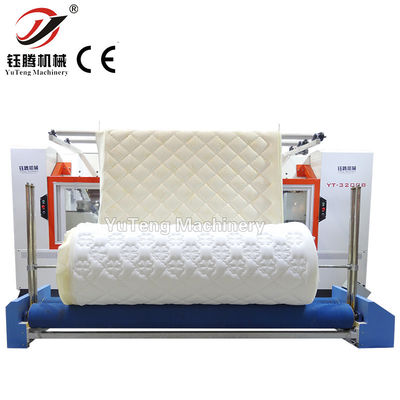

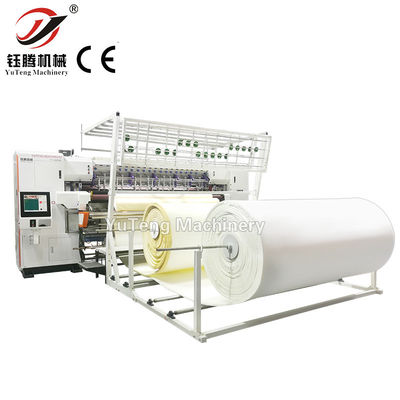

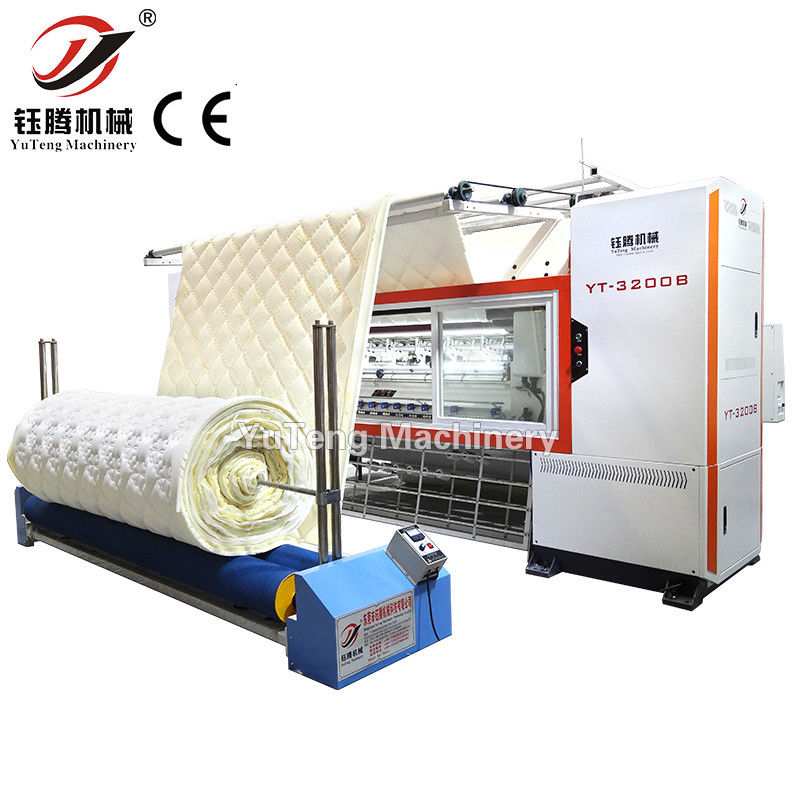

Machine picture:
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Our factory:
Our service :
1. Warranty: One year.
2. Overseas engineers can be sent to install machines and teach you how to use them.
3. We provide quality Before-sales service and after-sales service.
4. We have our own manufacture factory and sales teams and engineers.
5. Visit our Factory.
6. Can provide quilted fabric samples.
