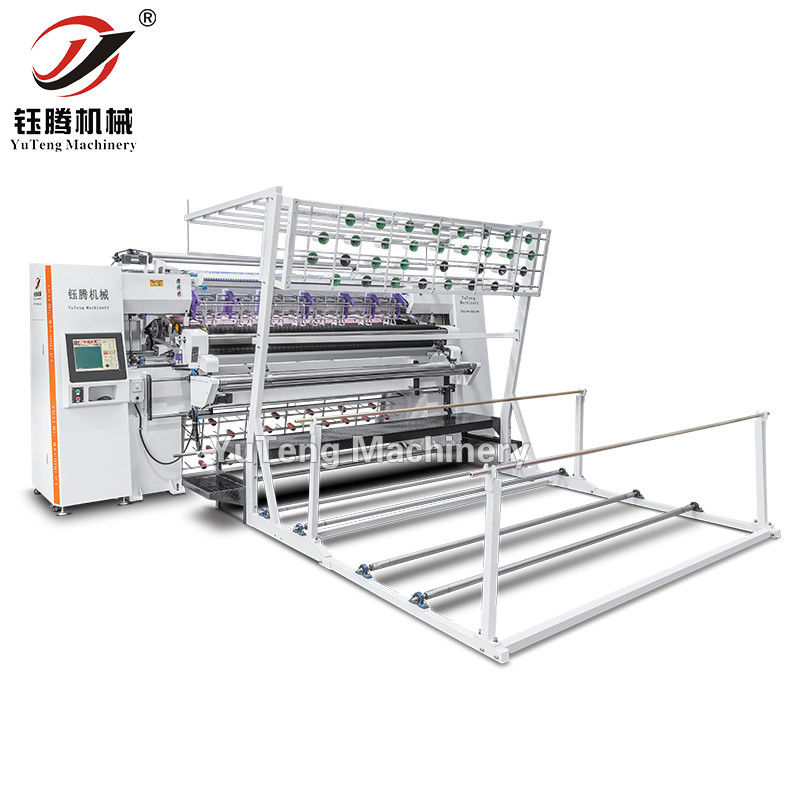

Ultra High-Speed Computerized Chain Stitch Multi-Needle Quilting Machine For Making Mattress
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YT-3500A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 30000-50000 USD/SET |
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Dimension(l*w*h): | 5200*1600*2300MM | Max Sewing Thickness: | 80MM |
|---|---|---|---|
| Weight (KG): | 5000 | Video Outgoing-inspection: | Provided |
| Core Components: | Bearing, Motor, Gear | Max Sewing Speed: | 330m/hour |
| Warranty: | 1 Year | ||
| Highlight: | Computerized Chain Stitch Quilting Machine |
||
Product Description
Product Introduction
It is widely used for quilting advanced mattress,carpet,bedding,blanket,cushion,comforters,bedspreads etc
Machine Features
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameter
| Model | YT-3500A |
| Dimension(L*W*H) | 5200mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+3" |
| Space between needle | 25.4mm/12.7mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 110-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1400(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5000KG |
*Customized model are available to meet client’s various needs
Packaging & Shipping
Generally speaking, the packing can be carried out with film and box, which can be packed according to the customer's requirement.
Our Services
1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory.
4.Training how to instal the machine, training how to use the machine.
5.Engineers available to service machinery overseas.
6.Warranty: 1 year
Machine Details

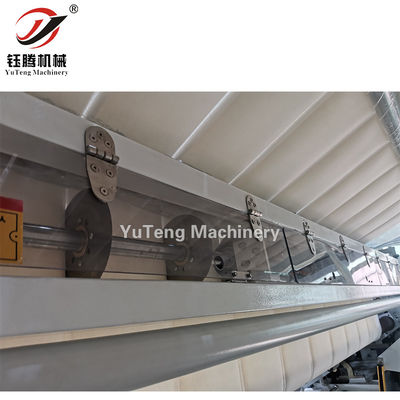

Edge tape cutting structure

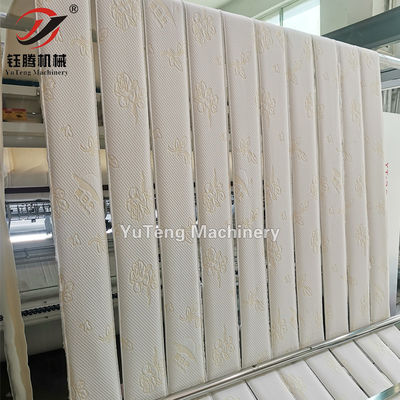

Produce the mattress edge
Steady running, thick material with precise quilting.
Certificate
Company/Workshop
FAQ
Q1:Where is your factory?
A1:Our factories are in Dongguan city,Guangdong province
Q2:How is quality of the quilting machines?
A2:We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Q3:What is the warranty for the quilting machines?
A3:Our machines have a 1-year warranty. Good after-sale service provided, we believe in good customer service all the time.
Welcome to contact with us,for more information of quilting machine.
