computerized Mattress Quilting Machinery Double Chain Stitch Multi Needle
Product Details
Computerized Mattress Quilting Machinery
,Mattress Quilting Machinery Multi Needle
,Double Chain Stitch computerized quilter
Double Chain Stitch Multi Needle Quilter Machine Mattress Manufacturing Machinery
Product main features :
1, New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2, 360°Multi-span and independent patterns,automatic thread trimming function.
3, Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4, computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5, Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6, Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7, Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8, High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9, Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2";3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5200kg |

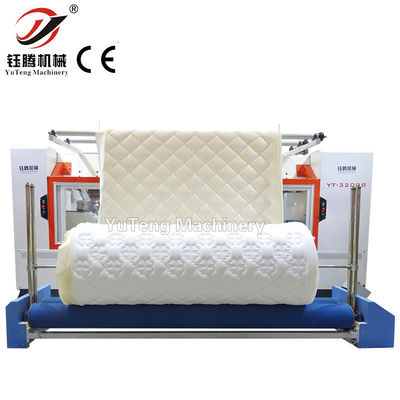

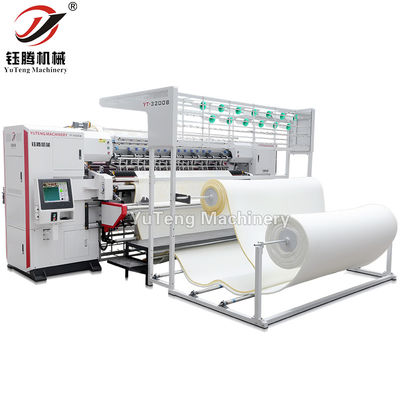

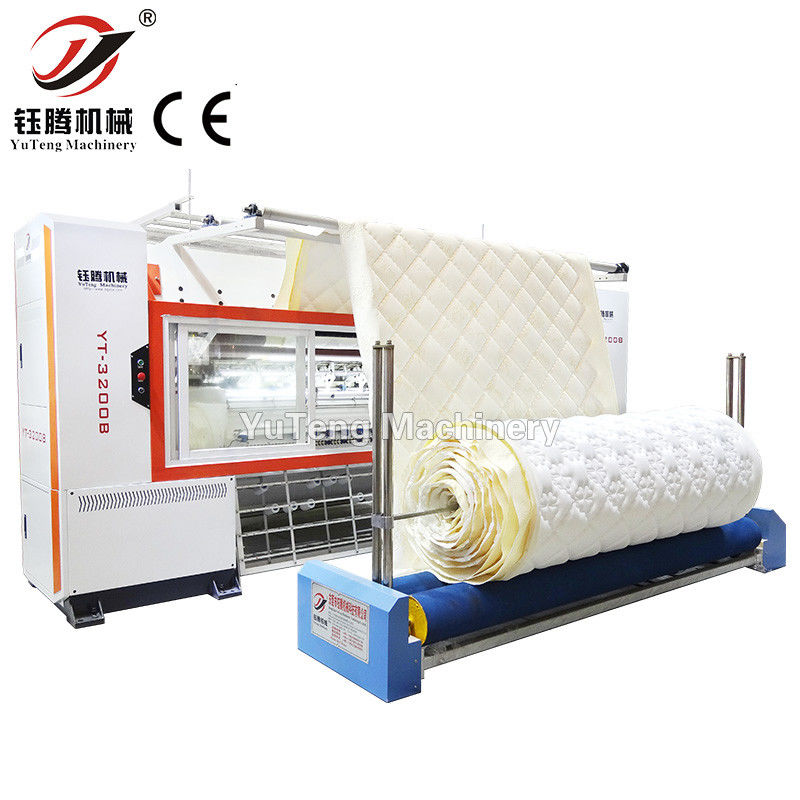

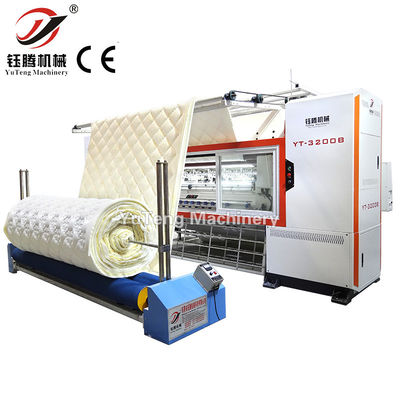

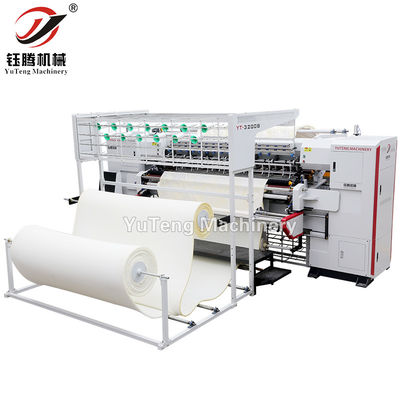

Machine picture:
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Company pictures :
Services:
- Warranty: The product comes with a one-year warranty, providing assurance of its quality and performance.
- Installation and Training: Our skilled engineers can be sent to your location to install the machine and provide training on its operation.
- Before-Sales and After-Sales Support: We offer comprehensive support services, assisting you with any inquiries or issues you may have before and after your purchase.
- Factory Visit: You are welcome to visit our factory to see the machines in operation and discuss your requirements with our sales team.
-
