Industrial Computerized Chain Stitch Quilting Machine 220V 60HZ
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $45,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200 R/min | Max Sewing Thickness: | 80mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 8KW |
| Dimension(L*W*H): | 5050*4600*2300(mm) | Weight: | 5300kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Viet Nam, South Korea |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Industrial Computerized Chain Stitch Quilting Machine,220V Computerized Chain Stitch Quilting Machine,60HZ industrial quilting machine |
||
Product Description
High Speed Computer Industrial Quilting Machine Mattress Making Machines
Product main features :
1, New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2, 360° Multi-span and independent patterns,automatic thread trimming function.
3, Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4, computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5, Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6, Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7, Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8, High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9, Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2";3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5300kg |

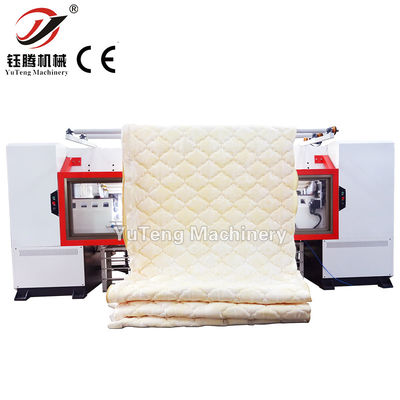

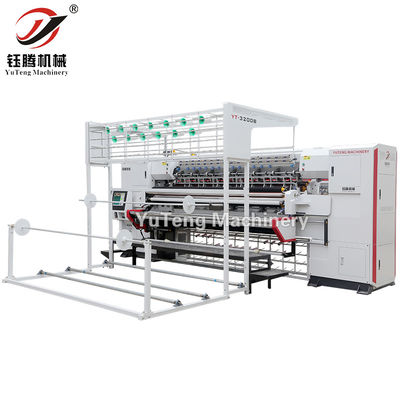

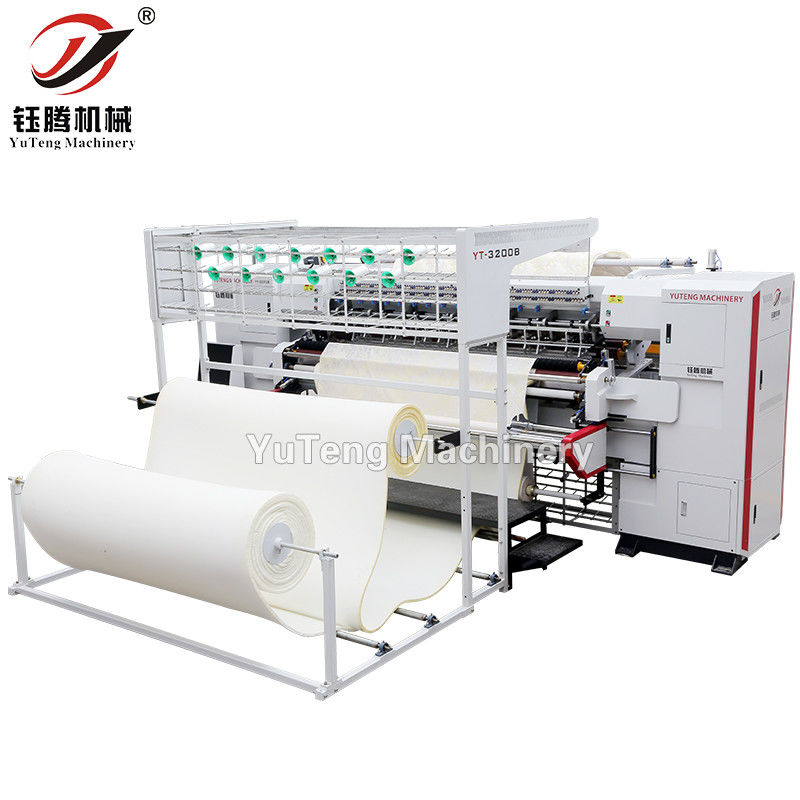

Machine picture:
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Company pictures :
Our Services:
1.Warranty: The Industrial Computerized Sewing and Quilting Machine comes with a one-year warranty, providing assurance and support against any manufacturing defects during this period.
2.Installation and Training: Our company offers the service of sending overseas engineers to install the machines and provide comprehensive training on their usage. This ensures that you receive proper guidance and expertise in utilizing the machine effectively.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
