380V 220V Computerized Sewing Quilting And Embroidery Machine Multi Needle
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $45,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | Not Available |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1200 R/min | Max Sewing Thickness: | 80mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 8KW |
| Dimension(L*W*H): | 5050*4600*2300(mm) | Weight: | 5200 |
| Warranty: | 1 Year, 1 Year | Port: | Shenzhen/Guangzhou |
| Highlight: | computerized sewing quilting and embroidery machine,380V computerized sewing quilting machine,220V computerized sewing quilting machine |
||
Product Description
Computerized Sewing And Quilting Machine Quilting Machinery Computerized Sewing And Quilting Machine
1,New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2,360°Multi-span and independent patterns,automatic thread trimming function.
3,Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file,easy to operation.
4,computer host adopt the most advanced embedded operating system and self-developed motion control chip,fast response speed,long service life,good stability .
5,Spindle driven by servo motor,it is able to change speed and positive inversion,cooperate with software to complete the slice thread trimming function
6,Adopt international advanced slice thread trimming function :effectively reduce the probability thread jump,more stable.
7,Strong functions of pattern-combining and multi-span(Tack&jump)quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8,High rigid machine body,high running speed,balance running ,high precision,lower rate jump threads,perfect pattern stitch.
9,Infrared safety protection and Auto-stop sensors detection function.
Technical parameters :
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | 80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ |
| Total power | 8KW |
| Gross weight | 5300kg |

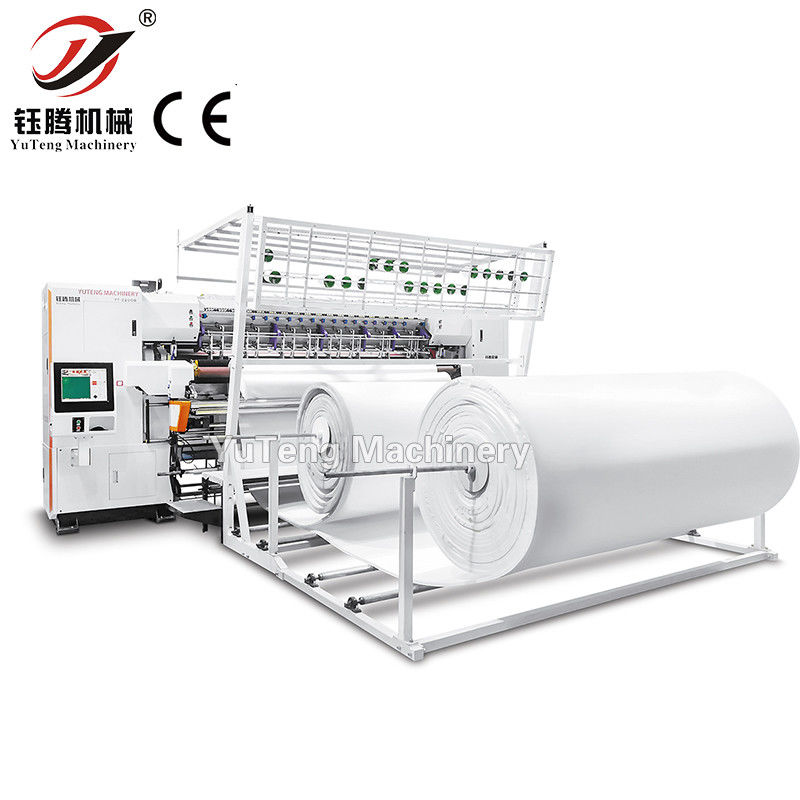

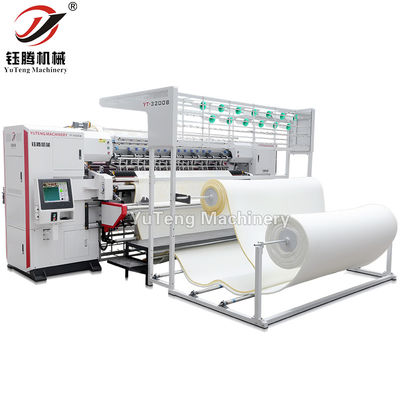

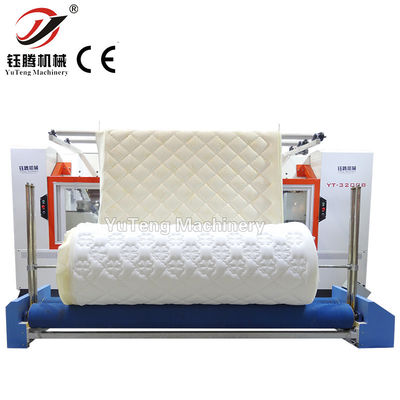

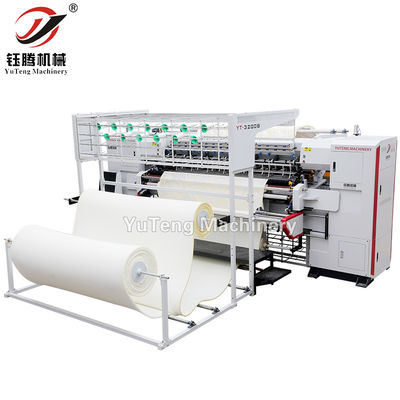

Machine picture:
Purpose :
Mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers, decoration and more.
Certificate :
Company pictures :
Our Services:
-
Warranty: The Industrial Computerized Sewing and Quilting Machine comes with a one-year warranty, providing assurance and support against any manufacturing defects during this period.
-
Installation and Training: Our company offers the service of sending overseas engineers to install the machines and provide comprehensive training on their usage. This ensures that you receive proper guidance and expertise in utilizing the machine effectively.
-
Before-Sales and After-Sales Service: We prioritize customer satisfaction and provide high-quality before-sales and after-sales service. Our dedicated team is available to address any inquiries, provide product information, and assist you throughout the purchasing process. Additionally, we offer ongoing support and troubleshooting assistance after the sale.
-
Manufacturing and Sales Teams: We have our own manufacturing factory with experienced engineers and skilled technicians. Our sales teams are knowledgeable about the product and can provide detailed information, guidance, and assistance in choosing the right machine for your specific requirements.
-
Factory Visit: We welcome you to visit our factory to witness our manufacturing process, observe the quality control measures we have in place, and gain a deeper understanding of our products. This visit will allow you to have a firsthand experience of our capabilities and the technology behind our Industrial Computerized Sewing and Quilting Machines.
