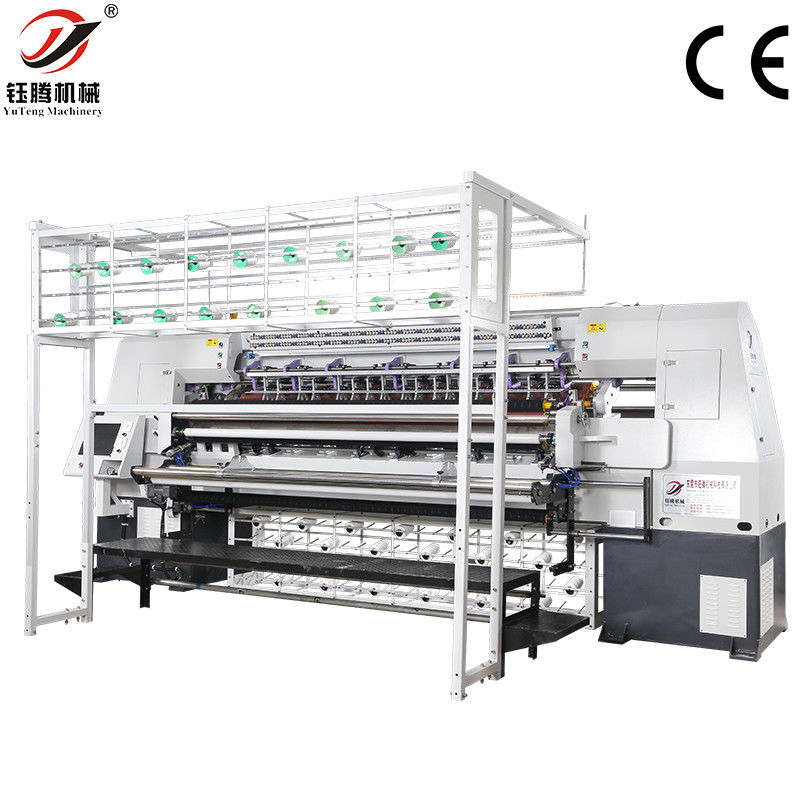

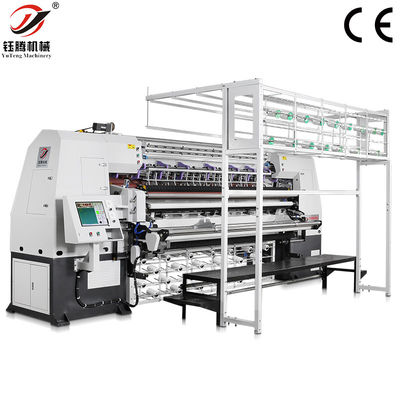

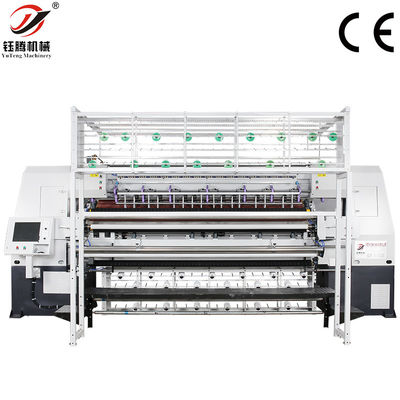

1200RPM Computerised Quilting Machine For Blanket Mattress Sleeping Bags
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 1200r/min |
|---|---|---|---|
| Max Sewing Thickness: | 80mm | Number Of Head: | Multi Needle |
| Moving Style: | Roller | Voltage: | 380V/52HZ, 220V/60HZ |
| Power: | 8kw | Dimension(L*W*H): | 5300*1600*2300mm |
| Weight: | 5500kg | Warranty: | One Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Quilting Width: | 2450mm |
| Needle Rows: | 3 | Space Between Needle Rows: | 3"+2";3"+3" |
| Space Between Needle: | 25.4mm | X-axis Movement Displacement: | 305mm |
| Stitch Length: | 1-12mm | Speed Of Operation: | 60-230m/hour |
| Model Of Needle: | 21# 22# 23# 24# | Port: | Shenzhen |
| Highlight: | Mattress Computerised Quilting Machine,Blanket Computerised Quilting Machine,1200RPM quilting mattress machine |
||
Product Description
1200RPM Computerized Blanket Mattress Sleeping Bags Quilting Machine For Sale
Product Application
Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more
Main Features
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.

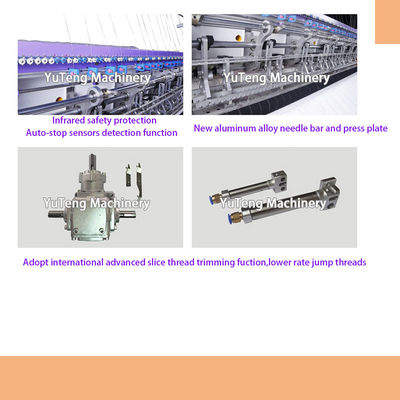

10. Infrared safety protection and Auto-stop sensors detection function
Infrared safety protection and Auto-stop sensors detection function
New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
The spindle, X, Y axis all adopt high-power servo motor
Mr. Xiaoke Hu, the founder of YuTeng Machinery, is a highly experienced and reputable figure in the quilting machinery industry. With over 20 years of engagement in the field, he possesses extensive knowledge of advanced manufacturing technology and is known for his unique designs and innovative solutions. His brand has gained significant recognition and enjoys strong sales both domestically and internationally.
Under Mr. Hu's leadership, YuTeng Machinery has established itself as a reliable provider of quilting machines, offering innovative technology, stable product quality, and excellent after-sales service. The company boasts a dedicated R&D team comprising more than 20 professional engineering and technical personnel. Additionally, they have a widespread network of customer service outlets throughout the country, ensuring comprehensive technical support and impeccable customer service for clients.
In summary, Mr. Xiaoke Hu's expertise, along with YuTeng Machinery's commitment to innovation, quality, and customer satisfaction, has solidified their position as a leading player in the quilting machinery industry.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*warranty: 1 year
