Multi Needle Computerized Quilting Embroidery Machine High Speed 900rpm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
Payment & Shipping Terms:
| Price: | $10,000.00 - $30,000.00/sets |
|---|---|
| Packaging Details: | Film packaging |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Maximum Speed: | 900 RPM | Applicable Industries: | Factory Use |
|---|---|---|---|
| Condition: | New | Type: | Flat Embroidery Machine |
| Operation: | Computerized | Warranty: | 1 Year, 1YEAR |
| Key Selling Points: | High-accuracy | Power: | 5.5KW |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Not Available |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC |
| Weight (KG): | 3500 KG | Port: | Shenzhen/Guangzhou |
| Highlight: | Multi Needle Computerized Quilting Embroidery Machine,Computerized Quilting Embroidery Machine High Speed,900rpm embroidery multi needle machine |
||
Product Description
Computerized Quilting Embroidery Machine High Speed Computerized Multi Needle Quilting Embroidery Machine
♦ Product main features :
• Quilting and embroidery is completed together.
• Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
• Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
• Auto-return for patch-up embroidery function.
• Can move an inch in front of the needle bar, and provide more combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
• Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure.
• Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
• Super comfortable space for changing shuttle, easy to convey cloth.
Technical Parameters :
| Model | YT-1330H | YT-1250H | YT-1220H |
| Dimension(L*W*H) | 5300*1450*2100mm | 5300*1450*2100mm | 5300*1450*2100mm |
| Quilting width(mm)) | 3300mm | 3300mm | 3300mm |
| Needle/Head | 2 | 2 | 2 |
| Heads | 33 | 25 | 22 |
| Space between needle | 50.8mm | 67.5mm | 76.2mm |
| X-axis movement displacement | 250mm | 250mm | 250mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 600-1000 | 600-1000 | 600-1000 |
| Voltage(AC) |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 3500KGS | 3500KGS | 3500KGS |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.

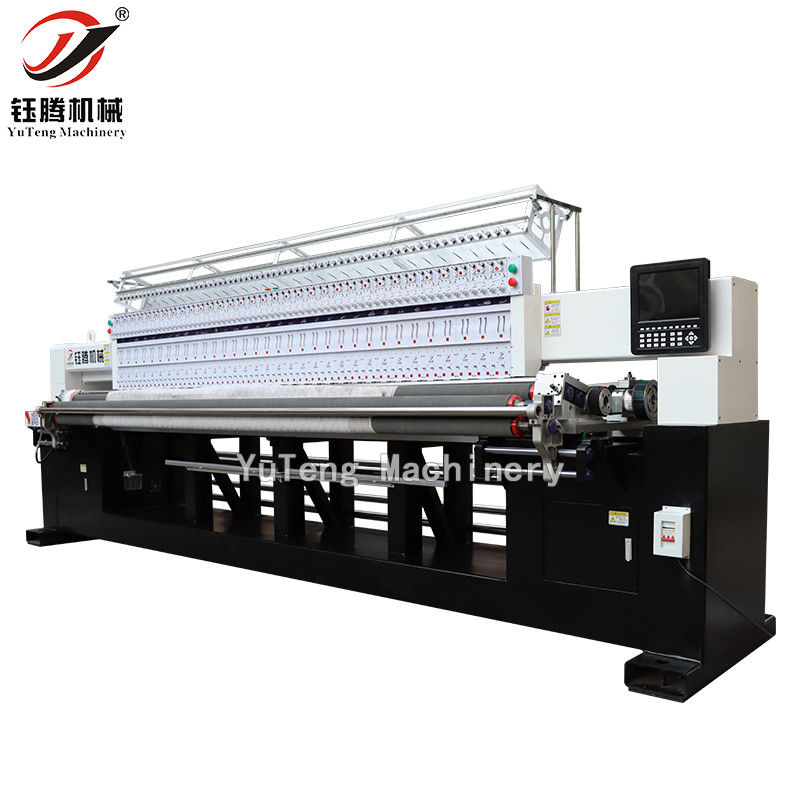

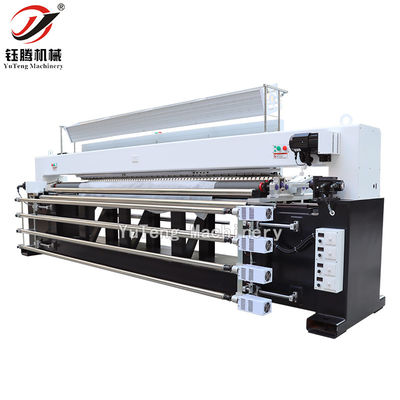

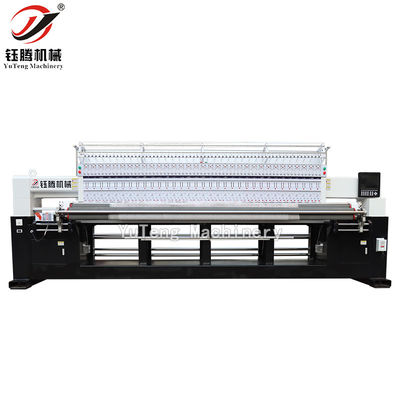

Machine display :
pattern display :
Our company :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
