Industrial Computerized Quilting And Embroidery Machine Multi Head Multifunctional
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Price: | $35,000.00/sets 1-1 sets |
|---|---|
| Packaging Details: | The wooden case |
|
Detail Information |
|||
| Maximum Speed: | 850 RPM | Applicable Industries: | Other |
|---|---|---|---|
| Condition: | New | Type: | Large Embroidery Machine |
| Operation: | Computerized | Overall Dimensions: | 6000*1500*2100mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Power: | 5.5KW | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Worktable Size: | 6000*1500MM |
| Head Interval: | 250mm | Weight (KG): | 3500 KG |
| Product Name: | Computerize Double Head Embroidery Machine | ||
| Highlight: | Computerized Quilting Embroidery Machine Multi Head,Computerized Quilting Embroidery Machine Multifunctional,Industrial multi head quilting machine |
||
Product Description

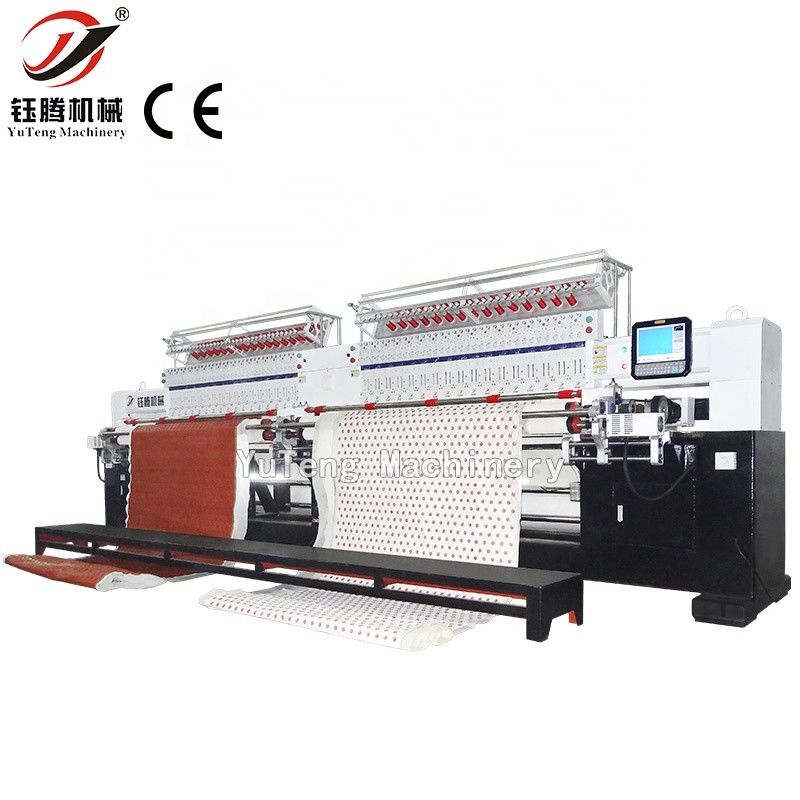

Computerized Quilting Embroidery Machine High Speed Multi Head Quilting Embroidery Machine
• Quilting and embroidery is completed together.
• Independent research and development of the operating system, with the latest embedded operating system and self-researched
motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
• Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
• Auto-return for patch-up embroidery function.
• Can move an inch in front of the needle bar, and provide more combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling
rack.
• Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure.
• Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
• Super comfortable space for changing shuttle, easy to convey cloth.
| Model | YTX2-34F | YTX2-26F | ||
| Dimension(L×W×H) | 6000*1500*2100mm | 6050*1500*2100mm | ||
| Quilting width | 1700mm+1700mm | 1700mm+1700mm | ||
| Needle/Head | 2 | 2 | ||
| Heads | 34 | 26 | ||
| Space between needle | 50.8mm | 67.5mm | ||
| X-axis movement displacement | 250mm | 250mm | ||
| Stitch length | 1-12.7mm | 1-12.7mm | ||
| Model of needle | 9#,16# | 9#,16# | ||
| Quilting speed | 600-1000 | 600-1000 | ||
| Voltage(AC) | 380V/50HZ
220V/60HZ
|
380V/50HZ
220V/60HZ
|
||
| Total power | 5.5KW | 5.5KW | ||
| Gross weight | 3500KG | 3500KG |
