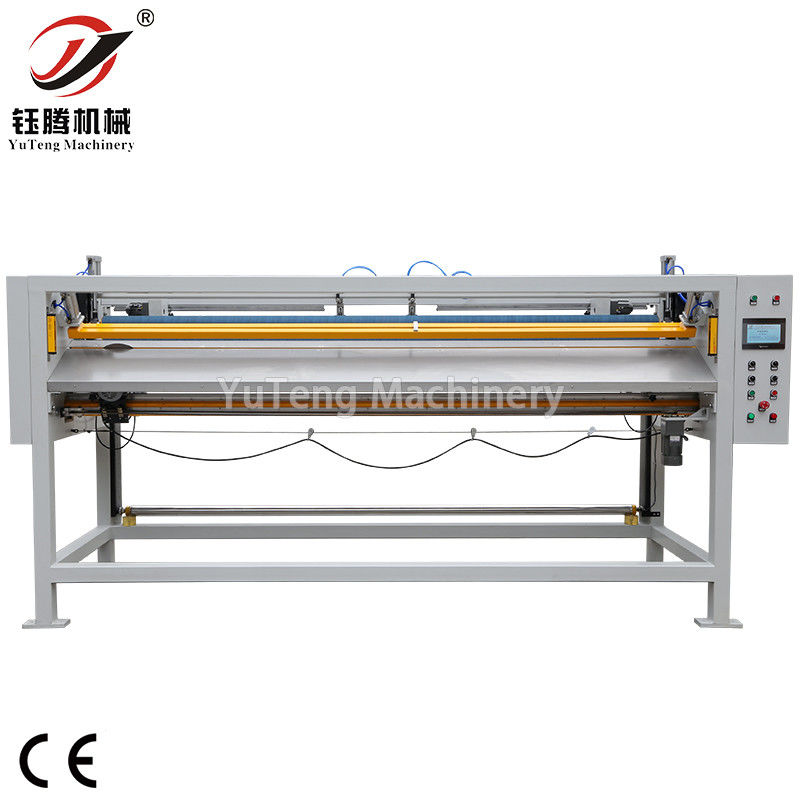

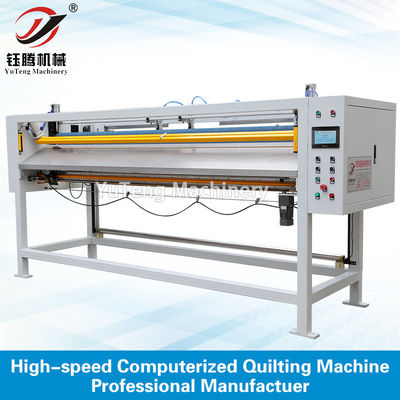

Electric Controlled Computerized Cutting Machine For Mattress 2.6KW
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
Payment & Shipping Terms:
| Price: | $9,000.00 - $10,000.00/sets |
|---|---|
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Other | Weight (KG): | 650 |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Electric Computerized Cutting Machine,Computerized Cutting Machine 2.6KW,Mattress computer cutting machine |
||
Product Description
Computerized Cutting Machine Electric Controlled Computerized Cutting Machine For Length And Width Adjustments
Computerized cutting machines often incorporate intelligent nesting algorithms. These algorithms analyze the cutting patterns and optimize material usage by minimizing waste and maximizing the number of cuts per material sheet. This feature helps reduce material costs and increases overall production efficiency.
Customizability and Flexibility: These machines offer a high degree of customizability and flexibility to meet specific cutting requirements. Users can easily adjust cutting parameters such as cutting speed, depth, and blade pressure based on the material being cut. The machines may also have the capability to handle complex shapes, curves, and intricate designs, allowing for versatility in cutting applications.
Technical Parameters :
| Edge trim/ Slitters | The Max.X dimesion: | 2300mm |
| The Max.X dimesion: | 300mm | |
| Edge trim | The Max.X dimension: | 2300mm |
| Power supply: | 380V/50HZ | |
| 220V/60HZ | ||
| Machine dimension(L*W*H): | 3700mm*1100mm*1850mm | |
| Weight: | 1300kg | |
| Operating air preasure: | 0.4~0.8Mpa | |
| Thickness: | 3-80mm | |
| Speed: | 10(M/Min) | |
| Power: | 2.6KW |
|
Product main features :
1, 7”touch screen,large screen for ease of operation
2, Hidden slitting blades are more convenient and safer
3, Electric controls for length and width of cross cut which make operations more human
4, Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil
5, Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.
Purpose :
It is used to crosscut,slitting and edge trimming the quilted fabric,and usually works in tandem with
the quilting machine and rolling device,but it can also run alone.

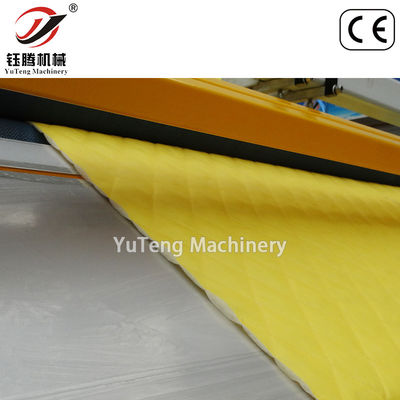

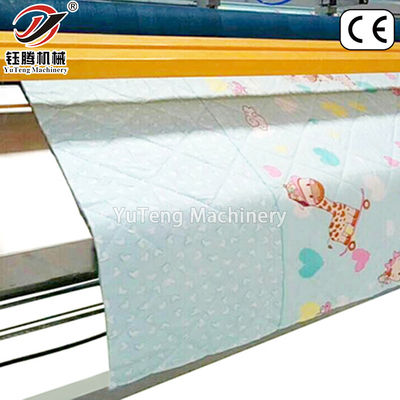

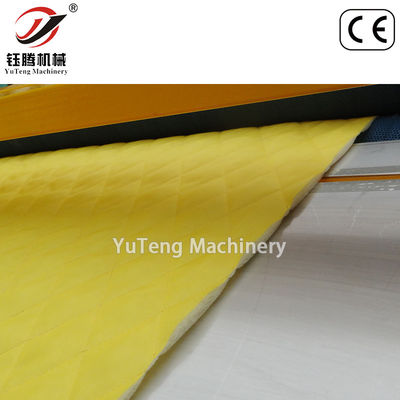

Effect diagram :
Certificate :
Company pictures :
1. Delivery Time: Within 35 days upon receipt of 30% deposit
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4. After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
6.Customized Model are available to meet client's various needs.
