Computerized panel cutting machine, Panel Cutter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Weight: | 1150 KG | Dimension: | 3800 X 1280 X 2300 Mm |
|---|---|---|---|
| Cutting Length: | 600-2100 Mm Or Unlimited | Cutting Width: | 80-2600 Mm |
| Thickness: | 60 Mm | Speed: | 10 M/min |
| Power: | 3.2 KW | Air Pressure: | 0.4-0.8 Mpa |
| Voltage: | 380V/50HZ,220V/60HZ,3-Phase | Core Components: | PLC, Motor |
| Screen Size: | 7-inch | Operation Modes: | Photoelectric Sensor Mode, Encoder Mode |
| Blade Type: | Double Blades | Container Size: | 20GP |
| Sliding Board: | Yes | ||
| Highlight: | Computerized panel cutting machine with warranty,Panel cutter for precise cuts,Computerized cutting machine for panels |
||
Product Description
Computerized Panel Cutting Machine (Panel Cutter)
Technical Specifications
| Dimension (L x W x H) | 3800 x 1280 x 2300 mm |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 1150 KG |
Key Features
- User-friendly operation via 7-inch touch screen interface
- Dual operation modes: photoelectric sensor and encoder for versatile material cutting
- Double blade system ensures precise edge cutting
- Compatible with quilting machines or standalone operation
- Space-saving sliding board design optimizes factory floor space
- Compact shipping design fits with quilting machine in one 20GP container

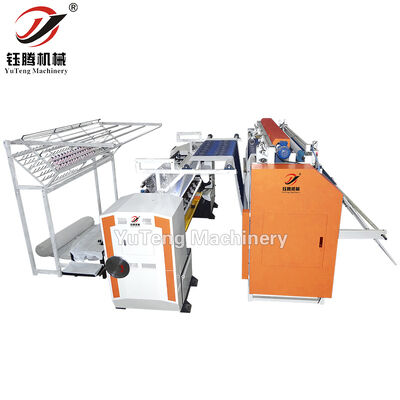

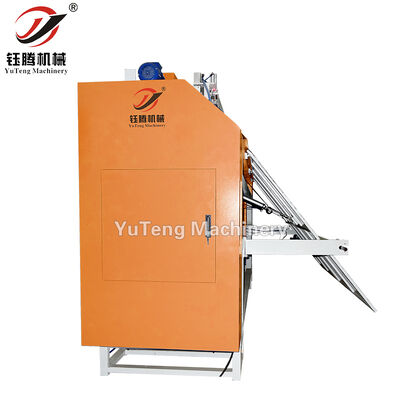

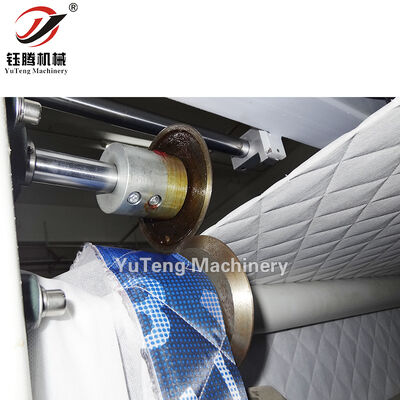

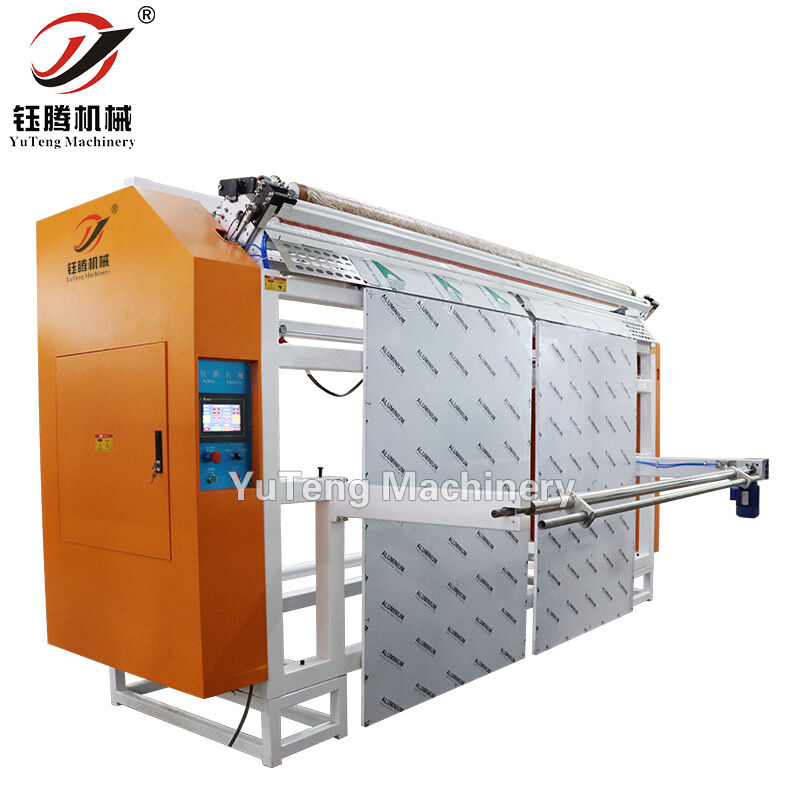

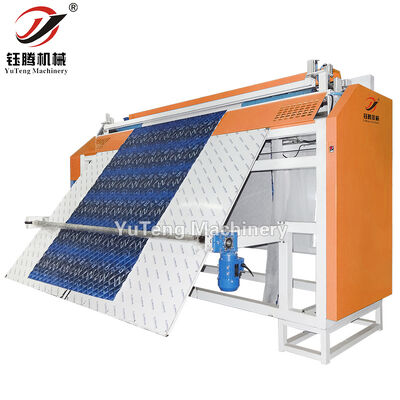

Machine Gallery
