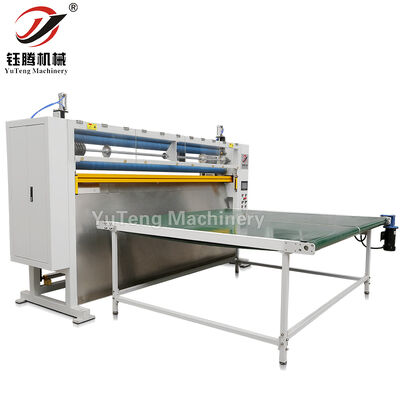

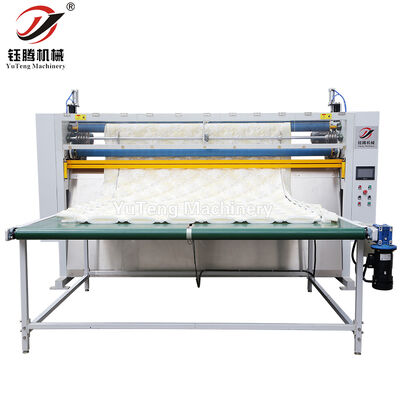

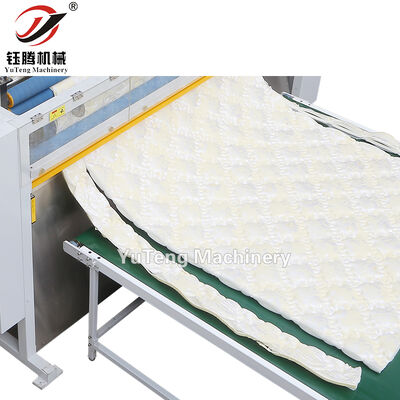

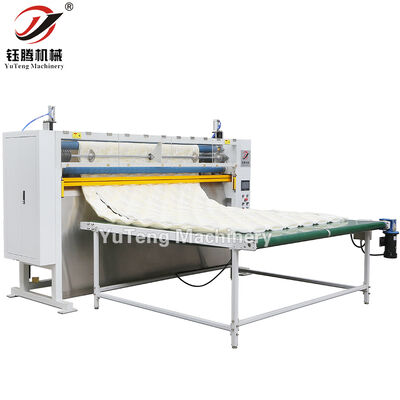

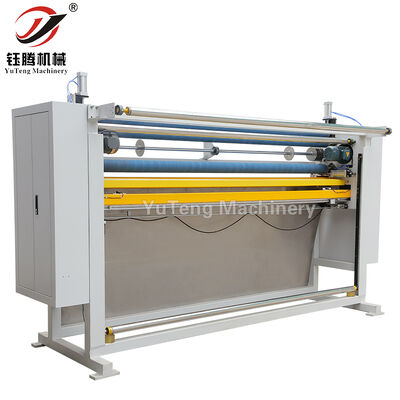

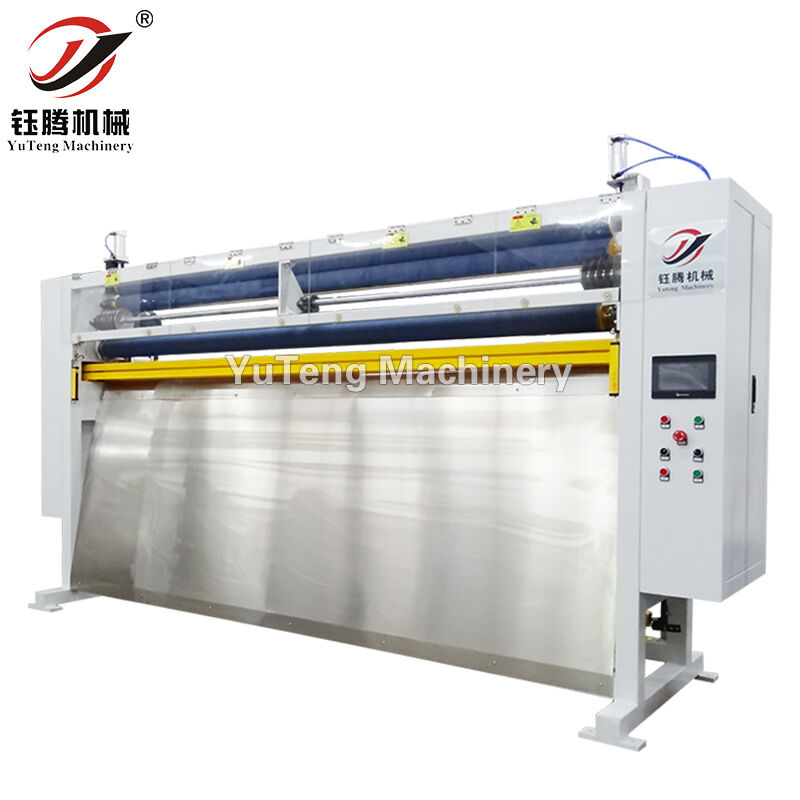

Automatic Mattress Quilting Fabric Panel Cutting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Screen Size: | 7" Touch Screen | Hidden Slitting Blades: | Yes |
|---|---|---|---|
| Electric Controls: | Length And Width | Feed-in Top: | With Article Points |
| Y-dimension Encoder: | For Counting Length | Dimensions: | 3700x1200x1940 Mm |
| Cutting Length: | 600-2100 Mm Or Unlimited | Cutting Width: | 80-2400 Mm |
| Thickness: | 60 Mm | Speed: | 10 M/min |
| Power: | 2.6 KW | Air Pressure: | 0.4-0.8 Mpa |
| Voltage: | 380V/50HZ, 220V/60HZ, 3-Phase | Weight: | 950 KG |
| Core Components: | PLC, Motor | ||
| Highlight: | automatic mattress quilting machine,computerized fabric panel cutter,quilting fabric cutting machine with warranty |
||
Product Description
Automatic Mattress Quilting Fabric Panel Cutting Machine
Product Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for enhanced convenience and safety
- Electric controls for precise length and width adjustments
- Feed-in top with pressure rollers for even material handling
- Y-dimension encoder for accurate length measurement
- Conveyor belt mechanical discharge for efficient material handling
Purpose
This machine is designed for crosscutting, slitting, and edge trimming of quilted fabric. It can operate in tandem with quilting machines and rolling devices or function independently.
Technical Specifications
| Dimension (L x W x H) | 3700 × 1200 × 1940 mm |
|---|---|
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2400 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 2.6 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ, 220V/60HZ, 3-Phase |
| Weight | 950 KG |
Product Demonstration
Certification
Manufacturing Facility
Want to Know more details about this product
