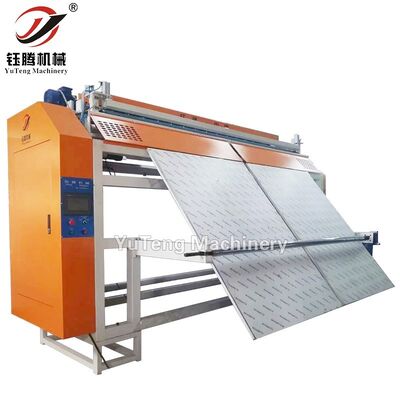

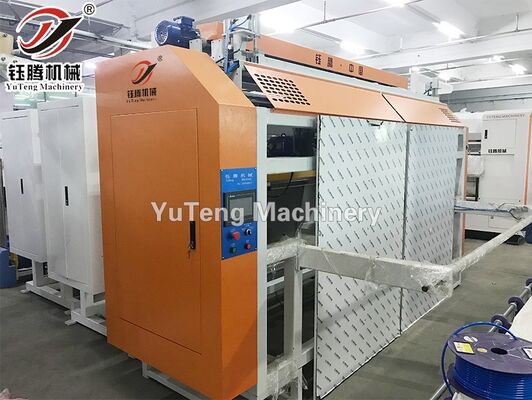

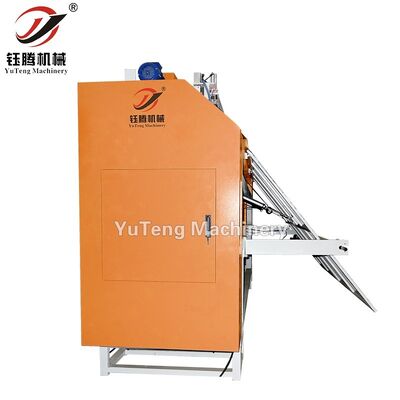

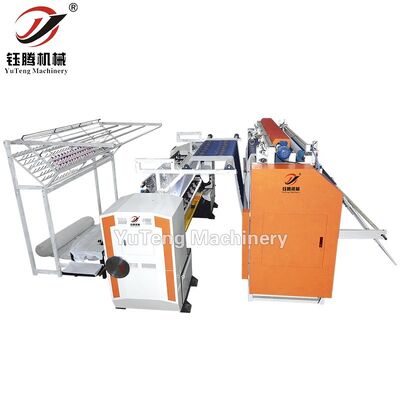

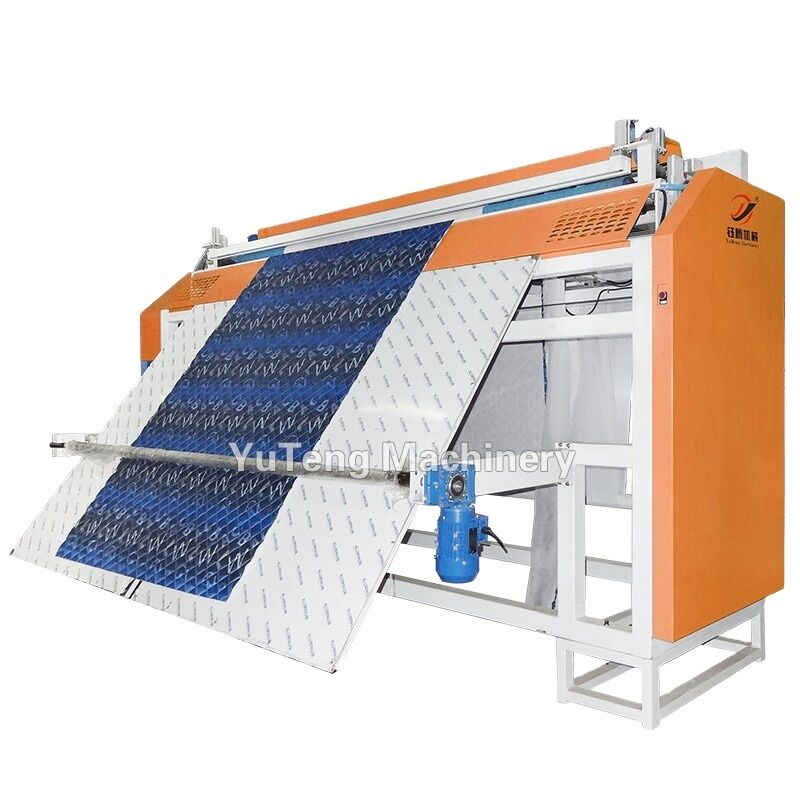

Computerized Panel Cutter Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $9,200-10,000 |
|
Detail Information |
|||
| Production Capacity: | 10m/min | Voltage: | 220V/380V |
|---|---|---|---|
| Power: | 2.6KW | Dimension: | 3800*1200*2350mm |
| Weight: | 1150 KG | Effective Cutting Length: | 600-2100 Mm Or Unlimited |
| Effective Cutting Width: | 80-2600 Mm | Thickness: | ≦60 Mm |
| Speed: | 10 M/minute | Air Pressure: | 0.4-0.8 Mpa |
| Model: | YTCM96-H | Core Components: | Motor |
| Automatic Grade: | Automatic | Touch Screen Size: | 7-inch |
| Knife Type: | Double Blade Edge | ||
| Highlight: | computerized panel cutter machine,computerized cutting machine with warranty,precision panel cutter machine |
||
Product Description
Computerized Panel Cutter Machine
Product Parameters
| Model | YTCM96-H |
|---|---|
| Dimension (L x W x H) | 3800*1280*2350(mm) |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | ≦60 mm |
| Speed | 10 m / minute |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ,220V/60HZ,3-Phase |
| Weight | 1150 KG |
Key Features
7-inch touch screen interface with Chinese/English conversion for easy operation
Dual operating modes: photoelectric sensing and encoder for versatile material cutting
Double blade edge knife ensures precise edge cutting
Can operate independently or with quilting machines
Space-saving sliding board design
Electric constant length adjustment for cutting dimensions
Synchronous pressing rod for even pressure and smooth feeding
Optimized box-shaped frame structure for improved cutting quality and efficiency
Large knife disc flying cutting mode for adjustable splattering
All CE certified components for extended machine lifespan
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. is a high-tech enterprise specializing in computerized quilting and cutting machinery. With over 20 years of industry experience under founder Mr. Xiaoke Hu, we manufacture high-speed computerized shuttle quilting machines, double rows computerized quilting and embroidery machines, computerized panel cutter machines, and rolling machines. Our products serve garment, bedding, handbag, and household ornament industries worldwide. Backed by a strong R&D team of over 20 professionals, we provide comprehensive technical support and after-sales service while maintaining innovative technology and stable product quality.
Packaging
Certifications
Want to Know more details about this product
