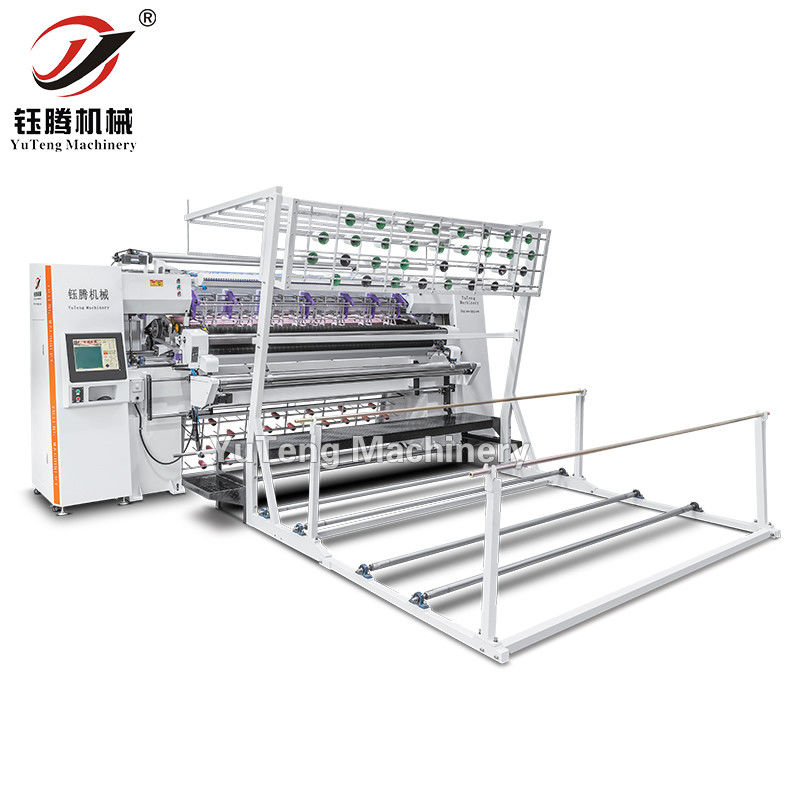

High Speed Computerized Multi-needle Shuttleless Mattress Manufacture Quilting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 27000-40000 USD/SET |
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type Of Quilting: | Computer Multi-needle Quilting Machine | Application: | Mattress,Bedding Set,Duvet,Blanket |
|---|---|---|---|
| Core Components: | Bearing, Motor | Video Outgoing-inspection: | Provided |
| Dimension(L*W*H): | 5050*1600*2300mm | Max Sewing Thickness: | 80MM |
| Warranty: | One Year | ||
| Highlight: | Multi-Needle Mattress Quilting Machine,Shuttleless Mattress Quilting Machine,High Speed Mattress Quilting Machine |
||
Product Description
Computer Non-shuttle Multi-needle Mattress Quilting Machine
It is widely used for quilting advanced mattress,bedding products,carpets and cushions etc.
Specification:
|
Model |
YT-3200B |
|
Dimension(L*W*H) |
5050mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2"; 3"+3" |
|
Space between needle |
25.4mm |
|
X-axis movement displacement |
305mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-260(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
100-1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
8KW |
|
Gross weight |
5500KG |
*Customized model are available to meet client’s various needs
Function:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Packing&Shipping:
All our machines are packed with standard elastic film and paper board before shipment
Our Services:
For peace of mind, we offer a one-year warranty to resolve customer questions. During the warranty period, customers can replace new parts free of charge. Technicians are always online to assist, and we will quickly resolve any problems encountered. In line with our philosophy, customers have the right to own a machine that is durable and gets the job done hassle-free. High quality and excellent service are the best reward for customers' trust and confidence.
Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
