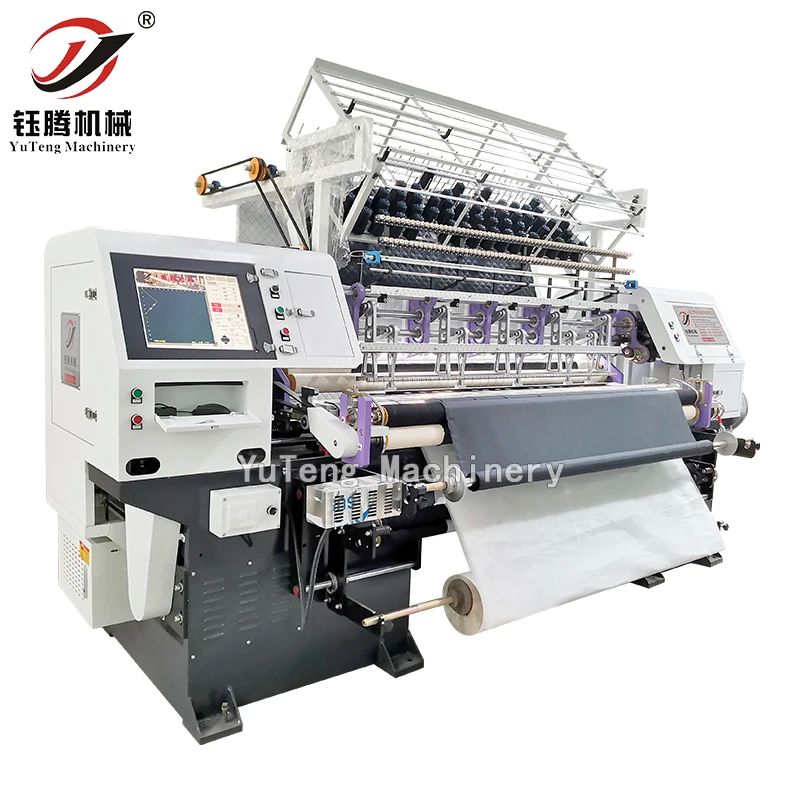

High-speed Computerized Multi-needle Shuttle Quilting Machine for Sheet Bedspread Making
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB96 series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | plastic film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Function: | Summer Quilt , Blanket ,Sleepbag | Number Head: | Multi Needle |
|---|---|---|---|
| Max Sewing Speed: | 1000RPM | Max Sewing Thickness: | 25MM |
| Work Width: | Within 2450MM | Machine Dimension（L*W*H)）: | 4800*1200*1800MM |
| Gross Weight: | 4600KG | ||
| Highlight: | Sheet Bedspread Making Quilting Machine,Sheet Bedspread Shuttle Quilting Machine |
||
Product Description
Computer Shuttle Quilting Machine
Machine Purpose:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, straight lines/square/diamond quilts and Wall decoration etc.
Machine Features:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Technical Parameters:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6 |
| Dimension(L * W * H) | 4800mm*1200mm*1800mm | 4800mm*1200mm*1800mm |
| Quilting width | 2450mm | 2450mm |
| Number of needle rows | 2 | 3 |
| Space between needle rows | 3" Inch | 3"+1”/1.5”/2”/3”Inch |
| Space between needle | 25.4mm | 25.4mm |
| X-Trip | 228.6mm | 228.6mm |
| Quilting thickness | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm |
| Production speed (m/h) | 20-160 (m/h) | 20-160 (m/h) |
| Shuttle model | 7#,10# | 7#,10# |
| Needle model | 14#,16#,19# | 14#,16#,19# |
| Quilting speed | 100-1000 (rpm) | 100-1000 (rpm) |
| Voltage (AC) | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase |
| Power | 5.5KW | 5.5KW |
| Weight | 4600KG | 4600KG |
Product Detail:
Enterprise Certificate:
Packaging & Transportation:
Warranty:
1. All parts are guaranteed one year for non-human-made damage
2. Before buying, our businessman online 12 hours every working day to answer your questions
3. In production,production pictures and videos are available any time
4. After buying,our engineer online 8 hours every working day to help you use machine correctly
5. We provide details machine installation & user’s guide and maintenance manual
About Us:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
