Factory Use Computerized Quilting Machine Bedding Sewing Machine For Home Textile Produce
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | one SET |
|---|---|
| Price: | FOB 20000-50000 USD/SET |
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Computer Quilting Machine | Style: | Chain Stitch |
|---|---|---|---|
| Machine Function: | Mattress Quilting | Working Width: | 2450MM |
| Computer Language: | English,Spanish,Russian... ... | Machine Feature: | Tack & Jump Quilting |
| Experience: | Manufacturer Since 2013 | ||
| Highlight: | Factory Use Computerized Quilting Machine,Bedding Sewing Computerized Quilting Machine,Home Textile Produce Quilting Machine |
||
Product Description

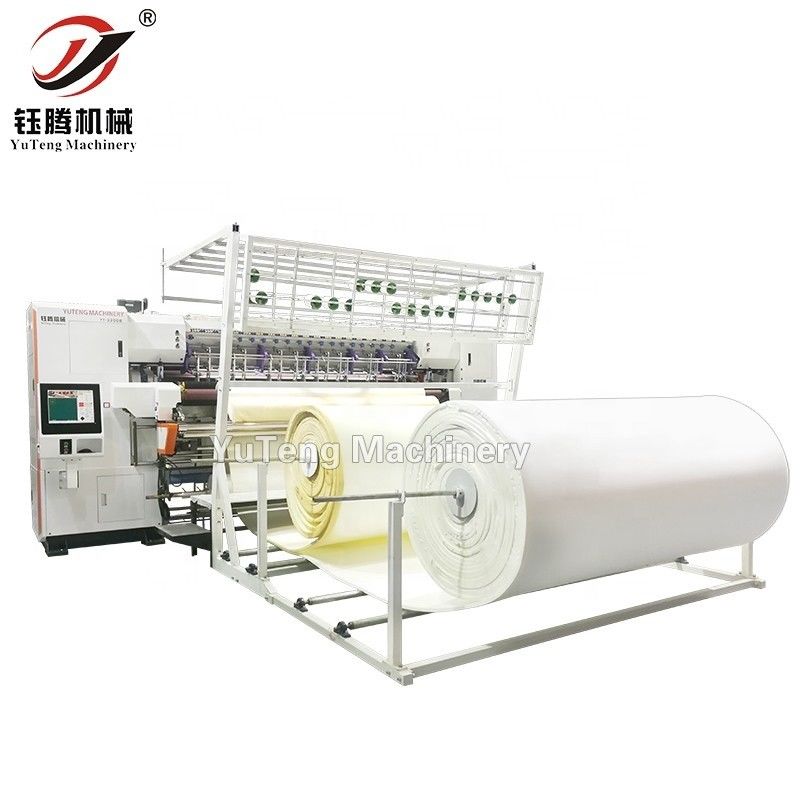

Computerized Industial Multi Needle Mattress Quilting Machine
The machine is mainly used for quilting mattresses,home textiles,carpets,windbreakers,sleeping bags and pet mats
Main Functions:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Parameter:(Unit:mm)
|
Model |
YT-3200B |
|
Dimension(L*W*H) |
5050mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2"; 3"+3" |
|
Space between needle |
25.4mm |
|
X-axis movement displacement |
305mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-230(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
8KW |
|
Gross weight |
5200KG |
Connect With Cutting Machine:

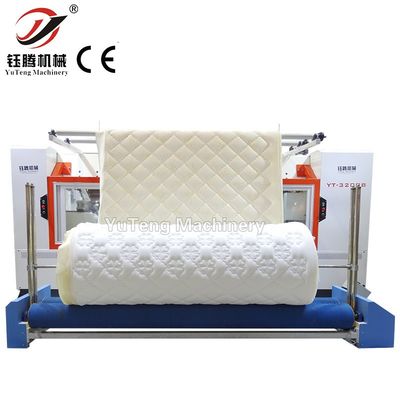

Connect With Roller Machine:
Quilted Samples:
Quality Management:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
After-sales Support:
*Inquiry and consulting support.
*Sample testing support.
*View our Factory.
*Engineers available to service machinery overseas.
*warranty: 1 year
About us:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Welcome to contact with us,for more information of quilting machine
