Industry High Speed Chain Stitch Multi Needle Quilting Sewing Blanket Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Product: | Mattress Panel，Mattress Pads，Bedding，Blankets Etc | Dimension(l*w*h): | 5000*1600*2300MM |
|---|---|---|---|
| Quilting Width: | 2450MM | Max. Quilting Thickness: | 8CM |
| Production Speed: | 60-230m/h | Rotation Speed: | 100-1000RPM |
| Stitch Length: | 2-12 MM | ||
| Highlight: | Chain Stitch Quilting Sewing Blanket Machine,Multi Needle Quilting Sewing Blanket Machine,Industry multi needle sewing machine |
||
Product Description
Shuttleless Multi-needle Computerised Quilting Machine

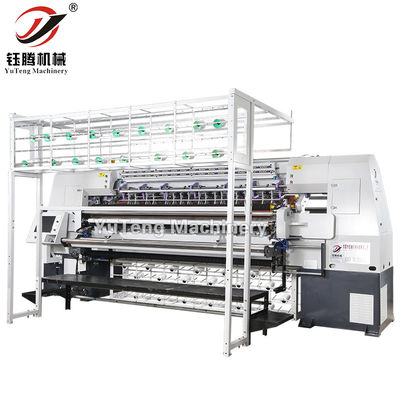

Front

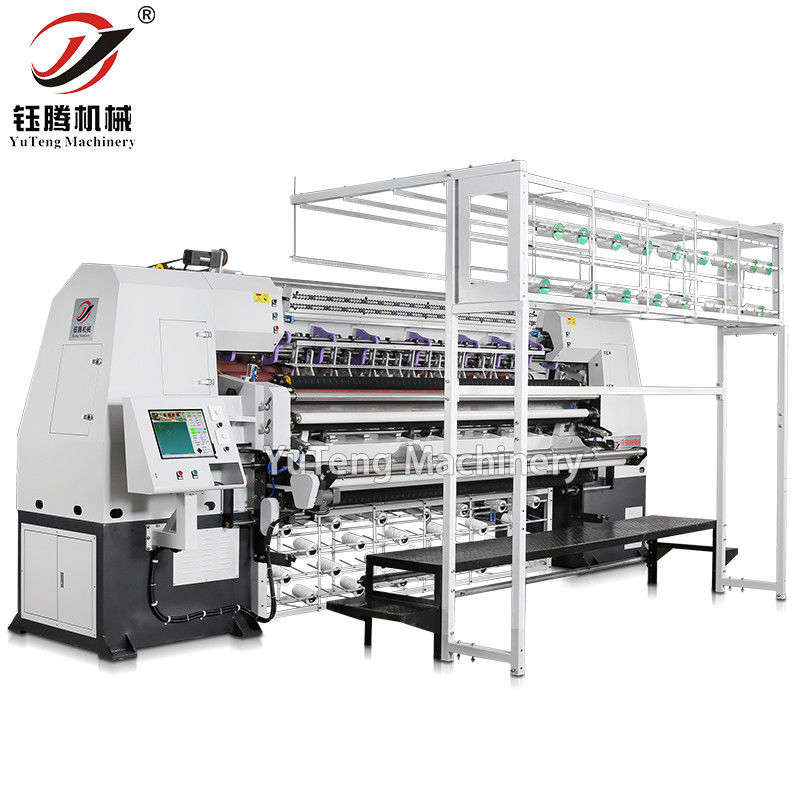

Side

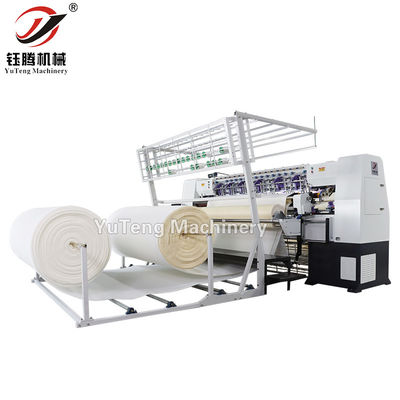

Back
Product Introduction:
The multi-needle quilting machine can be used for make a variety of patterns. It is suitable for bedding production plants, mattress production plants and other bedding production plants. The multi-needle quilting machine is composed of a display screen, a threading area, a cloth rack, a thread rack, and a sponge rack.
Special Features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Machine Technical Parameters:
| Model | YT-3000A | Stitch length | 1-12mm |
| Dimension(L * W * H) | 5000*1600*2300mm | Production speed (m/h) | 60-230(m/hour) |
| Quilting width | 2450mm | Needle model | 21#,22#,23#,24# |
| Number of needle rows | 3 | Quilting speed | 100-1000(r/min) |
| Space between needle rows | 3"+2";3"+3" | Voltage (AC) | 380V/50Hz / 220V/60Hz |
| Space between needle | 25.4mm | Power | 8Kw |
| X-Trip | 305mm | Weight | 5500Kg |
| Quilting thickness | ≤80mm |
Related machines:
Our Certification:
Support and Services:
1. 24-hour communication service
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
Packing and Shipping:
Usually install waterproof membrane and paper board to reduce dust and water pollution.
FAQ:
Q1 Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
Q2 Do you have English Manual for each machinery?
A:Yes. The instruction manual and other Data Sheets related shall be provided by us.
Q3 Can I print my Logo on the machine?
A:Yes, sure. We can provide professional customized logo services for customers.
Q4 Can you customize the machine for me?
A: Yes, we can customize according to customer's requirements.
Q5 Which ports do you usually ship at?
A: We can load container at: Shenzhen.
