Lock Stitch Automatic Quilting Machine With Multi Needle Home Textile Fabric Quilting
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB96 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Home Textile Factory | Condition: | New |
|---|---|---|---|
| Warranty: | One Year | Max Quilting Speed: | 1000RPM |
| Max Quilting Thickness: | 2.5CM | Sewing Width: | 2.45M |
| Gross Weight: | 4600KG | Dimension(L*W*H): | 480*120*180CM |
| Highlight: | Lock Stitch Automatic Quilting Machine,Home Textile multi needle quilting machine,Lock Stitch multi needle quilting machine |
||
Product Description

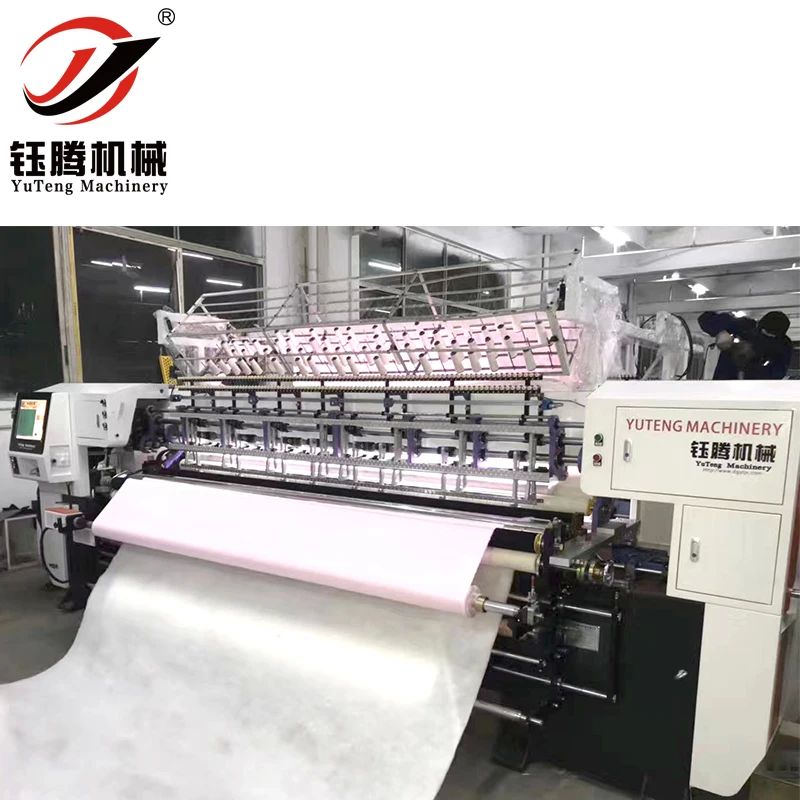

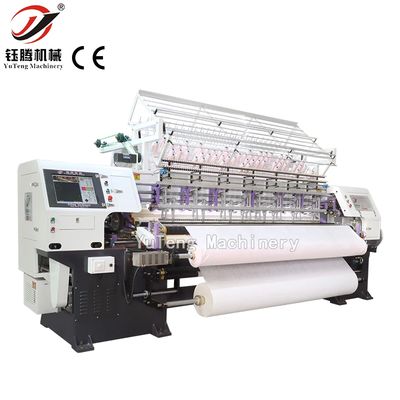

Computerized shuttle (lock stitch) multi-needle quilting machine
Product Description:
The machines are widely used in quilting garments, handbags, quilts, bedspreads and various cushions.
Specification:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) | ||||||
| •Dimension(L * W * H) | •4800mm*1200mm*1800mm | •4800mm*1200mm*1800mm | ||||||
| •Quilting width | •2450mm | •2450mm | ||||||
| •Number of needle rows | •2 | •3 | ||||||
| •Space between needle rows | •3" Inch | •3"+1”/1.5”/2”/3”Inch | ||||||
| •Space between needle | •25.4mm | •25.4mm | ||||||
| •X-Trip | •228.6mm | •228.6mm | ||||||
| •Quilting thickness | •≤25mm | •≤25mm | ||||||
| •Stitch length | •2-12mm | •2-12mm | ||||||
| •Production speed (m/h) | •20-160 (m/h) | •20-160 (m/h) | ||||||
| •Shuttle model | •7#,10# | •7#,10# | ||||||
| •Needle model | •14#,16#,19# | •14#, 16#,19# | ||||||
| •Quilting speed | •100-1000 (rpm) | •100-1000 (rpm) | ||||||
| •Voltage (AC) | •380V/50HZ , 220V/60HZ, 3-Phase | •380V/50HZ , 220V/60HZ, 3-Phase | ||||||
| •Power | •5.5KW | •5.5KW | ||||||
| •Weight | •4600KG | •4600KG |
* Can be customized according to customer requirements
Special Feature:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment(Panasonic and others can be choosen) , Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Packing & Delivery:
The normal package is PE film & paper board packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
Our Services:
1. Warrany: One year.(All parts are guaranteed one year for non-human-made damage)
2.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
3.Customized Model are available to meet client's various needs.
