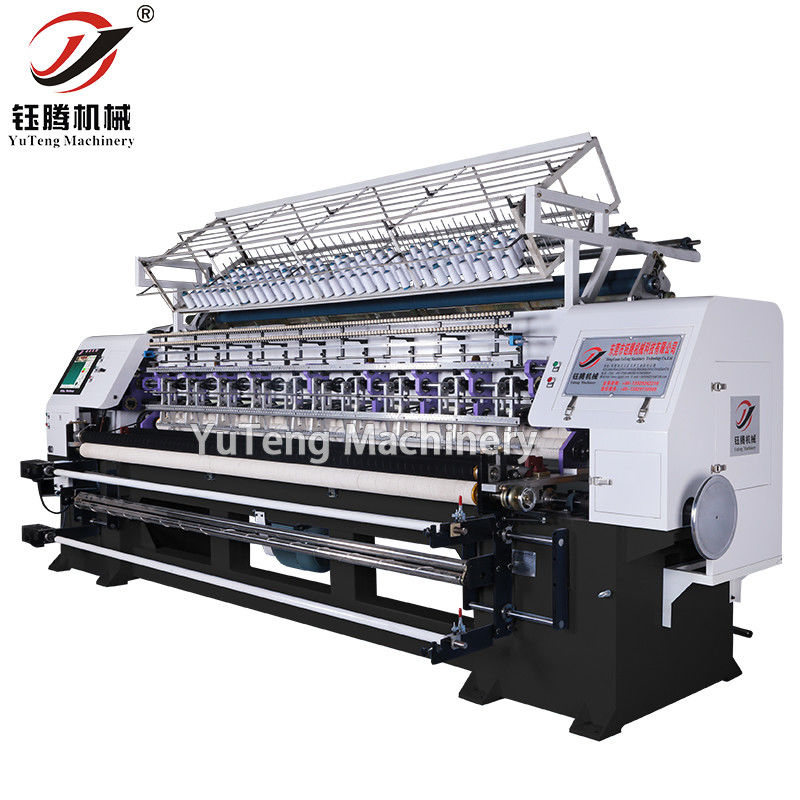

128 Inch High Speed Multi Needle Comforter Lock Stitch Quilting Machine Automated
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 27000-40000 USD/SET |
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Home Textile Factory | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Core Components: | Motor |
| Quilting Width: | 128 Inches /3300mm | Max Sewing Thickness: | 25mm |
| Weight: | 5300KGS | Place Of Origin: | Guangdong, China |
| Highlight: | 128 Inch automated quilting machine,High Speed computerized quilting system,multi needle quilting machine Automated |
||
Product Description
128 Inches High-Speed Computerized Lock Stitch Multi-Needle Quilting Machine
Product Description:
It is widely used for quilting:clothing, bedding items, hats, handbags, sleeping bags, nightgowns, and household decorations
Specification:
| Model | YGB128-2-3 | YGB128-3-6 |
| Dimension(L*W*H) | 5700*1200*1800(mm) | 5700*1200*1800(mm) |
| Quilting Width | 3300mm | 3300mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3” inch | 3”+3” inch |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P |
| Total power | 7.5KW | 7.5KW |
| Gross weight | 5300kg | 5300kg |
* Can be customized according to customer requirements
Function:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Support And Service:
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*warranty: 1 year
Certifications:
Packing And Shipping:
The normal package is PE film & paper board packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
Do not hesitate to contact us - we will be happy to assist and advise you.
