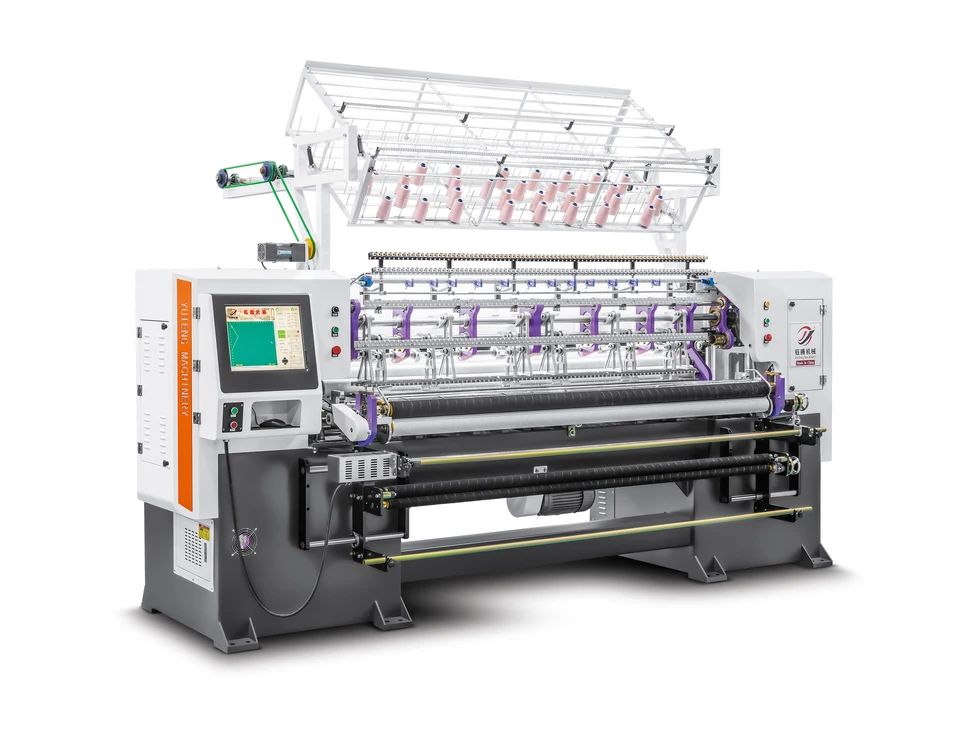

80 Inches Ultra High Speed Computerized Shuttle Multi Needle Quilting Machine For Garments Textile Fabric
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGH64 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | FOB 20000-50000 USD/SET |
| Packaging Details: | plastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Place Of Origin: | China |
|---|---|---|---|
| Overall Dimensions: | 3900*1400*1800mm | Quilting Width: | 2000mm |
| Max. Sewing Thickness: | 25mm | Stitch Length: | 2-12mm |
| Port: | Shengzhen，Guangdong | Warranty: | 1 Year |
| Highlight: | 80 Inches Quilting Machine,Computerized Shuttle Quilting Machine,Textile Fabric Quilting Machine |
||
Product Description
Computerized Multi Needle Lock Stitch Quilting Machine
Purpose:
This machine is used for quilting pajamas,winter jackets,hometextile,shoes,carpets,bags,
gloves,pillow covers etc.Different work width can be chosen.
Machine Function:
1.Comprehensively upgrade and strengthen each transmission structure to truly realize high-speed operation and stable production.
2.The external computer control system can effectively reduce the adverse effects of high-speed operation on the electronic control.
3. The computer can adjust the speed of 100-1400 rpm, and the stitch adjustment is 2-12mm.
4. The speed, stitch and various pattern compensation functions can be adjusted arbitrarily during the operation of the equipment.
5. The system is equipped with a "return” function to solve the work of missing quilting and stitching between processing and changing shuttles.
6. The needle row movement adopts servo drive mode, and the spindle adopts frequency conversion control.
7. Dual clutch device, to solve the synchronization problem of rollers in front and back.
8. 360 degree free quilting come with unlimited multi-span quilting independent patterns.
9. Automatic thread-break detection unit. Infrared sensor make sure more safety operation.
Technical Parameters:
| Model | YGH80-2-3(S/B) | YGH80-3-4/4.5/5/6(S/B) |
| Dimension(L*W*H) | 3900mm*1400mm*1800mm | 3900mm*1400mm*1800mm |
| Quilting Width | 2000mm | 2000mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3"(inch) | 3"+1"/1.5"/2"/3"(inch) |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 152.4mm | 152.4mm |
| Thickness of quilting | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-200 | 20-200 |
| Model of needle | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1400 | 100-1400 |
| Voltage(AC) | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase |
| Total power | 4.5KW | 4.5KW |
| Gross weight | 4500KG | 4500KG |
*Can be customized according to customer requirements
Company Profile:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
Certification:
Support and Services:
1.24-hour Customer Support Hotline
2.Remote diagnostic and troubleshooting services
3.Software and firmware upgrades
4.Training courses and materials for machine operators
5.Spare parts supply
FAQ:
Q1: What is the Brand Name of the Computerized Quilting Machine?
A1: The Brand Name of the Computerized Quilting Machine is YuTeng.
Q2: Where is the Computerized Quilting Machine made?
A3: The Computerized Quilting Machine is made in China.
Q3: Does the Computerized Quilting Machine have CE certification?
A4: Yes, the Computerized Quilting Machine has CE certification.
Q4: What is the minimum order quantity for the Computerized Quilting Machine?
A5: The minimum order quantity for the Computerized Quilting Machine is 1 piece.
