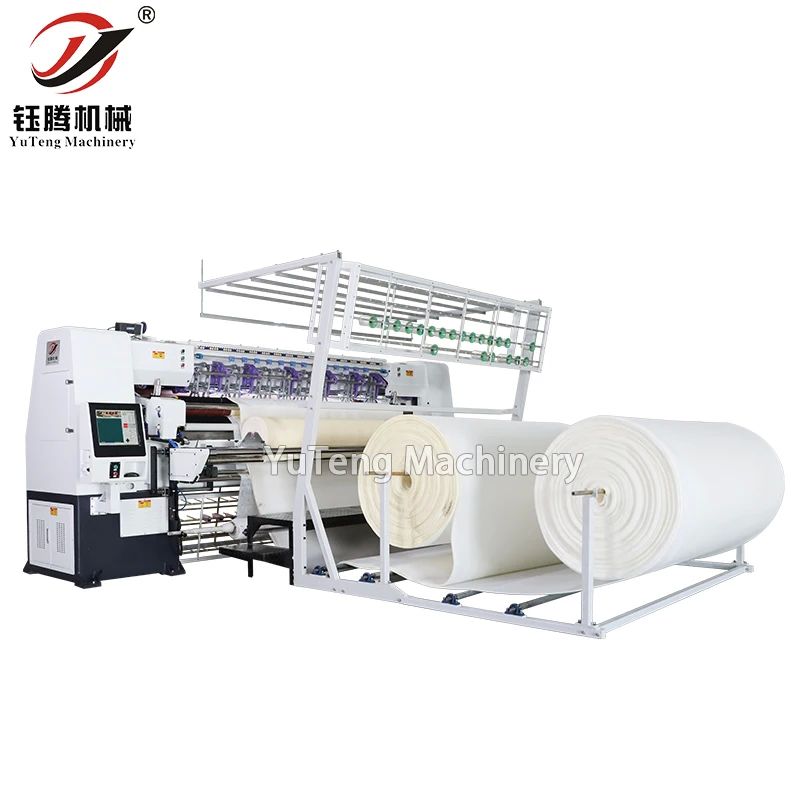

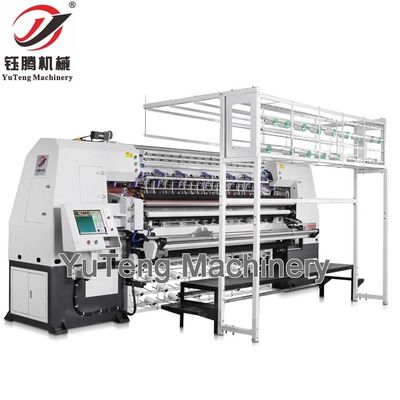

Computerized High Speed Non-Shuttle Multi-Needle Mattress Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 10000-60000 USD/SET |
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Mattress/ Home Textile Manufacturer | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Condition: | New | Quilting Width: | 2450mm |
| Quilting Thickness: | Max 8cm | Quilting Speed: | 100-1000rpm |
| Core Components: | Motor | Stitch: | 1-12 MM |
| Highlight: | Multi-Needle Mattress Making Machine,Computerized Mattress Making Machine,Non-Shuttle Mattress Making Machine |
||
Product Description
Computerized non-shuttle chain stitch multi needle mattress quilting machine
Product Description:
It is mainly used for quilting advanced mattress,carpet,cushion etc.
Special Features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Important Parameters:
|
Model |
YT-3000A |
|
Dimension(L*W*H) |
5000mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+3" |
|
Space between needle |
25.4mm |
|
X-axis trip |
305mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-230(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
100-1000(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ 3-Phase |
|
Total power |
8KW |
|
Gross weight |
5500kg |
Customized model are available to meet client’s various needs.
Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Our Services:
Guarantee: 1 year
Engineers available to service machinery overseas.
Customer staff can come our factory for training for free.
Packing&Shipping:
All the machine are packed in elastic film or wooden case as required before shipping.
FAQ:
Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
Payment terms: TT:30% in advance, 70% was paid off before delivery.
