Lock Stitch Multiple Needle Sewing Quilting Machine For Mattress And and Blankets Quilt Home Textile
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB96 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 25000-40000 USD/SET |
| Packaging Details: | film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Mattress | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Warranty Of Core Components: | 1 Year | Thickness Of Quilting: | ≤25mm |
| Shuttle Model: | 7#/10# | Production Speed: | 20-160(m/hour) |
| Max Quilting Speed: | 1000rpm | Machine Weight: | 4600Kg |
| Quilt Width: | 2450mm | ||
| Highlight: | Multiple Needle Lock Stitch Quilting Machine,Mattress Lock Stitch Quilting Machine,Home Textile Lock Stitch Quilting Machine |
||
Product Description

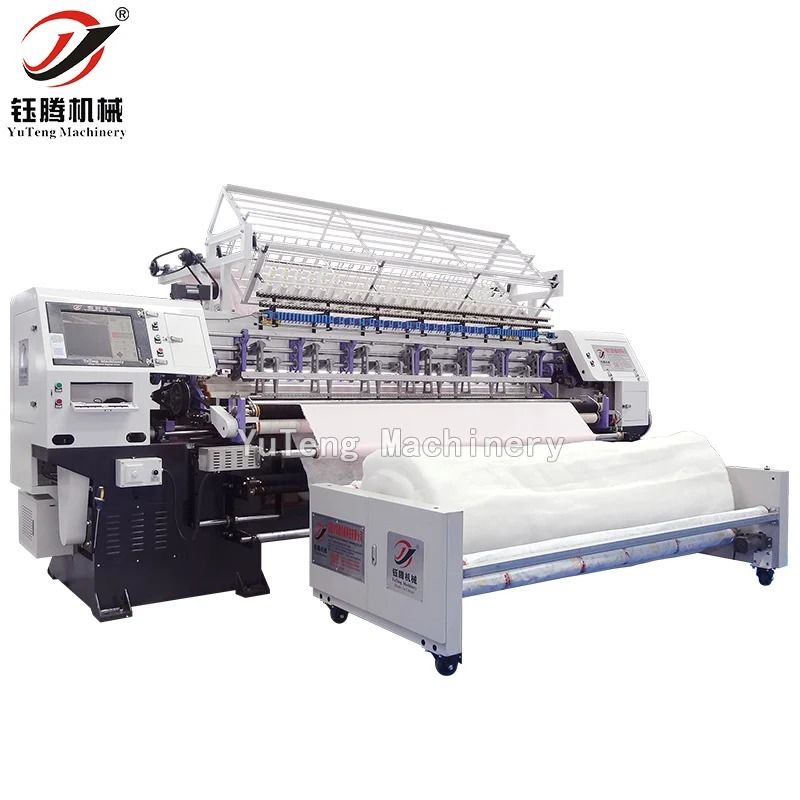

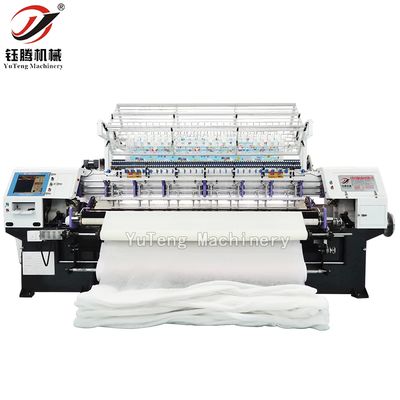

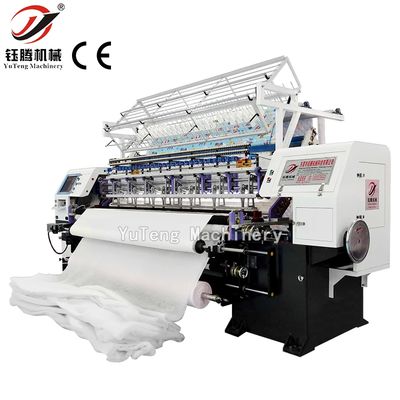

Computerized Lock Stitch Multi-Needle Quilting Machine
Product Description:
It is widely used for quilting high-quality garments,quilt covers,hand bags,gloves,sleeping bags,pajamas,bed spreads,seat covers,plus material and household ornaments.
Machine Function:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Parameter:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) | ||||||
| Dimension(L * W * H) | 4800mm*1200mm*1800mm | 4800mm*1200mm*1800mm | ||||||
| Quilting width | 2450mm | 2450mm | ||||||
| Number of needle rows | 2 | 3 | ||||||
| Space between needle rows | 3" Inch | 3"+1”/1.5”/2”/3”Inch | ||||||
| Space between needle | 25.4mm | 25.4mm | ||||||
| X-Trip | 254mm | 228.6mm | ||||||
| Quilting thickness | ≤25mm | ≤25mm | ||||||
| Stitch length | 2-12mm | 2-12mm | ||||||
| Production speed (m/h) | 20-160 (m/h) | 20-160 (m/h) | ||||||
| Shuttle model | 7#,10# | 7#,10# | ||||||
| Needle model | 14#,16#,19# | 14#, 16#,19# | ||||||
| Quilting speed | 100-1000 (rpm) | 100-1000 (rpm) | ||||||
| Voltage (AC) | 380V/50HZ , 220V/60HZ, 3-Phase | 380V/50HZ , 220V/60HZ, 3-Phase | ||||||
| Power | 5.5KW | 5.5KW | ||||||
| Weight | 4600KG | 4600KG |
*Customized model are available to meet client’s various needs.
Pattern Display:
After Sales Services:
Providing machine installation video and technologies 24 hours online service,guiding clients to finish the installation,solving the following problems during using.
Freight:
FAQ:
1.Q:What's your warranty period?
A:Our warranty period is one year
2.Q:Whether you could make our brand on your products?
A:Yes. We can print your Logo on both the products and the packages.
3. Q:Whether you could make your products by our color?
A:Yes, The color of products can be customized.
4.Q:How to guarantee the quality of your machine?
A:1) Strict detection during production.
2) Strict inspection on finished machines before shipment and intact machine packaging
