Automatic Computerized Panel Cutting For Mattress Fabric Quilting
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Model Number: | YTCM96-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | plastic film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machine Weight: | 600KGS | Warranty: | 1 Year |
| Voltage: | 220V/380V，3-Phase | Power: | 1.8kw |
| Dimension(L*W*H): | 335*85*180cm | Output: | Vertical Cut 10m/min，horizontal Cut 5s/cut |
| Highlight: | Automatic Computerized panel cutting,Mattress Fabric Quilting Computerized Panel Cutting |
||
Product Description

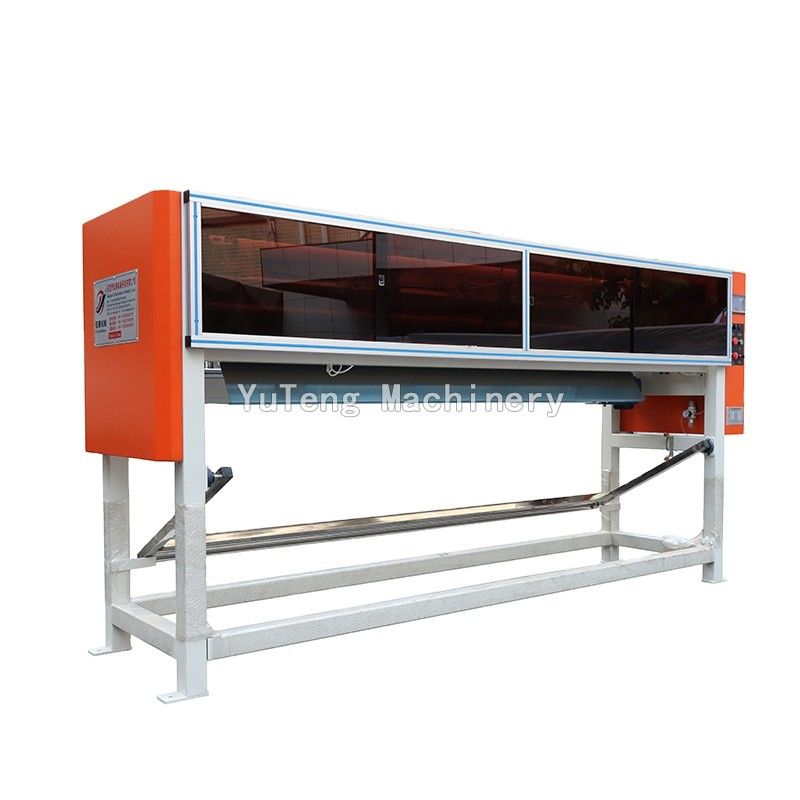

Mattress panel cutting machine
Product Purpose:
Computerized Fabric Cutting Machine mainly used for cross-cuting,slitting and edge trimming the quilted fabric,and usually works in tandem with the quilting machine and rolling device,but it can also run alone.
Special Features:
1,5”touch screen, large screen for ease of operation

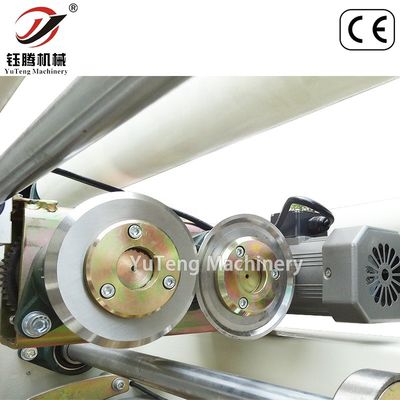

2,Hidden slitting blades are more convenient and safer
3,Electric controls for length and width of cross cut which make operations more human

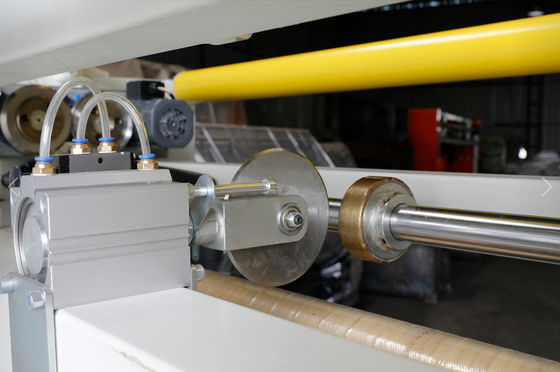

4,Feed-in top with article points for pressure roller. The pressure will be even, and feeding will be leveling off. The slitting cut will be more smooth, especially for the edge trimming of thinner material
5,Y-dimension with encoder for counting length. It can cut materials length Use the conveyor belt mechanical discharge. It will be convenient to fold material and save artificial.
Technical Parameters:
| Model | YTCM96-C |
| Machine size(L*W*H) | 3350*850*1800(mm) |
| Cutting width | 2400mm(can be customized) |
| Cutting length | Min 30cm-Infinite |
| Cutting speed | Vertical cut 10m/minute,horizontal cut 5 s/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage | 380V/50HZ,220V/60HZ, 3-Phase |
Services:
Inquiry and consulting support.
View our Factory.
Guarantee: 1 year
Packing and Shipping:
All our machines are packed in plastic film or wooden case as required before shipping.
Company information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
