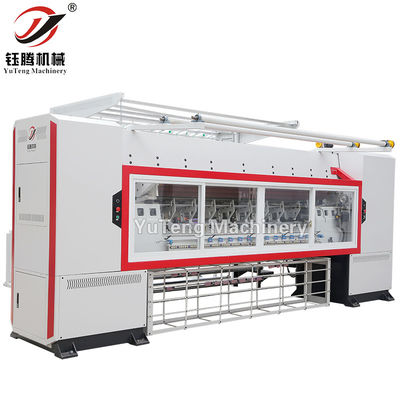

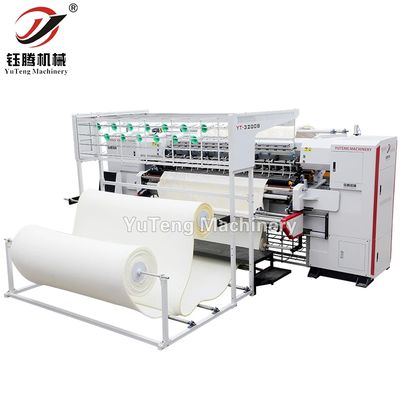

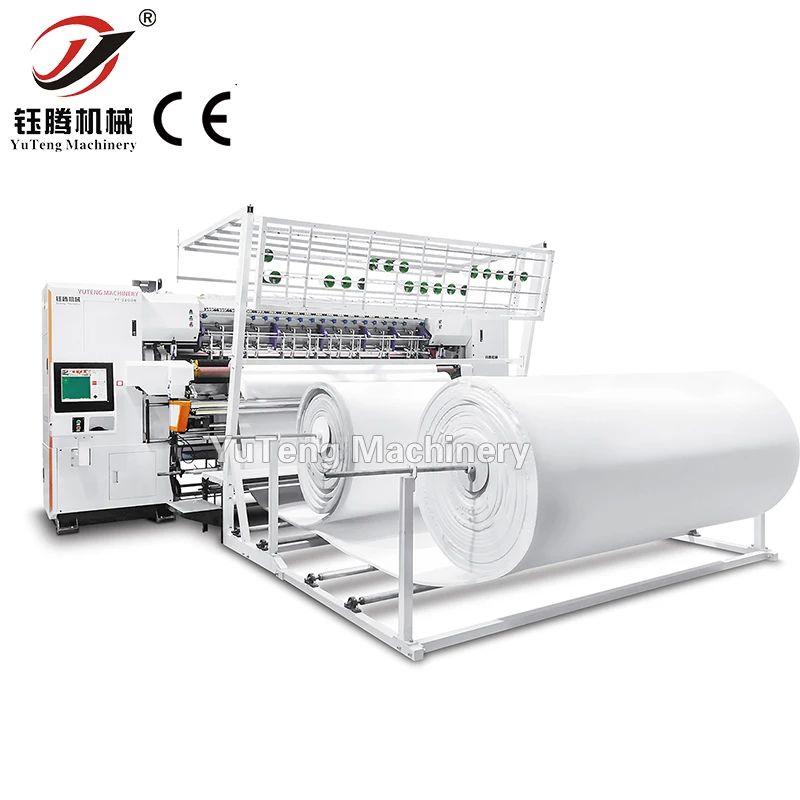

High Speed Industrial Shuttleless Sewing Machine For Quilt Mattress Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Quilting Width: | 2450mm |
|---|---|---|---|
| Needle Rows: | 3 | Space Between Needle Rows: | 3"+2"/3"+3" |
| Max Sewing Thickness: | 80mm | Max Sewing Speed: | 1200r/min |
| Production Speed: | 60-260m/h | Voltage: | 220V/380V |
| Power: | 8KW | Gross Weight: | 5500KGS |
| Needle Type: | 21#-24# | ||
| Highlight: | Industrial Shuttleless Sewing Machine,Quilt Mattress Panel Sewing Machine,High Speed Industrial Shuttleless Sewing Machine |
||
Product Description
YT-3200B High Speed Computerized Chain Stitch Multi-Needle Quilting Machine
Product Description:
Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more.
Main Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Specification:
|
Model |
YT-3200B |
|
Dimension(L*W*H) |
5050mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2"; 3"+3" |
|
Space between needle |
25.4mm |
|
X-axis movement displacement |
305mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-260(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
100-1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
8KW |
|
Gross weight |
5500KG |
Support and Services:
Inquiry and consulting support.
View our Factory.
Training how to instal the machine, training how to use the machine.
warranty: 1 year
Customized Model are available to meet client's various needs.
Payment Term:
T/T 30% deposit in advance, 70% balance before shipment.
Company Information:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
