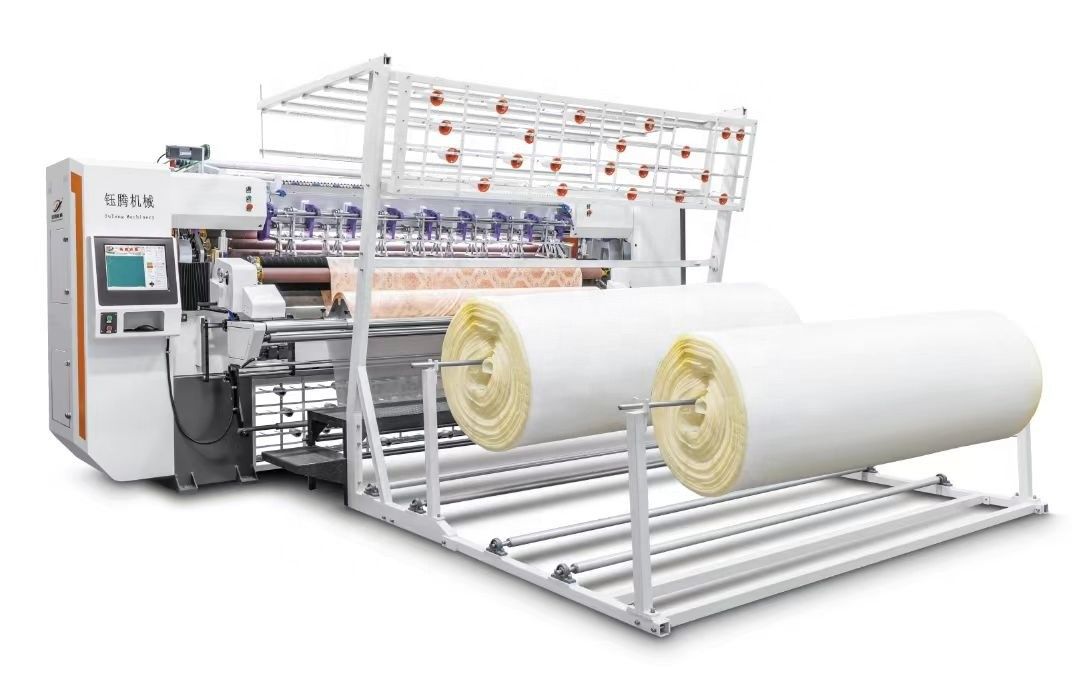

Industrial Ultra High Speed Non Shuttle Multi Needle Quilting Machine For Making Mattress
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT3500A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|
|
Detail Information |
|||
| Condition: | New | Needle: | Multi-needle |
|---|---|---|---|
| Space Between Needles: | 25.4mm/12.7mm | Thickness Of Quilting: | ≤80mm |
| Stitch Length: | 2-12mm | Dimension: | 5200*1600*2300mm |
| Production Speed: | 110-330m/hour | Power: | 8KW |
| Weight: | 5000KGS | ||
| Highlight: | Mattress Quilting Machine,Non-Shuttle Multi Needle Quilting Machine,Industrial Ultra High-Speed Quilting Machine |
||
Product Description
Ultra High-Speed Computerized Chain Stitch Multi-Needle Quilting Machine
Product Description:
Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more
Special Features:
• The unique oil bag oil supply lubrication design system greatly improves the service lite of the anti-wear sheet and reduces the daily maintenance cycle (Patented structure).
• The wear-resistant sheet made of special metal material makes the connection between the paddle holder and the pallet holder smoother and more wear-resistant.
• New aluminum alloy bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
• The unique 12.7mm needle distance design and the addition of a slitting structure with a cutter can simultaneously produce the function of mattress edging.
Technical Parameters:
|
Model |
YT-3500A |
|
Dimension(L*W*H) |
5200mm*1600mm*2300mm |
|
Quilting Width |
2450mm |
|
Needle rows |
3 |
|
Space between needle rows |
3"+2"; 3"+3" |
|
Space between needle |
25.4mm/12.7mm |
|
X-axis movement displacement |
305mm |
|
Thickness of quilting |
≤80mm |
|
Stitch length |
1-12mm |
|
Speed of operation(m/hour) |
60-230(m/hour) |
|
Model of needle |
21#,22#,23#,24# |
|
Quilting Speed(r/min) |
1200(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
8KW |
|
Gross weight |
5200KG |
Company Information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Our Certificate:
Support and Services:
Inquiry and consulting support.
View our Factory.
Training how to instal the machine, training how to use the machine.
warranty: 1 year
Packing and Shipping:
The normal package is PE film & paper board packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
