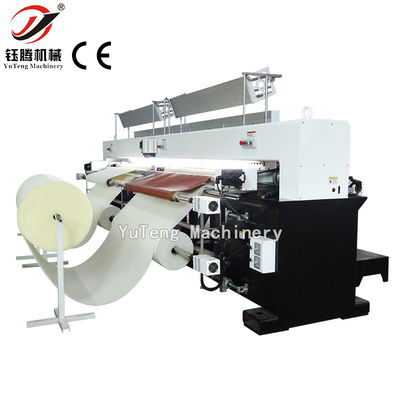

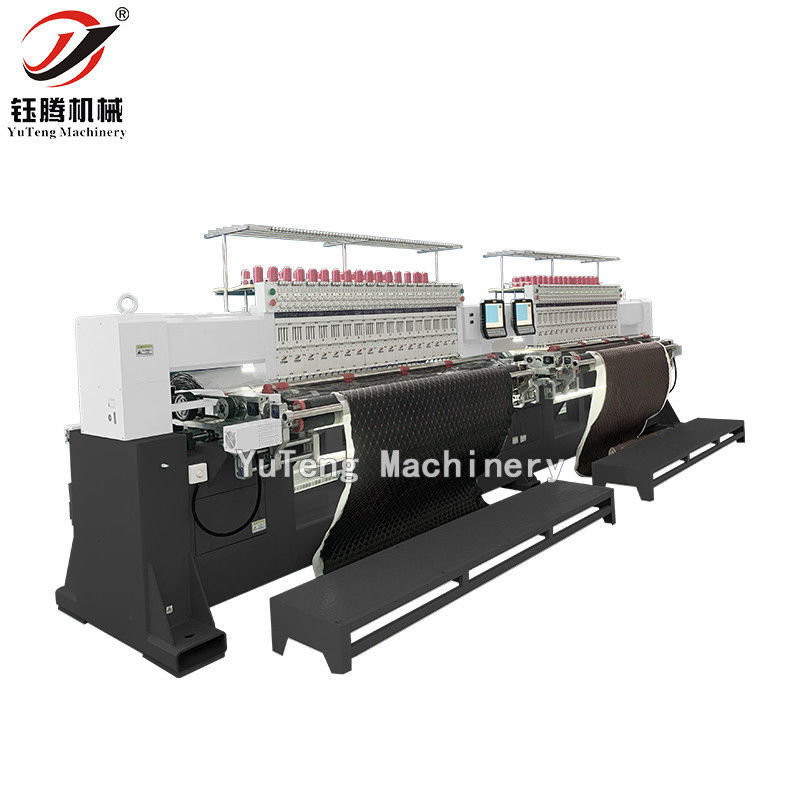

Medium Computerized Quilting And Embroidery Machine With High Speed Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Model Number: | YT Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | FOB 28000-40000 USD/SET |
| Packaging Details: | plastic film&wooden case |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Computerized Quilting And Embroidery Machine | Dimension（L*W*H））: | 5300*1500*2100mm |
|---|---|---|---|
| Quilting Width: | 3300mm | Needle/Head: | 2 |
| Heads: | 33/25 | Quilting Speed（rpm）: | 100-1000 |
| Voltage（AC））: | 380V/220V,3-Phase | Warranty: | 1 Year |
| Highlight: | High Speed Quilting Embroidery Machine,Medium Computerized Quilting Embroidery Machine |
||
Product Description
High-speed computerized quilting and embroidery machine
Product Description:
An industrial quilting and embroidery machine is a high-capacity, robust machine designed for commercial or large-scale production environments. These machines are built to handle heavy usage and can work with a wide variety of fabrics and materials.
One of the standout features of this machine is its excellent stitch quality. With precise stitching and smooth movement, you can achieve flawless embroidery and quilting every time. The machine is capable of handling a variety of fabrics.
This industrial quilting machine computerized capability means that you can save time and increase productivity. With advanced automation features, you can easily set up the machine to run multiple designs at once, allowing you to complete large projects quickly and efficiently.
Features:
1.Function of quilting and embroidering simultaneously.
2. Strong machine body design brings more stable quilting performance.
3. X, Y, Z axis controlled by servo driving system.
4. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
5. Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
6. Infrared sensor makes the operation more secure.
7. Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running.
8. Auto-return for patch-up embroidery function.
9. More than 200 patterns available were stored in machine.
Technical Parameters:
| Model | YT-1330H | YT-1250H |
| Dimension(L*W*H) | 5300×1500×2100mm | 5300×1500×2100mm |
| Quilting width(mm) | 3300mm | 3300mm |
| Needle/Head | 2 | 2 |
| Heads | 33 | 25 |
| Space between needle | 50.8mm | 67.5mm |
| Stitch length | 1mm-12.7mm | 1mm-12.7mm |
| Model of needle | 9#-16# | 9#-16# |
| Quilting speed(rpm) | 100-1000 | 100-1000 |
| Quilting speed(rpm) | 380V/50HZ ,220V/60HZ,3-Phase | 380V/50HZ ,220V/60HZ,3-Phase |
| Voltage(AC) | 5.5KW | 5.5KW |
| Gross weight | 3500KGS | 3500KGS |
Applications:
An industrial quilting and embroidery machine is a high-capacity, robust machine designed for commercial or large-scale production environments. These machines are built to handle heavy usage and can work with a wide variety of fabrics and materials.
Support and Services:
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
Packing and Shipping:
All the machine are packed in elastic film&paper board or wooden case as required before shipping.
Certification:
