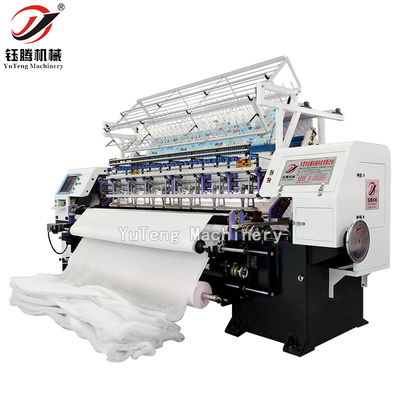

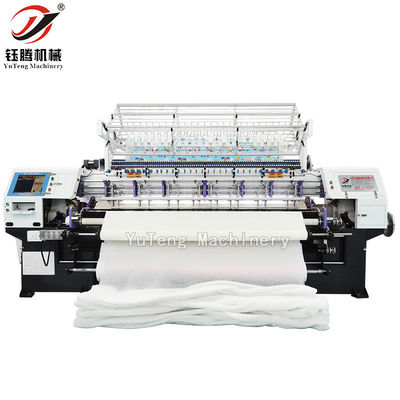

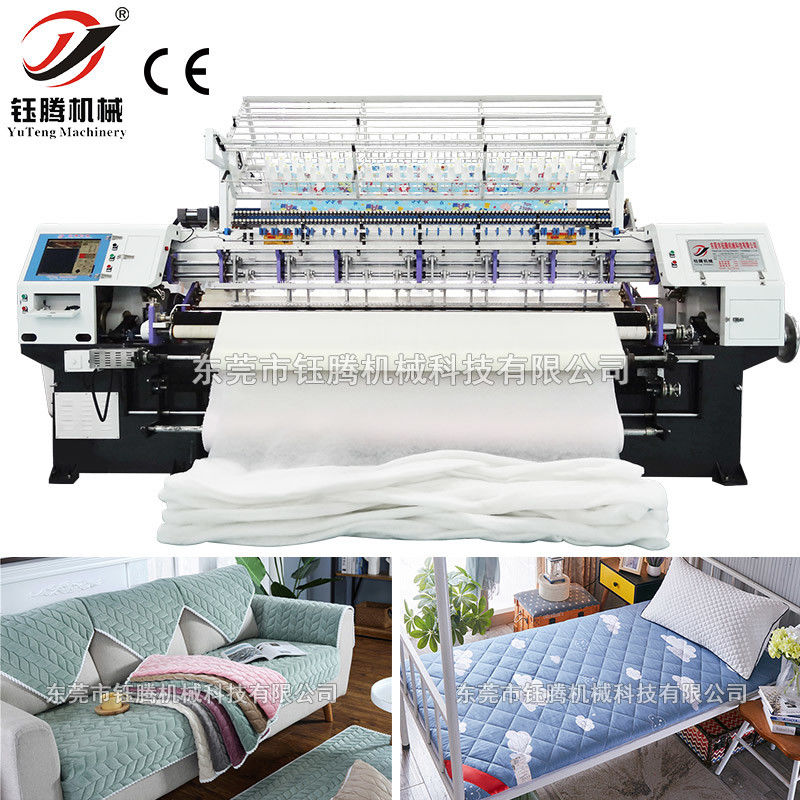

Computerized Heavy Duty Shuttle Sewing Machine For Bedding And Blanket
Basic Properties
Place of Origin:
China
Brand Name:
Yuteng
Certification:
CE
Model Number:
YGB Series
Trading Properties
Minimum Order Quantity:
1SET
Payment Terms:
T/T
Product Summary
High Speed Industrial Quilt Sewing MachineProduct Description:This quilt sewing machine can be used for garments,boots,bags,bedspreads,mattress thin pads, sleeping bags, and related products. The machine can also be used for making quilt.Special Features: 1. Adjusted speed by computer and the speed ...
Product Details
Highlight:
Bedding Shuttle Sewing Machine
,Heavy Duty Shuttle Sewing Machine
,Blanket Shuttle Sewing Machine
Brand Name:
YuTeng
Condition:
New
Belongs To:
Quilt ，bed Cover，blanket Sewing Machine
Space Between Needle:
25.4mm
Power:
5.5KW
Machine Quilting Width:
2450mm
Weight:
4500KG
Needle Model:
16#/19#
Max Sewing Speed:
1000r/min
Work Width:
64", 80", 96", 118",128"
Product Description
High Speed Industrial Quilt Sewing Machine
Product Description:
This quilt sewing machine can be used for garments,boots,bags,bedspreads,mattress thin pads, sleeping bags, and related products. The machine can also be used for making quilt.
Special Features:
1. Adjusted speed by computer and the speed can reach 800r/min2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Technical Parameters:
| Machine model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) | ||||||
| •Dimension(L * W * H) | •4800mm*1200mm*1800mm | •4800mm*1200mm*1800mm | ||||||
| •Quilting width | •2450mm | •2450mm | ||||||
| •Number of needle rows | •2 | •3 | ||||||
| •Space between needle rows | •3" Inch | •3"+1”/1.5”/2”/3”Inch | ||||||
| •Space between needle | •25.4mm | •25.4mm | ||||||
| •X-Trip | •254mm | •304.8mm | ||||||
| •Quilting thickness | •≤25mm | •≤25mm | ||||||
| •Stitch length | •2-12mm | •2-12mm | ||||||
| •Production speed (m/h) | •20-160 (m/h) | •20-160 (m/h) | ||||||
| •Shuttle model | •7#,10# | •7#,10# | ||||||
| •Needle model | •14#,16#,19# | •14#, 16#,19# | ||||||
| •Quilting speed | •100-1000 (rpm) | •100-1000 (rpm) | ||||||
| •Voltage (AC) | •380V/50HZ , 220V/60HZ, 3-Phase | •380V/50HZ , 220V/60HZ, 3-Phase | ||||||
| •Power | •5.5KW | •5.5KW | ||||||
| •Weight | •4500KG | •4500KG |
Pattern display:
Support and Services:
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
Packing:
The quilt sewing machines are packed in elastic film or wooden case as required before shipping.
Certifications:
FAQ:
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
