New Popular Industrial Computer Lock Stitch Shuttle Quilting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE certificate |
| Model Number: | YGC64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | $20,000.00 - $40,000.00（USD） |
| Packaging Details: | paper board&film |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Applicable Industries: | Manufacturing Plant, Mattress/ Home Textile Manufacturer |
|---|---|---|---|
| Brand Name: | YuTeng | Condition: | New |
| Weight: | 3300kg | Needle Model: | 14#/16#/19# |
| Production Speed(m/hour): | 20-160 | Dimension(L*W*H): | 3800*1200*1800mm |
| Application: | Used For Garments，textile Quilting | ||
| Highlight: | 19 Needl Lock Stitch Quilting Machine,Shuttle Lock Stitch Quilting Machine,Industrial Computer Lock Stitch Quilting Machine |
||
Product Description

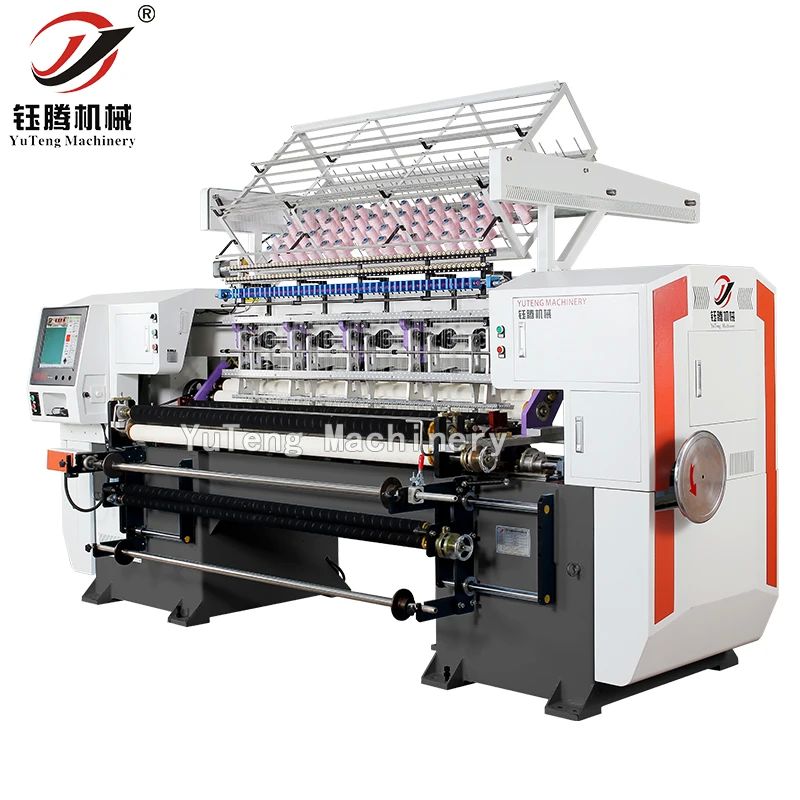

High speed Computerized Shuttle Multi needle Quilting Machine YGC64 Series
Description:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, quilts and Wall decoration etc.
Features:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Technical Parameters:
| Model:YGB64-2-3 |
| Dimension(L*W*H):3800*1200*1800(mm) |
| Quilting Width:1650mm |
| Needle rows:2 |
| Space between needle rows:3'' inch |
| Space between needle:25.4mm |
| X-axis movement displacement:203.2mm |
| Thickness of quilting:≤25mm |
| Stitch length :2-6mm |
| Speed of operation(m/hour):20-160(m/hour) |
| Model of needle:16#,19# |
| Quilting Speed(r/min):100-1000(RPM) |
| Voltage(AC):380V/50HZ,220V/60HZ,3P |
| Total power:3.5KW |
| Gross weight:3300kg |
About us:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Packing and Shipping:
The normal package is PE film & paper board packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
Do not hesitate to contact us - we will be happy to assist and advise you.
