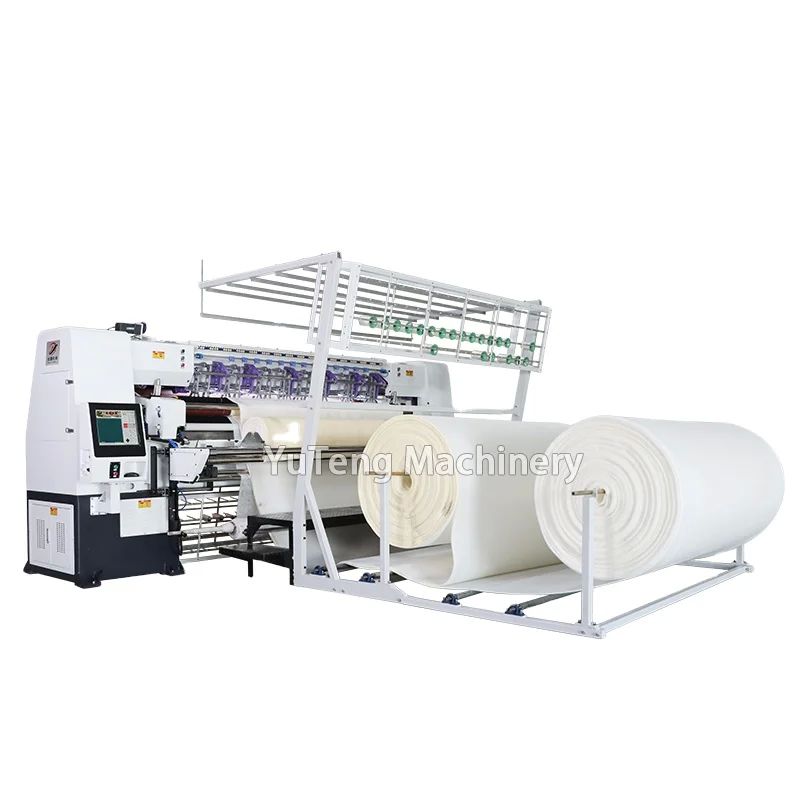

High Speed Industrial Quilt Sewing Machine For Quilt Mattress Bedding
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | paper board&film |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Computerized Non-shuttle Chain Stitch Multi Needle Mattress Quilting Machine | Size: | 5000*1600*2300mm |
|---|---|---|---|
| Thickness Of Quilting: | ≤8cm | Machine Quilting Speed: | 100-1000r/min |
| Production Speed: | 60-230m/m | Voltage: | 220V/380V |
| Stitch Size: | 1-12mm | Total Power: | 8KW |
| Highlight: | Industrial Quilt Sewing Machine,High Speed Industrial Quilt Sewing Machine,Bedding Industrial Quilt Sewing Machine |
||
Product Description

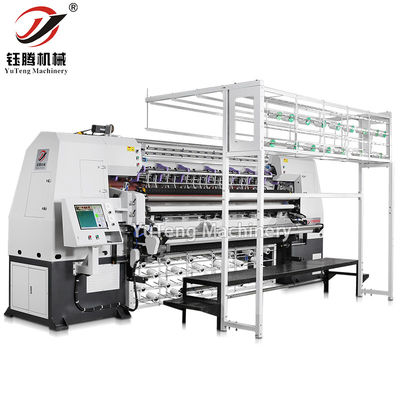

High speed chain stitch multi needle quilting machine
Product Description:
This machine is widely used for making high quality mattresses, quilt covers, and other household ornaments.
Special Features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Technical Parameter:
| Model | YT-3000A |
| Dimension(L*W*H) | 5000mm*1600mm*2300mm |
| Quilting Width | 2.45m |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1000(r/min) |
| Voltage(AC) | 380V/220V,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
Work with other machines(option):
quilting machine+roller machine
Our Service:
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
